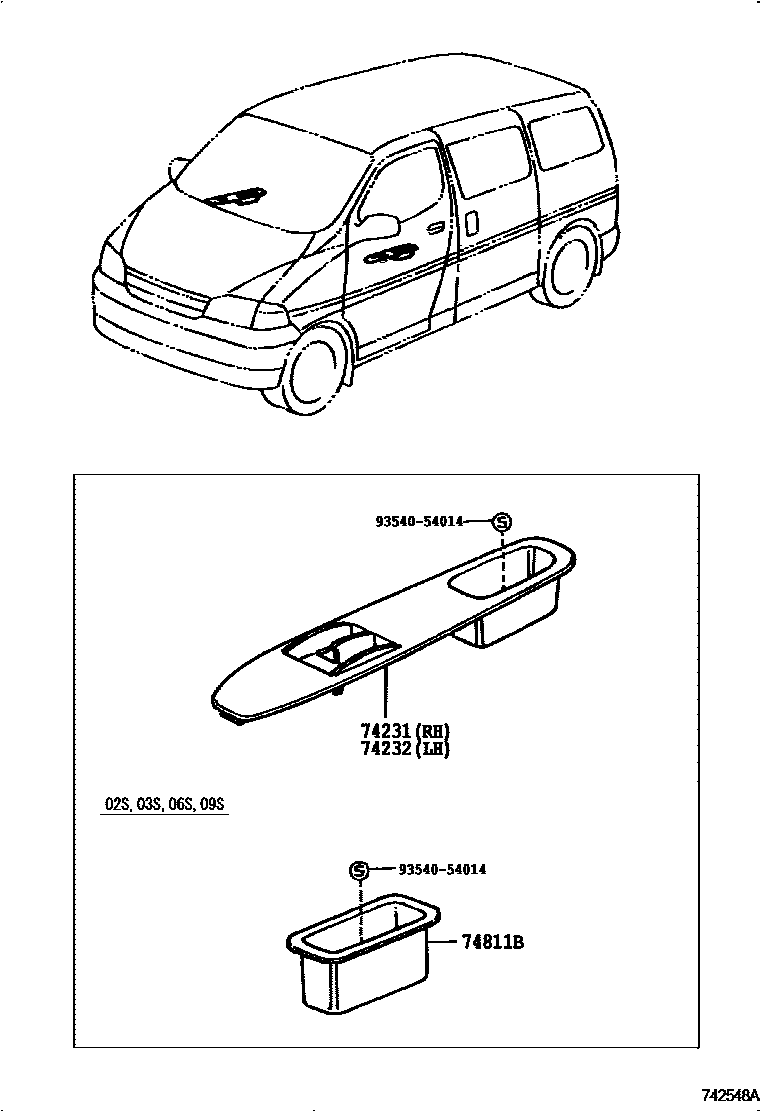

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-26060-B0iLXH12,RCH12..05S199508-200608

SHADOW GRAY,TRIM1#

main74231-26290iKLH1#..SG..(GL,STD)..HDCR200608

main74231-26300iKLH12,22..RHD200808

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-26020-B0iLXH12,RCH13..05S199508-200108

SHADOW GRAY,TRIM1#

main74232-26100-B0iRCH13,19..GL200108-200608

BLUISH GRAY,TRIM1#

main74232-26140iKLH1#..SG..(GL,STD)..HDCR200608

main74232-26150iKLH12,22..RHD200808

74811BHANDLE, DOOR PULL

main74811-95J03-B0iKLH1#,2#..DX,STD199508-201010

BLUISH GRAY,TRIM1#

main74811-95J03-B4iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

9354054014

main93540-54014

4 parts on this diagram · 2 diagrams in section
