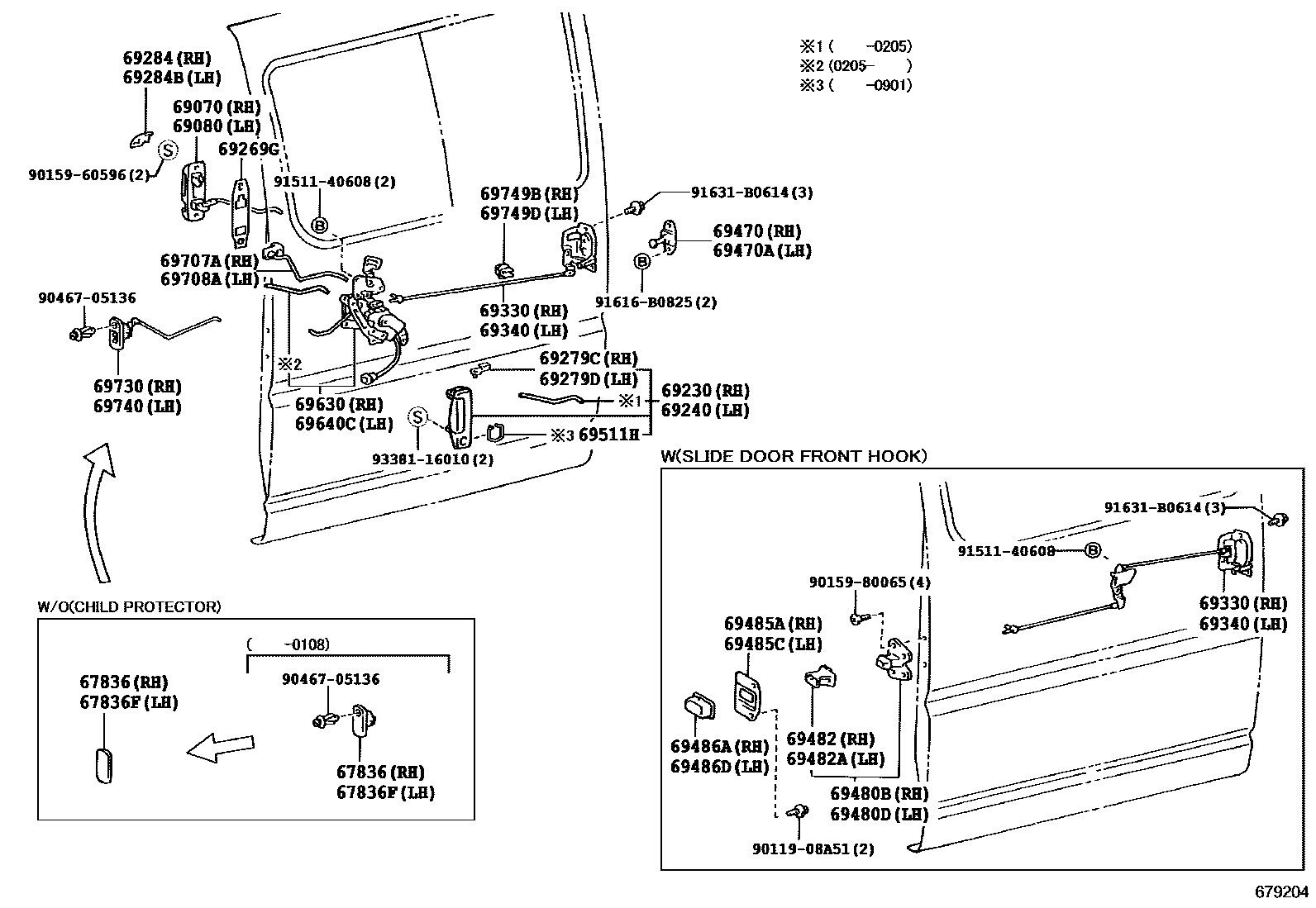

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
main67836-26010iLXH22..5DV;LXH12..RHD..5DV;LXH22..LHD..4DV;LXH1#,28,RCH13,19,23,29..LHD199907-200108
67836FCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH
BLUISH GRAY,TRIM1#
main69070-26010-B2iLXH12..RHD..5DV;KLH12,22,LXH22..5DV;KLH12,22,LXH22..LHD..4DV..(DX,STD);KLH18,28,LXH1#,28,RCH13,19,23,29..LHD..(DX,STD)199907-200608
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#
BLUEISH GRAY,TRIM1#
BLUE GRAY,TRIM1#
SHADOW GRAY,TRIM1#
69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH
BLUISH GRAY,TRIM1#
main69080-26010-B2iLXH12..RHD;LXH22..5DV;LXH22..RHD..4DV;RCH13..ATM..STD;LXH1#,28..LHD..5DV199907-200108
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SILVER ME,199
DK. GREEN M.M.,6P2
DK.BLUE MC.,8K8
NO PAINT REQ.
SILVER ME.,199
SILVER M.M.,1E7
BLACK MC.,209
DK. GREEN M.M.,6P2
DK.GREEN M.M.,6S3
DK.BLUE MC.,8K8
DK.BLUE M.M.,8P4
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69240-26010iRCH13..5DV..MTM;KLH12,22,RCH23..5DV;KLH12,22,RCH13..RHD..4DV;KLH18,28,RCH12,19,22,29..SP199907-200208
BLACK, NO PAINT REQ.
SILVER M.M.,1E7
BLACK MC.,209
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
69269GSEAL, DOOR INSIDE HANDLE
69279CSNAP, SLIDE DOOR INSIDE HANDLE LINK, RH
69279DSNAP, SLIDE DOOR INSIDE HANDLE LINK, LH
69284PLUG, SLIDE DOOR INSIDE HANDLE
BLUISH GRAY,TRIM1#
main69284-95J00-B3×2iLXH12..RHD..5DV;KLH12,22,LXH22..5DV;KLH12,22,LXH22..LHD..4DV..(DX,STD);KLH18,28,LXH1#,28,RCH13,19,23,29..LHD..(DX,STD)199907-200608
SHADOW GRAY,TRIM1#
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
69284BPLUG, SLIDE DOOR INSIDE HANDLE, LH
BLUISH GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69480BHOOK ASSY, SLIDE DOOR FRONT LOCK
69480DHOOK ASSY, SLIDE DOOR FRONT LOCK
69482COVER, SLIDE DOOR FRONT LOCK HOOK
69482ACOVER, SLIDE DOOR FRONT LOCK HOOK
69485ABRACKET, SLIDE DOOR FRONT LOCK STRIKER
69485CBRACKET, SLIDE DOOR FRONT LOCK STRIKER
69486ACOVER, SLIDE DOOR FRONT LOCK STRIKER
69486DCOVER, SLIDE DOOR FRONT LOCK STRIKER
69511HRETAINER, FRONT DOOR LOCK CYLINDER
69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE
main69630-26010iLXH22..5DV;RCH13..ATM;RCH13,19..GL;LXH1#,28..LHD;LXH22..LHD..4DV;LXH12..RHD..5DV199907-200108
W(POWER DOOR LOCK)
W(SLIDE DOOR CHILD PROTECTOR)
W(POWER DOOR LOCK & SLIDE DOOR CHILD PROTECTOR); W(SLIDE DOOR CHILD PROTECTOR)
main69630-26100iKLH12,22..5DV;KLH12,22..LHD..4DV..(DX,STD);KLH18,28,RCH13,19,23,29..LHD..MTM..(DX,STD)199907-200208
W(CHILD PROTECTOR)
W(POWER DOOR LOCK & SLIDE DOOR CHILD PROTECTOR)
W(POWER DOOR LOCK)
W(CHILD PROTECTOR)
W(POWER DOOR LOCK & SLIDE DOOR CHILD PROTECTOR)
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
W(POWER DOOR LOCK)
W(SLIDE DOOR CHILD PROTECTOR)
W(POWER DOOR LOCK & SLIDE DOOR CHILD PROTECTOR)
W(CHILD PROTECTOR)
W(POWER DOOR LOCK & SLIDE DOOR CHILD PROTECTOR)
W(POWER DOOR LOCK)
W(CHILD PROTECTOR)
W(POWER DOOR LOCK & SLIDE DOOR CHILD PROTECTOR)
69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH
BLUISH GRAY,TRIM1#
main69707-26010-B2iRCH13..ATM;LXH22..5DV;LXH12..RHD..5DV;LXH22..LHD..4DV;LXH1#,28..LHD..(DX,STD)199907-200108
SHADOW GRAY,TRIM1#
BLUE GRAY,TRIM1#
SHADOW GRAY,TRIM1#
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH
BLUISH GRAY,TRIM1#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69749BCLAMP, REAR DOOR LOCK LINK
main69749-95J00iLXH12..5DV..03S;LXH22..RHD..5DV;LXH12..LHD..4DV..STD;LXH18,2#,RCH1#,2#..LHD..03S199508-199907
69749DCLAMP, SLIDE DOOR LOCK LINK
9011908A51
main90119-08A51
9015960596
main90159-60596
9015980065
main90159-80065
9046705136
main90467-05136
9151140608
main91511-40608
91616B0825
main91616-B0825
91631B0614
main91631-B0614
9338116010
main93381-16010
40 parts on this diagram · 1 diagram in section
