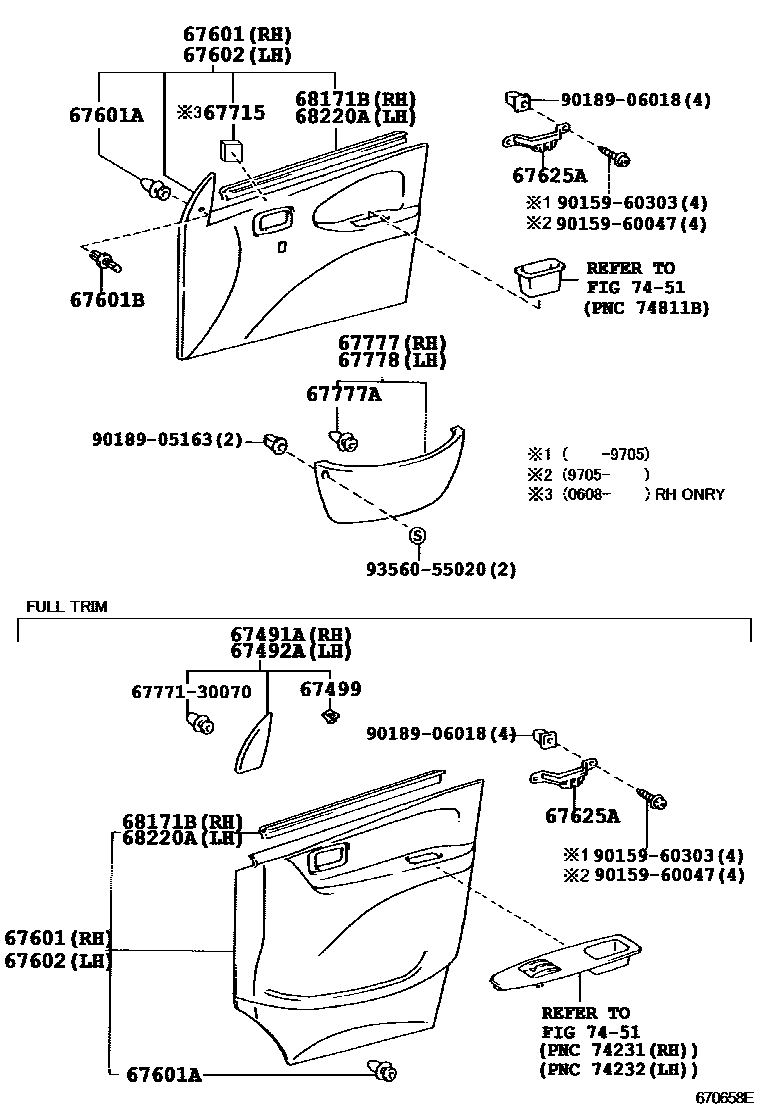

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-26010iKLH12..GL199508-200608

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-26010iLXH12,RCH12,13..05S199508-200608

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-26100iLXH12,RCH12,13..05S199601-200608

RH

main67771-26110iKLH1#..SG..(GL,STD)..HDCR199601-200608

LH

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-26220-B0iLXH12,RCH12,13..05S199508-200310

FULL TRIM,BLUISH GRAY,TRIM1#

main67610-26221-B0iRCH13,19..GL200310-200608

FULL TRIM,BLUISH GRAY,TRIM1#

main67610-26222-B1iKLH1#..GL200608-201010

FULL TRIM,BLUISH GRAY,TRIM1#

main67610-26260-B0iLXH12,RCH13,19..03S,06S,09S;KLH1#,2#,LXH18,2#,RCH12,18,2#..02S,03S,06S,08S,09S199508-200310

BLUISH GRAY,TRIM1#

main67610-26261-B0iRCH13,19,23,29..DX,STD200310-201010

BLUISH GRAY,TRIM1#

main67610-26261-B1iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

main67610-26350-B0iLXH1#,2#,RCH1#,2#..LHD..(03S,06S,09S)199508-200310

W(POWER WINDOW = LOW GRADE),BLUISH GRAY,TRIM1#

main67610-26351-B0iRCH13,19,23,29..LHD..(DX,STD)200310-200808

W(POWER WINDOW = LOW GRADE),BLUISH GRAY,TRIM1#

main67610-26360-B0iLXH12,22,RCH13..RHD199508-200108

W(POWER WINDOW = LOW GRADE),BLUISH GRAY,TRIM1#

main67610-26650-B0iKLH12,22,RCH13..RHD200108-200310

W(POWER DOOR LOCK),BLUISH GRAY,TRIM1#

main67610-26651-B0iRCH12,22200310-200808

W(POWER DOOR LOCK),BLUISH GRAY,TRIM1#

main67610-26660-B0iKLH12,22,RCH13..RHD200108-200310

W(POWER DOOR LOCK & POWER WINDOW = LOW GRADE),BLUISH GRAY,TRIM1#

main67610-26661-B0iKLH12,22..RHD200310-200808

W(POWER DOOR LOCK & POWER WINDOW = LOW GRADE),BLUISH GRAY,TRIM1#

main67610-26710-B0iKLH1#,2#..DX,STD200808-201010

FULL TRIM,BLUISH GRAY,TRIM1#

main67610-26710-B1iKLH1#,2#201010-201111

FULL TRIM,DK.GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-26010iLXH1#,2#,RCH1#,2#..03S,06S,09S199508-199801

main67771-26130iLXH1#,2#,RCH1#,2#..03S,06S,09S199801-199906

main90467-09203iKLH1#,2#200405-200608

BLUE

main90467-09206iKLH12..GL199907-200608

NATURAL

main90467-09206iLXH12,RCH13..05S199906-199910

main90467-09206iKLH18..06S200608-201010

W(FULL TRIM) : REFER TO ILLUSTRATION,NATURAL

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-08176-B0iLXH22..06S;LXH12..RHD..DX;LXH22..RHD..5DV;RCH13,19,2#..03S,06S,09S199508-201010

BLUISH GRAY,TRIM1#

main90467-08176-B2iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-26200-B0iKLH12,RCH13,19..GL199508-200310

FULL TRIM,BLUISH GRAY,TRIM1#

main67620-26201-B0iKLH12..GL200310-200608

FULL TRIM,BLUISH GRAY,TRIM1#

main67620-26202-B1iKLH1#..GL200608-201010

FULL TRIM,BLUISH GRAY,TRIM1#

main67620-26240-B0iRCH13..MTM..(DX,STD);KLH1#,2#,RCH12,19,2#..DX,STD199508-200310

BLUISH GRAY,TRIM1#

main67620-26241-B0iKLH1#,2#..DX,STD200310-201010

BLUISH GRAY,TRIM1#

main67620-26241-B1iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

main67620-26320-B0iLXH1#,2#,RCH1#,2#..LHD..(03S,06S,09S)199508-200108

W(POWER WINDOW = LOW GRADE),BLUISH GRAY,TRIM1#

main67620-26330-B0iLXH12,22,RCH12,13..RHD..EUR199508-200310

W(POWER WINDOW = LOW GRADE),BLUISH GRAY,TRIM1#

main67620-26331-B0iRCH13..RHD200310-200808

W(POWER WINDOW = LOW GRADE),BLUISH GRAY,TRIM1#

main67620-26630-B0iKLH1#,2#,RCH13,19,23,29..LHD..(DX,STD)200108-200310

W(POWER DOOR LOCK),BLUISH GRAY,TRIM1#

main67620-26631-B0iRCH13,19,23,29..LHD..(DX,STD)200310-200808

W(POWER DOOR LOCK),BLUISH GRAY,TRIM1#

main67620-26640-B0iKLH1#,2#,RCH13,19,23,29..LHD..(DX,STD)200108-200310

W(POWER DOOR LOCK & POWER WINDOW = LOW GRADE),BLUISH GRAY,TRIM1#

main67620-26641-B0iKLH1#,2#..LHD..(DX,STD)200310-200808

W(POWER DOOR LOCK & POWER WINDOW = LOW GRADE),BLUISH GRAY,TRIM1#

main67620-26690-B0iKLH1#,2#..DX,STD200808-201010

FULL TRIM,BLUISH GRAY,TRIM1#

main67620-26690-B1iKLH1#,2#201010-201111

FULL TRIM,DK.GRAY,TRIM1#

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-26010iRCH12,22199508-200608

main67625-26020iLXH12,RCH12,13..05S199508-200608

main67625-26020iKLH1#..SG..(GL,STD)..HDCR200608

W(FULL TRIM) : REFER TO ILLUSTRATION

67715PAD, DOOR TRIM, NO.1

main72695-21030iKLH1#,2#..DX,STD200608

67777POCKET, FRONT DOOR TRIM, RH

main67770-26010-B0iLXH12,22,RCH12..RHD199508-200108

BLUISH GRAY,TRIM1#

main67770-26030-B0iKLH18..06S;KLH12,22..RHD200608-201010

BLUISH GRAY,TRIM1#

main67770-26030-B1iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

67777ACLIP, FRONT DOOR POCKET

main67771-26010iLXH1#,2#,RCH1#,2#..03S,06S,09S199508-200808

67778POCKET, FRONT DOOR TRIM, LH

main67770-26010-B0iLXH1#,2#,RCH13,19,23,29..LHD..(DX,STD)199508-200108

BLUISH GRAY,TRIM1#

main67770-26030-B0iRCH13..RHD200108-200608

BLUISH GRAY,TRIM1#

main67770-26040-B0iKLH12,22..RHD200108-201010

BLUISH GRAY,TRIM1#

main67770-26040-B1iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-26010iLXH1#,2#,RCH1#,2#199508-199708

main68171-26030iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199708-200310

main68171-26031iKLH1#,2#200310-201111

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68172-26010iLXH1#,2#,RCH1#,2#199508-199708

main68172-26030iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199708-200310

main68172-26031iRCH12,22200310-201111

7451ARMREST & VISOR

→ Go to FIG 74-51

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9015960047

main90159-60047

9015960303

main90159-60303

9018905163

main90189-05163

9018906018

main90189-06018

9356055020

main93560-55020

21 parts on this diagram · 3 diagrams in section
