FLOOR MAT & SILENCER PAD

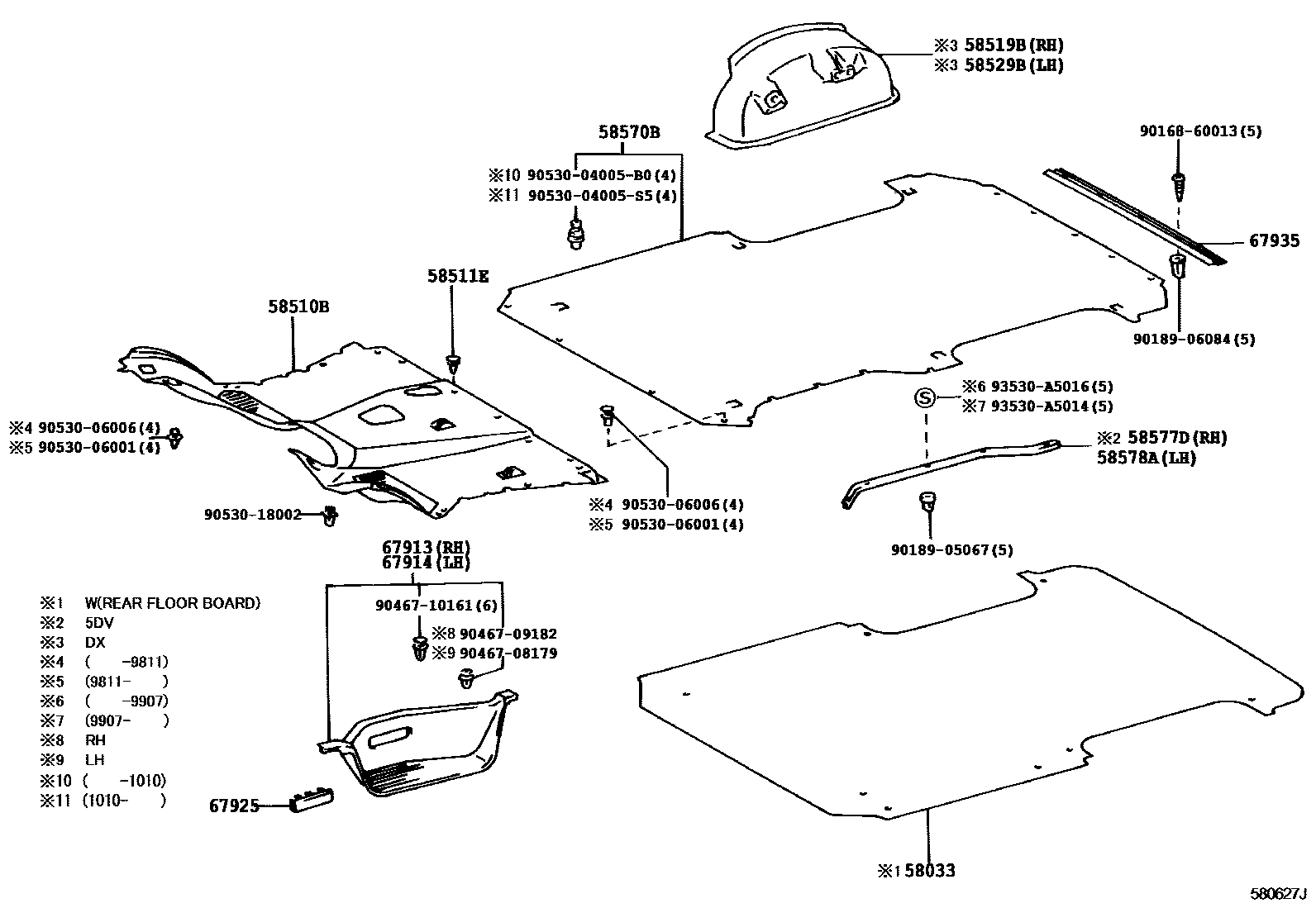

Parts diagram
58033BOARD SUB-ASSY, REAR FLOOR
main58033-26090-B0i199508-199907
BLUISH GRAY,TRIM1#
main58033-26100-B0i199907-200605
BLUISH GRAY,TRIM1#
main58033-26110-B0i200608-200808
BLUISH GRAY,TRIM1#
main58033-26120-B0i199508-199907
NORWAY SPEC OR SWEDEN SPEC,BLUISH GRAY,TRIM1#; NORWAY SPEC,BLUISH GRAY,TRIM1#
main58033-26130-B0i199508-199907
NORWAY SPEC,BLUISH GRAY,TRIM1#
main58033-26170-B0i199907-200605
BLUISH GRAY,TRIM1#
main58033-26180-B0i200608-200808
NORWAY SPEC OR SWEDEN SPEC,BLUISH GRAY,TRIM1#
main58033-26190-B0i199907-200108
BLUISH GRAY,TRIM1#
main58033-26200-B0i199907-200108
NORWAY SPEC OR SWEDEN SPEC,BLUISH GRAY,TRIM1#; NORWAY SPEC,BLUISH GRAY,TRIM1#
main58033-26210-B0i199703-199907
BLUISH GRAY,TRIM1#
main58033-26380-B0i200808-201010
BLUISH GRAY,TRIM1#
main58033-26380-B2i201010-201111
DK.GRAY,TRIM1#
main58033-26390-B0i200808-201010
BLUISH GRAY,TRIM1#
main58033-26390-B2i201010-201111
DK.GRAY,TRIM1#
main58033-26400-B0i200808-201010
BLUISH GRAY,TRIM1#
main58033-26400-B2i201010-201111
DK.GRAY,TRIM1#
main58033-26410-B0i200808-201010
NORWAY SPEC OR SWEDEN SPEC,BLUISH GRAY,TRIM1#
main58033-26410-B2i201010-201111
NORWAY SPEC OR SWEDEN SPEC,DK.GRAY,TRIM1#
main58033-26420-B0i200808-201010
NORWAY SPEC OR SWEDEN SPEC,BLUISH GRAY,TRIM1#
main58033-26420-B2i201010-201111
NORWAY SPEC OR SWEDEN SPEC,DK.GRAY,TRIM1#
main58033-26430-B0i200808-201010
BLUISH GRAY,TRIM1#
main58033-26430-B2i201010-201111
DK.GRAY,TRIM1#
main58033-26440-B0i200808-201010
NORWAY SPEC OR SWEDEN SPEC,BLUISH GRAY,TRIM1#
main58033-26440-B2i201010-201111
NORWAY SPEC OR SWEDEN SPEC,DK.GRAY,TRIM1#
main58033-26450-B0i200808-201010
BLUISH GRAY,TRIM1#
main58033-26450-B2i201010-201111
DK.GRAY,TRIM1#
main58033-26460-B0i200808-201010
NORWAY SPEC OR SWEDEN SPEC,BLUISH GRAY,TRIM1#
main58033-26460-B2i201010-201111
NORWAY SPEC OR SWEDEN SPEC,DK.GRAY,TRIM1#
main58033-26470-B0i200808-201010
BLUISH GRAY,TRIM1#
main58033-26470-B2i201010-201111
DK.GRAY,TRIM1#
58510BMAT, FRONT FLOOR, FRONT
main58500-26020-B0i200108-200308
W(SEPARATE BOARD),GRAY,TRIM1#
main58500-26021-B0i200308-200608
W(SEPARATE BOARD),GRAY,TRIM1#
main58500-26040-B0i200108-200308
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26041-B0i200608-200808
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26050-B0i200108-200308
GRAY,TRIM1#
main58500-26051-B0i200308-200608
GRAY,TRIM1#
main58500-26060-B0i200108-200308
W(SEPARATE BOARD),GRAY,TRIM1#
main58500-26061-B0i200308-200608
W(SEPARATE BOARD),GRAY,TRIM1#
main58500-26070-B0i200108-200308
W(*80),GRAY,TRIM1#
main58500-26071-B0i200608-200808
W(*80),GRAY,TRIM1#
main58500-26080-B0i200108-200308
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26081-B0i200308-200608
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26100-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58500-26101-B0i200308-200608
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58500-26120-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26121-B0i200308-200608
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26130-B0i200108-200308
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58500-26131-B0i200308-200608
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58500-26140-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58500-26141-B0i200308-200608
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58500-26150-B0i200108-200308
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58500-26151-B0i200608-200808
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58500-26160-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26161-B0i200608-200808
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26180-B0i200108-200308
W(SEPARATE BOARD),GRAY,TRIM1#
main58500-26181-B0i200308-200608
W(SEPARATE BOARD),GRAY,TRIM1#
main58500-26200-B0i200108-200308
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26201-B0i200308-200608
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26220-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58500-26221-B0i200308-200608
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58500-26240-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26241-B0i200308-200608
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26250-B0i200108-200308
GRAY,TRIM1#
main58500-26251-B0i200308-200405
GRAY,TRIM1#
main58500-26260-B0i200108-200308
W(*80),GRAY,TRIM1#
main58500-26261-B0i200308-200405
W(*80),GRAY,TRIM1#
main58500-26270-B0i200108-200308
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58500-26271-B0i200308-200608
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58500-26280-B0i200108-200308
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58500-26281-B0i200308-200608
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58500-26290-B0i200108-200308
GRAY,TRIM1#
main58500-26291-B0i200308-200608
GRAY,TRIM1#
main58500-26300-B0i200108-200308
W(*80),GRAY,TRIM1#
main58500-26301-B0i200308-200405
W(*80),GRAY,TRIM1#
main58500-26310-B0i200108-200308
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58500-26311-B0i200308-200608
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58500-26320-B0i200108-200308
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58500-26321-B0i200308-200608
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58500-26450-B0i200108-200308
GRAY,TRIM1#
main58500-26451-B0i200308-200405
GRAY,TRIM1#
main58500-26460-B0i200108-200308
W(SEPARATE BOARD),GRAY,TRIM1#
main58500-26461-B0i200308-200608
W(SEPARATE BOARD),GRAY,TRIM1#
main58500-26470-B0i200108-200308
W(*80),GRAY,TRIM1#
main58500-26471-B0i200308-200608
W(*80),GRAY,TRIM1#
main58500-26480-B0i200108-200308
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26481-B0i200308-200608
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26490-B0i200108-200308
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58500-26491-B0i200308-200608
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58500-26500-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58500-26501-B0i200308-200608
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58500-26510-B0i200108-200308
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58500-26511-B0i200308-200608
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58500-26520-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58500-26521-B0i200308-200608
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-26320-B0i199804-199907
GRAY,TRIM1#
main58510-26321-B0i200108-200308
GRAY,TRIM1#
main58510-26322-B0i200308-200605
GRAY,TRIM1#
main58510-26330-B0i199907-200108
GRAY,TRIM1#
main58510-26350-B0i199804-199907
GRAY,TRIM1#
main58510-26351-B0i200108-200308
GRAY,TRIM1#
main58510-26352-B0i200308-200605
GRAY,TRIM1#
main58510-26440-B0i199508-199708
GRAY,TRIM1#
main58510-26480-B0i199907-200108
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-26481-B0i200108-200308
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-26482-B0i200308-200605
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-26490-B0i199703-199907
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-26510-B0i199907-200108
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-26511-B0i200108-200308
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-26512-B0i200308-200605
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-26550-B0i199508-199804
W(*80),GRAY,TRIM1#
main58510-26560-B0i199508-199804
W(*80),GRAY,TRIM1#
main58510-26580-B0i199608-199804
W(*80),GRAY,TRIM1#
main58510-26590-B0i199907-200108
AUSTRIA,DENMARK,FINLAND,NORWAY OR SWITZERLAND SPEC,GRAY,TRIM1#; DENMARK SPEC OR AUSTRIA SPEC OR NORWAY SPEC,GRAY,TRIM1#; DENMARK SPEC OR AUSTRIA SPEC,GRAY,TRIM1#; HUNGARY SPEC,GRAY,TRIM1#; W(SEPARATE BOARD),GRAY,TRIM1#
main58510-26591-B0i200108-200308
W(SEPARATE BOARD),GRAY,TRIM1#
main58510-26592-B0i200308-200605
W(SEPARATE BOARD),GRAY,TRIM1#
main58510-26600-B0i199907-200108
DENMARK SPEC OR NORWAY SPEC,GRAY,TRIM1#; DENMARK,FINLAND OR NORWAY SPEC,GRAY,TRIM1#; W(SEPARATE BOARD),GRAY,TRIM1#
main58510-26610-B0i199907-200108
AUSTRIA,DENMARK,FINLAND,NORWAY OR SWITZERLAND SPEC,GRAY,TRIM1#; DENMARK SPEC OR FINLAND SPEC OR AUSTRIA SPEC OR NORWAY SPEC,GRAY,TRIM1#; W(SEPARATE BOARD),GRAY,TRIM1#
main58510-26611-B0i200108-200308
W(SEPARATE BOARD),GRAY,TRIM1#
main58510-26612-B0i200308-200605
W(SEPARATE BOARD),GRAY,TRIM1#
main58510-26720-B0i199508-199708
W(FRONT SEPARATE SEAT),GRAY,TRIM1#; W(SEPARATE FRONT SEAT),GRAY,TRIM1#
main58510-26730-B0i199508-199708
W(*80),GRAY,TRIM1#
main58510-26770-B0i199508-199804
W(SEPARATE FRONT SEAT & *80),GRAY,TRIM1#
main58510-26780-B0i199508-199804
W(SEPARATE FRONT SEAT & *80),GRAY,TRIM1#
main58510-26790-B0i199703-199804
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-26800-B0i199907-200108
AUSTRIA SPEC & W(SEPARATE FRONT SEAT),GRAY,TRIM1#; AUSTRIA,DENMARK,FINLAND,NORWAY OR SWITZERLAND SPEC;W(FRONT SEPARATE SEAT),GRAY,TRIM1#; HUNGARY SPEC & W(SEPARATE FRONT SEAT),GRAY,TRIM1#; W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-26801-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-26802-B0i200308-200605
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-26810-B0i199907-200108
NORWAY SPEC & W(SEPARATE FRONT SEAT),GRAY,TRIM1#; W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#; W(FRONT SEPARATE SEAT);FINLAND OR NORWAY SPEC,GRAY,TRIM1#
main58510-26820-B0i199907-200108
AUSTRIA,FINLAND,NORWAY OR SWITZERLAND SPEC,GRAY,TRIM1#; FINLAND SPEC & W(SEPARATE FRONT SEAT),GRAY,TRIM1#; W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-26821-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-26822-B0i200308-200605
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-26830-B0i199508-199804
DENMARK SPEC & W(*80),GRAY,TRIM1#
main58510-26840-B0i199703-199804
DENMARK,FINLAND OR NORWAY SPEC;W(*80),GRAY,TRIM1#
main58510-26850-B0i199608-199804
DENMARK SPEC & W(*80),GRAY,TRIM1#; SWITZERLAND SPEC & W(*80),GRAY,TRIM1#
main58510-26D40-B0i200808-201010
W(SEPARATE BOARD),GRAY,TRIM1#
main58510-26D40-B1i201010-201111
W(SEPARATE BOARD),DK.GRAY,TRIM1#
main58510-26D50-B0i200808-201010
GRAY,TRIM1#
main58510-26D50-B1i201010-201111
DK.GRAY,TRIM1#
main58510-26D60-B0i200808-201010
W(SEPARATE BOARD),GRAY,TRIM1#
main58510-26D60-B1i201010-201111
W(SEPARATE BOARD),DK.GRAY,TRIM1#
main58510-26D70-B0i200808-201010
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-26D70-B1i201010-201111
W(FRONT SEPARATE SEAT & SEPARATE BOARD),DK.GRAY,TRIM1#
main58510-26D80-B0i200808-201010
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-26D80-B1i201010-201111
W(FRONT SEPARATE SEAT),DK.GRAY,TRIM1#
main58510-26D90-B0i200808-201010
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-26D90-B1i201010-201111
W(FRONT SEPARATE SEAT & SEPARATE BOARD),DK.GRAY,TRIM1#
main58510-26E00-B0i200808-201010
GRAY,TRIM1#
main58510-26E00-B1i201010-201111
DK.GRAY,TRIM1#
main58510-26E10-B0i200808-201010
W(SEPARATE BOARD),GRAY,TRIM1#
main58510-26E10-B1i201010-201111
W(SEPARATE BOARD),DK.GRAY,TRIM1#
main58510-26E20-B0i200808-201010
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-26E20-B1i201010-201111
W(FRONT SEPARATE SEAT),DK.GRAY,TRIM1#
main58510-26E30-B0i200808-201010
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-26E30-B1i201010-201111
W(FRONT SEPARATE SEAT & SEPARATE BOARD),DK.GRAY,TRIM1#
main58510-26E40-B0i200808-201010
GRAY,TRIM1#
main58510-26E40-B1i201010-201111
DK.GRAY,TRIM1#
main58510-26E50-B0i200808-201010
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-26E50-B1i201010-201111
W(FRONT SEPARATE SEAT),DK.GRAY,TRIM1#
main58510-2F020-B0i199508-199708
W(SEPARATE FRONT SEAT & *80),GRAY,TRIM1#
main58510-2F030-B0i199705-199804
HUNGARY SPEC & W(SEPARATE FRONT SEAT & *80),GRAY,TRIM1#
main58510-2F040-B0i199508-199804
NORWAY SPEC & W(SEPARATE FRONT SEAT & *80),GRAY,TRIM1#
main58510-2F050-B0i199608-199804
FINLAND SPEC & W(SEPARATE FRONT SEAT & *80),GRAY,TRIM1#; SWITZERLAND SPEC & W(SEPARATE FRONT SEAT & *80),GRAY,TRIM1#
main58510-2F640-B0i199804-199907
GRAY,TRIM1#
main58510-2F641-B0i200108-200308
GRAY,TRIM1#
main58510-2F642-B0i200308-200312
GRAY,TRIM1#
main58510-2F650-B0i199608-199907
GRAY,TRIM1#
main58510-2F660-B0i199804-199907
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-2F661-B0i200108-200308
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-2F662-B0i200308-200605
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-2F670-B0i199608-199804
W(SEPARATE FRONT SEAT),GRAY,TRIM1#
main58510-2F680-B0i199508-199804
W(*80),GRAY,TRIM1#
main58510-2F690-B0i199608-199804
W(*80),GRAY,TRIM1#
main58510-2F700-B0i199508-199804
W(SEPARATE FRONT SEAT & *80),GRAY,TRIM1#
main58510-2F710-B0i199608-199804
W(SEPARATE FRONT SEAT & *80),GRAY,TRIM1#
main58510-2N110-B0i199804-199907
GRAY,TRIM1#; W(*80),GRAY,TRIM1#
main58510-2N490-B0i199804-199907
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-2N500-B0i199708-199907
GRAY,TRIM1#; W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-2N510-B0i199708-199804
W(*80),GRAY,TRIM1#
main58510-2N520-B0i199708-199804
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N530-B0i199907-200108
W(*80),GRAY,TRIM1#
main58510-2N531-B0i200108-200308
W(*80),GRAY,TRIM1#
main58510-2N532-B0i200308-200605
W(*80),GRAY,TRIM1#
main58510-2N560-B0i199907-200108
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N561-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N562-B0i200308-200605
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N600-B0i199907-200108
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-2N610-B0i199907-200108
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N620-B0i199804-199907
GRAY,TRIM1#
main58510-2N630-B0i199907-200108
W(*80),GRAY,TRIM1#
main58510-2N640-B0i199907-199910
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N650-B0i199804-199907
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-2N660-B0i199907-199910
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N670-B0i199804-199907
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#; W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-2N671-B0i200108-200308
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N672-B0i200308-200605
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N680-B0i199907-200108
W(*80),GRAY,TRIM1#
main58510-2N681-B0i200108-200308
W(*80),GRAY,TRIM1#
main58510-2N682-B0i200308-200605
W(*80),GRAY,TRIM1#
main58510-2N690-B0i199804-199907
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N691-B0i200108-200308
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N692-B0i200308-200605
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N700-B0i199907-200108
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N701-B0i200108-200308
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N702-B0i200308-200605
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N710-B0i199907-200108
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N711-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N712-B0i200308-200605
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N720-B0i199804-199907
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N721-B0i200108-200308
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N722-B0i200308-200605
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N730-B0i199907-200108
W(*80),GRAY,TRIM1#
main58510-2N740-B0i199804-199907
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N750-B0i199804-199907
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N760-B0i199907-200108
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2N770-B0i199804-199907
W(*80),GRAY,TRIM1#; W(FRONT BENCH SEAT & *80),GRAY,TRIM1#
main58510-2N780-B0i199804-199907
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N790-B0i199804-199907
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#; W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-2N800-B0i199804-199907
W(*80),GRAY,TRIM1#
main58510-2N801-B0i200108-200308
W(*80),GRAY,TRIM1#
main58510-2N802-B0i200308-200312
W(*80),GRAY,TRIM1#
main58510-2N810-B0i199907-200108
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N811-B0i200108-200308
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N812-B0i200308-200605
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2N860-B0i199804-199907
W(SEPARATE BOARD),GRAY,TRIM1#
main58510-2W130-B0i199907-200108
GRAY,TRIM1#
main58510-2W131-B0i200108-200308
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-2W132-B0i200308-200605
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-2W140-B0i199907-200108
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-2W141-B0i200108-200308
GRAY,TRIM1#
main58510-2W142-B0i200308-200311
GRAY,TRIM1#
main58510-2W150-B0i199907-200108
W(SEPARATE BOARD),GRAY,TRIM1#
main58510-2W151-B0i200108-200308
W(SEPARATE BOARD),GRAY,TRIM1#
main58510-2W152-B0i200308-200605
W(SEPARATE BOARD),GRAY,TRIM1#
main58510-2W160-B0i199907-200108
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2W161-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2W162-B0i200308-200605
W(FRONT SEPARATE SEAT & SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2W170-B0i199907-200108
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-2W171-B0i200108-200308
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-2W172-B0i200308-200605
W(FRONT SEPARATE SEAT & SEPARATE BOARD),GRAY,TRIM1#
main58510-2W180-B0i199907-200108
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2W181-B0i200108-200308
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2W182-B0i200308-200605
W(SEPARATE BOARD & *80),GRAY,TRIM1#
main58510-2W190-B0i199907-200108
W(*80),GRAY,TRIM1#
main58510-2W191-B0i200108-200308
W(FRONT BENCH SEAT & *80),GRAY,TRIM1#
main58510-2W192-B0i200308-200311
W(FRONT BENCH SEAT & *80),GRAY,TRIM1#
main58510-2W200-B0i199907-200108
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2W201-B0i200108-200308
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
main58510-2W202-B0i200308-200311
W(FRONT SEPARATE SEAT & *80),GRAY,TRIM1#
58511ECLIP(FOR FRONT FLOOR MAT)
main67771-26040-E0×2i199907-200311
CREAM YELLOW,TRIM1#
58519BMAT, REAR WHEEL HOUSE, RH
main58519-26100-B1i199508-199608
BLUISH GRAY,TRIM1#
main58519-26140-B0i199907-200308
GRAY,TRIM1#
main58519-26141-B0i200608-201010
GRAY,TRIM1#
main58519-26220-B0i199703-199907
GRAY,TRIM1#
main58519-26221-B0i200308-200608
GRAY,TRIM1#
58529BMAT, REAR WHEEL HOUSE, LH
main58529-26040-B1i199508-199608
BLUISH GRAY,TRIM1#
main58529-26100-B0i199907-200308
GRAY,TRIM1#
main58529-26101-B0i200308-200608
GRAY,TRIM1#
main58529-26150-B0i199703-199907
GRAY,TRIM1#
main58529-26151-B0i200608-201010
GRAY,TRIM1#
58570BMAT ASSY, REAR FLOOR
main58517-26080-B0i199907-200308
GRAY,TRIM1#; W/O(REAR SEAT),GRAY,TRIM1#
main58517-26081-B0i200608-200808
GRAY,TRIM1#
main58517-26090-B0i199508-199804
GRAY,TRIM1#
main58517-26100-B0i199907-200108
GRAY,TRIM1#; HUNGARY SPEC,GRAY,TRIM1#
main58517-26101-B0i200308-200605
W/O(REAR SEAT),GRAY,TRIM1#
main58517-26110-B0i199508-199804
GRAY,TRIM1#
main58517-26130-B0i199907-200108
GRAY,TRIM1#
main58517-26131-B0i200608-200808
GRAY,TRIM1#; W/O(REAR SEAT),GRAY,TRIM1#
main58517-26140-B0i199508-199907
NORWAY SPEC OR SWEDEN SPEC,GRAY,TRIM1#; NORWAY SPEC,GRAY,TRIM1#
main58517-26141-B0i200308-200608
NORWAY SPEC OR SWEDEN SPEC,GRAY,TRIM1#
main58517-26150-B0i199907-200308
NORWAY SPEC OR SWEDEN SPEC,GRAY,TRIM1#
main58517-26151-B0i200308-200605
NORWAY SPEC OR SWEDEN SPEC,GRAY,TRIM1#
main58517-26230-B0i199703-199907
GRAY,TRIM1#
main58517-26231-B0i200308-200605
GRAY,TRIM1#
main58517-26240-B0i199703-199907
NORWAY SPEC OR SWEDEN SPEC,GRAY,TRIM1#
main58517-26241-B0i200308-200608
NORWAY SPEC OR SWEDEN SPEC,GRAY,TRIM1#
main58517-26250-B0i200108-200308
HUNGARY SPEC & W/O(REAR SEAT),GRAY,TRIM1#; W/O(REAR SEAT),GRAY,TRIM1#
main58517-26251-B0i200608-200808
GRAY,TRIM1#; W/O(REAR SEAT),GRAY,TRIM1#
main58517-26260-B0i199907-200308
NORWAY SPEC,GRAY,TRIM1#
main58517-26261-B0i200308-200605
NORWAY SPEC,GRAY,TRIM1#
main58517-26270-B0i199907-200308
GRAY,TRIM1#
main58517-26271-B0i200308-200608
GRAY,TRIM1#
main58517-26310-B0i199804-199907
GRAY,TRIM1#
main58517-26311-B0i200308-200608
GRAY,TRIM1#
main58517-26320-B0i199804-199907
GRAY,TRIM1#
main58517-26321-B0i200308-200608
GRAY,TRIM1#
main58517-26330-B0i199804-199907
GRAY,TRIM1#
main58517-26331-B0i200608-200808
GRAY,TRIM1#
main58570-26300-B0i199508-199608
GRAY,TRIM1#
main58570-26320-B0i199508-199804
BLUISH GRAY,TRIM1#
main58570-26580-B0i199907-200108
GRAY,TRIM1#
main58570-26581-B0i200308-200405
GRAY,TRIM1#
main58570-26680-B0i199907-200108
GRAY,TRIM1#
main58570-26681-B0i200308-200405
GRAY,TRIM1#
main58570-26A00-B0i200608-200808
GRAY,TRIM1#
main58570-26A00-B1i200808-201010
GRAY,TRIM1#
main58570-26A10-B0i200405-200608
GRAY,TRIM1#
main58570-26A10-B1i200808-201010
GRAY,TRIM1#
main58570-26A60-B0i200808-201010
GRAY,TRIM1#
main58570-26A70-B0i200808-201010
GRAY,TRIM1#
main58570-26A80-B0i200808-201010
W/O(REAR SEAT),GRAY,TRIM1#
main58570-26A90-B0i200808-201010
NORWAY SPEC OR SWEDEN SPEC,GRAY,TRIM1#
main58570-26B00-B0i200808-201010
NORWAY SPEC OR SWEDEN SPEC,GRAY,TRIM1#
main58570-26B10-B0i200808-201010
GRAY,TRIM1#
main58570-26B20-B0i200808-201010
NORWAY SPEC OR SWEDEN SPEC,GRAY,TRIM1#
main58570-26B30-B0i200808-201010
GRAY,TRIM1#; W/O(REAR SEAT),GRAY,TRIM1#
main58570-26B40-B0i200808-201010
NORWAY SPEC OR SWEDEN SPEC,GRAY,TRIM1#
main58570-26B50-B0i200808-201010
GRAY,TRIM1#
main58570-26B60-B0i200808-201010
GRAY,TRIM1#
main58570-26B70-B0i200808-201010
GRAY,TRIM1#
main58570-26B80-B0i201010-201111
DK.GRAY,TRIM1#
main58570-26B90-B0i201010-201111
DK.GRAY,TRIM1#
main58570-26C00-B0i201010-201111
DK.GRAY,TRIM1#
main58570-26C10-B0i201010-201111
NORWAY SPEC OR SWEDEN SPEC,DK.GRAY,TRIM1#
main58570-26C20-B0i201010-201111
NORWAY SPEC OR SWEDEN SPEC,DK.GRAY,TRIM1#
main58570-26C30-B0i201010-201111
DK.GRAY,TRIM1#
main58570-26C40-B0i201010-201111
NORWAY SPEC OR SWEDEN SPEC,DK.GRAY,TRIM1#
main58570-26C50-B0i201010-201111
DK.GRAY,TRIM1#
main58570-26C60-B0i201010-201111
NORWAY SPEC OR SWEDEN SPEC,DK.GRAY,TRIM1#
main58570-26C70-B0i201010-201111
DK.GRAY,TRIM1#
main58570-26C80-B0i201010-201111
DK.GRAY,TRIM1#
main58570-26C90-B0i201010-201111
DK.GRAY,TRIM1#
58577DPLATE, REAR FLOOR MAT SUPPORT SIDE, RH
main58577-26010i199508-199907
main58577-26020i199508-199907
58578APLATE, REAR FLOOR MAT SUPPORT SIDE, LH
main58578-26010i199508-199910
67913PLATE, FRONT DOOR SCUFF, RH
main67910-26030-B0i199508-199907
BLUISH GRAY,TRIM1#
main67910-26050-B0i199907-200608
BLUISH GRAY,TRIM1#
main67910-26080-B0i200108-200608
BLUISH GRAY,TRIM1#
main67910-26090-B0i200808-201010
BLUISH GRAY,TRIM1#
main67910-26090-B1i201010-201111
DK.GRAY,TRIM1#
main67910-26100-B0i200808-201010
BLUISH GRAY,TRIM1#
main67910-26100-B1i201010-201111
DK.GRAY,TRIM1#
main67910-26110-B0i200808-201010
BLUISH GRAY,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
main67920-26010-B0i200608-200808
BLUISH GRAY,TRIM1#
main67920-26050-B0i200808-201010
BLUISH GRAY,TRIM1#
main67920-26050-B1i201010-201111
DK.GRAY,TRIM1#
67925COVER, DOOR SCUFF PLATE
main67925-26010-B0i200608-201010
BLUISH GRAY,TRIM1#
main67925-26010-B1i201010-201111
DK.GRAY,TRIM1#
67935PLATE, BACK DOOR SCUFF
main67904-26010-B0i199708-199809
BLUISH GRAY,TRIM1#
main67904-26030-B0i199907-200608
BLUISH GRAY,TRIM1#
main67935-26030i199907-200605
main67935-26040i199508-199910
W(REAR FLOOR BOARD)
9016860013
main90168-60013
9018905067
main90189-05067
9018906084
main90189-06084
9046708179
main90467-08179
9046709182
main90467-09182
9046710161
main90467-10161
9053004005B0
main90530-04005B0
9053004005S5
main90530-04005S5
9053006001
main90530-06001
9053006006
main90530-06006
9053018002
main90530-18002
93530A5014
main93530-A5014
93530A5016
main93530-A5016

25 parts on this diagram · 2 diagrams in section

FLOOR MAT & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
