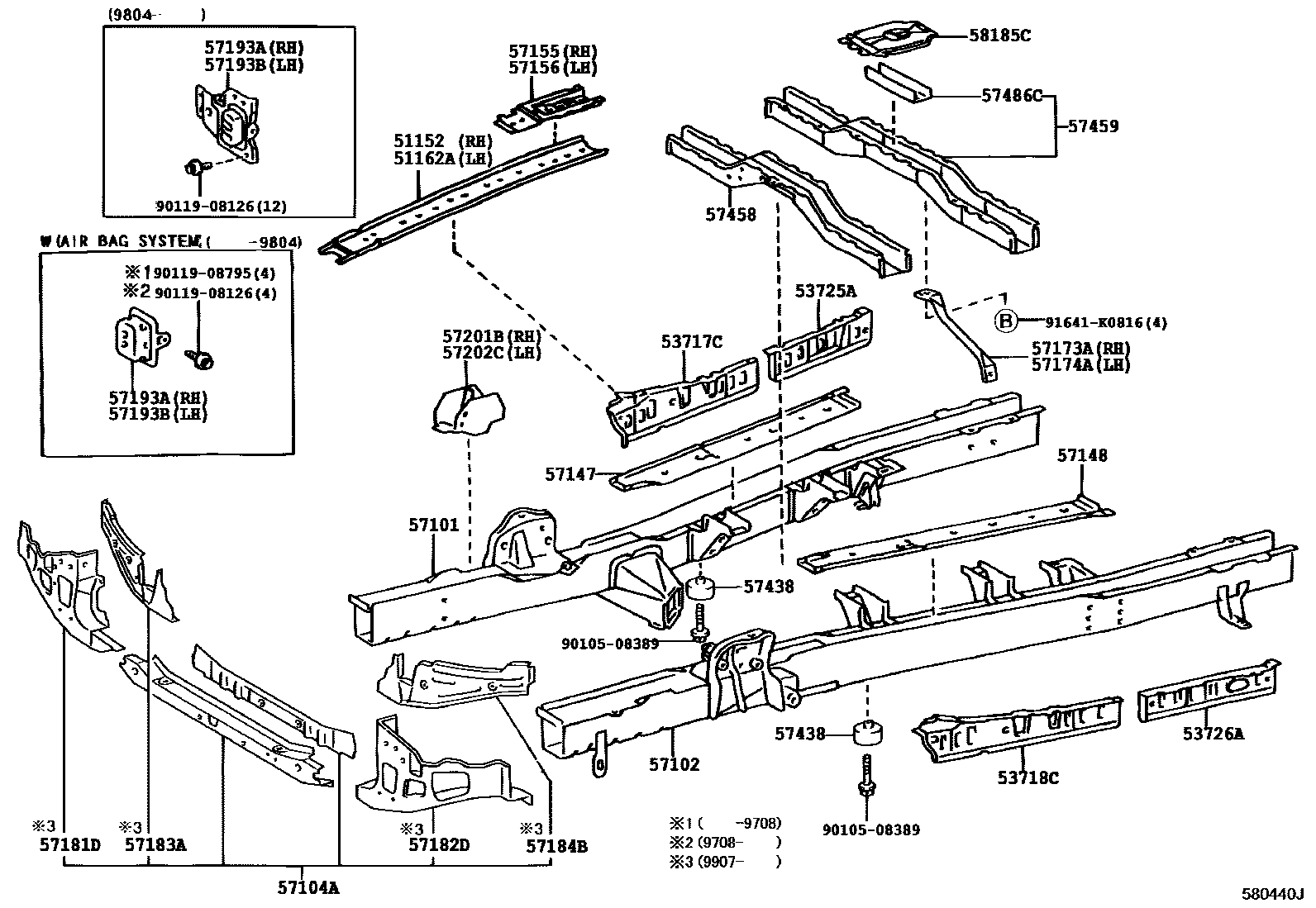

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51152REINFORCEMENT, FRONT FRAME RAIL, NO.4 RH
51162AREINFORCEMENT, FRONT FRAME RAIL, NO.4 LH
53717CAPRON, FRPNT FENDER, NO.2 RH
53718CAPRON, FRONT FENDER, NO.2 LH
53725AAPRON, FRONT FENDER NO.2 SIDE, RH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57147PLATE, FRONT SIDE MEMBER, REAR RH
57148PLATE, FRONT SIDE MEMBER, REAR LH
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57173AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH
57174AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57181DEXTENSION, FRONT CROSSMEMBER, FRONT RH
57182DEXTENSION, FRONT CROSSMEMBER, FRONT LH
57183AEXTENSION, FRONT CROSSMEMBER, RR RH
57184BEXTENSION, FRONT CROSSMEMBER, RR LH
57193ABLOCK, FRONT CROSSMEMBER, NO.1
57193BBLOCK, FRONT CROSSMEMBER, NO.1
57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57438DAMPER SUB-ASSY, FRONT FLOOR CROSSMEMBER
57458MEMBER, FRONT FLOOR CROSS, NO.1
57486CREINFORCEMENT, FRONT FLOOR CROSS, NO.2
9010508389
main90105-08389
9011908126
main90119-08126
9011908795
main90119-08795
91641K0816
main91641-K0816
32 parts on this diagram · 4 diagrams in section
