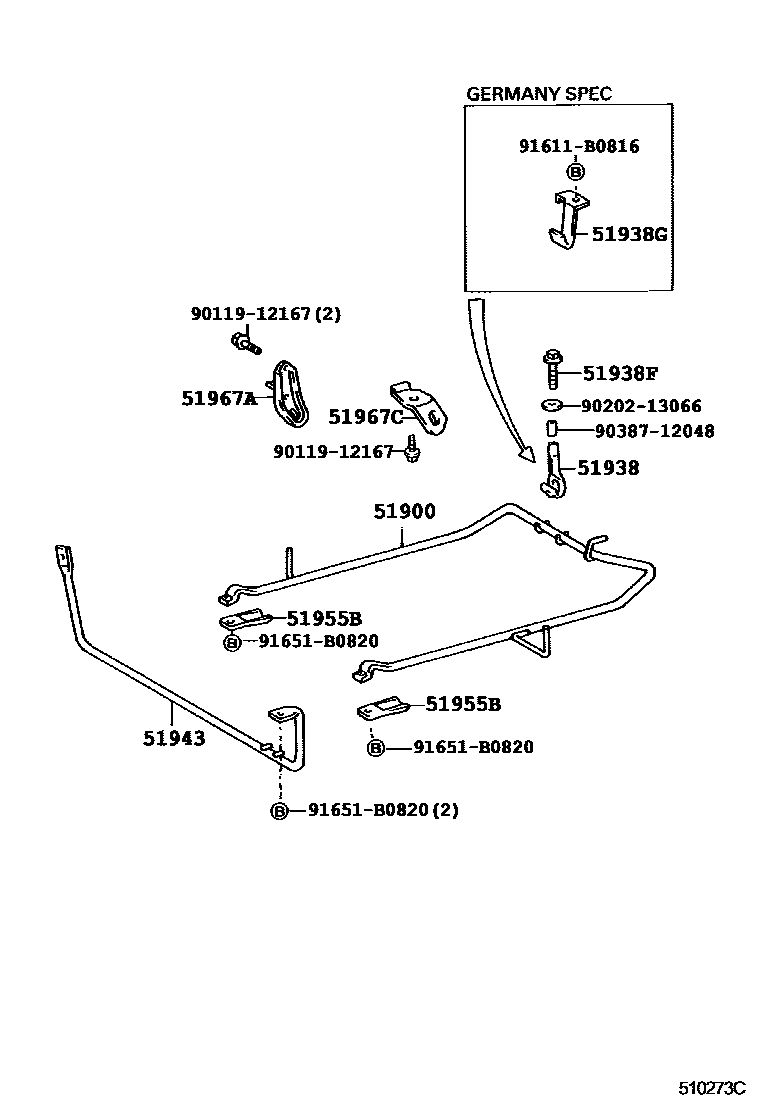

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-26530iRCH12;LXH12..STD;LXH12..05S,09S199508-199605

main51903-26550iLXH12..03S..DX; RCH12..5DV..MTM;LXH12,RCH12..09S;LXH12..LHD..SP..MTM199508-199605

*FRG

main51903-26570iKLH1#,2#199907-200608

main51903-26580iKLH18,28..03S200701

GERMANY SPEC

main51903-26640iRCH12,22199907-200311

W(DOUBLE SWING BACK DOOR)

main51903-26650iKLH18,28..03S200701

GERMANY SPEC & W(DOUBLE SWING BACK DOOR)

51938LOCK, SPARE WHEEL CARRIER

main51938-26050iKLH12,22..LHD..03S..MTM199907-200608

GERMANY SPEC

main51938-28030iKLH1#,2#199907-200608

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90119-12293iKLH1#,2#199907-200608

51938GBRACKET, SPARE WHEEL CARRIER MOUNTING

main51938-26050iKLH18,28..03S200701

GERMANY SPEC

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-26200iLXH12,RCH12199508-199605

main51943-26230iKLH1#,2#199907-200608

51955BHINGE, SPARE WHEEL CARRIER, NO.1

main51955-26050×2iKLH1#,2#199907-200608

main51955-26060×2iLXH12,RCH12199508-199605

51967AHOOK SUB-ASSY, REAR

main51095-26020iKLH1#,2#199907-200608

51967CHOOK, TRANSPORT, REAR

main51967-26020iKLH1#,2#199907-200608

9011912167

main90119-12167

9020213066

main90202-13066

9038712048

main90387-12048

91611B0816

main91611-B0816

91651B0820

main91651-B0820

13 parts on this diagram · 1 diagram in section
