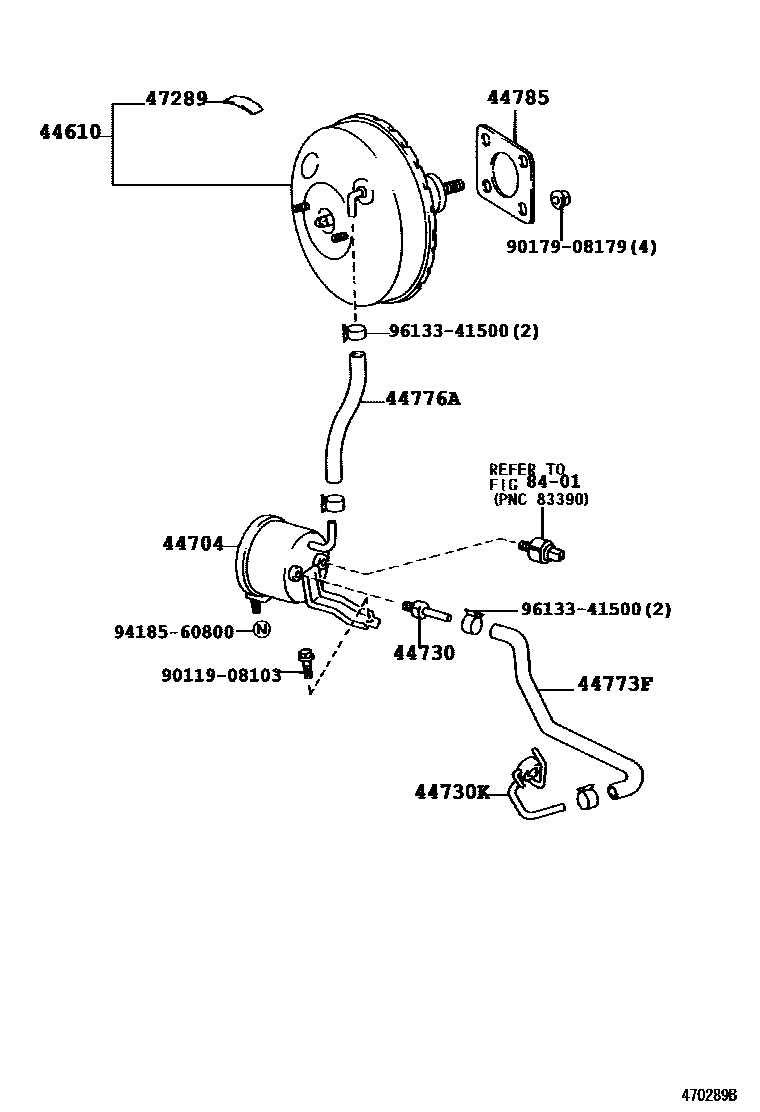

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0006 1 0008 1 0009 1 0010 1

44610BOOSTER ASSY, BRAKE

main44610-26490iRCH1#..LHD199508-199703

main44610-26491iRCH1#,2#..LHD199703-199907

main44610-26492iRCH13,19,23,29..LHD..MTM199907-200509

main44610-26493iRCH1#,2#..LHD200510-200605

main44610-26500iLXH1#..LHD199508-199703

main44610-26501iLXH1#,2#..LHD199703-199907

main44610-26502iLXH1#,2#..LHD199907-200108

main44610-26503iKLH1#,2#..LHD200108-200608

main44610-26520iRCH12..RHD199508-199703

main44610-26530iLXH12..RHD199508-199703

main44610-26590iRCH12,13..RHD..03S199703-199910

main44610-26591iRCH12,22199907-200311

main44610-26592iRCH13..RHD200510-200605

main44610-26600iLXH12,22..RHD199907-200108

main44610-26640iKLH12,22..RHD200108-200608

main44610-26770iKLH1#,2#..LHD200608

44704RESERVOIR SUB-ASSY, VACUUM

main44704-26180iLXH1#,2#199907-200108

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60050iLXH1#,2#199508-199907

44730KUNION, VACUUM HOSE(FOR VACUUM PUMP)

main90405-09134iLXH12,22..RHD;LXH12,22..SG..(GL,STD)..TD; LXH22..LHD..(03S,09S);LXH1#,28..LHD..(DX,STD)199907-200108

W(AIR CONDITIONER)

main90405-09135iLXH1#,2#199508-199804

main90405-09175iKLH1#,2#200108-200608

44773FHOSE, UNION TO CHECK VALVE

main44773-26110iLXH1#,2#199508-199907

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44774-26300iLXH12,22..RHD199508-199907

44785GASKET, BRAKE BOOSTER

main44785-20020iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION

main47289-60010iLXH1#,2#199703-199907

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908103

main90119-08103

9017908179

main90179-08179

9418560800

main94185-60800

9613341500

main96133-41500

13 parts on this diagram · 7 diagrams in section
