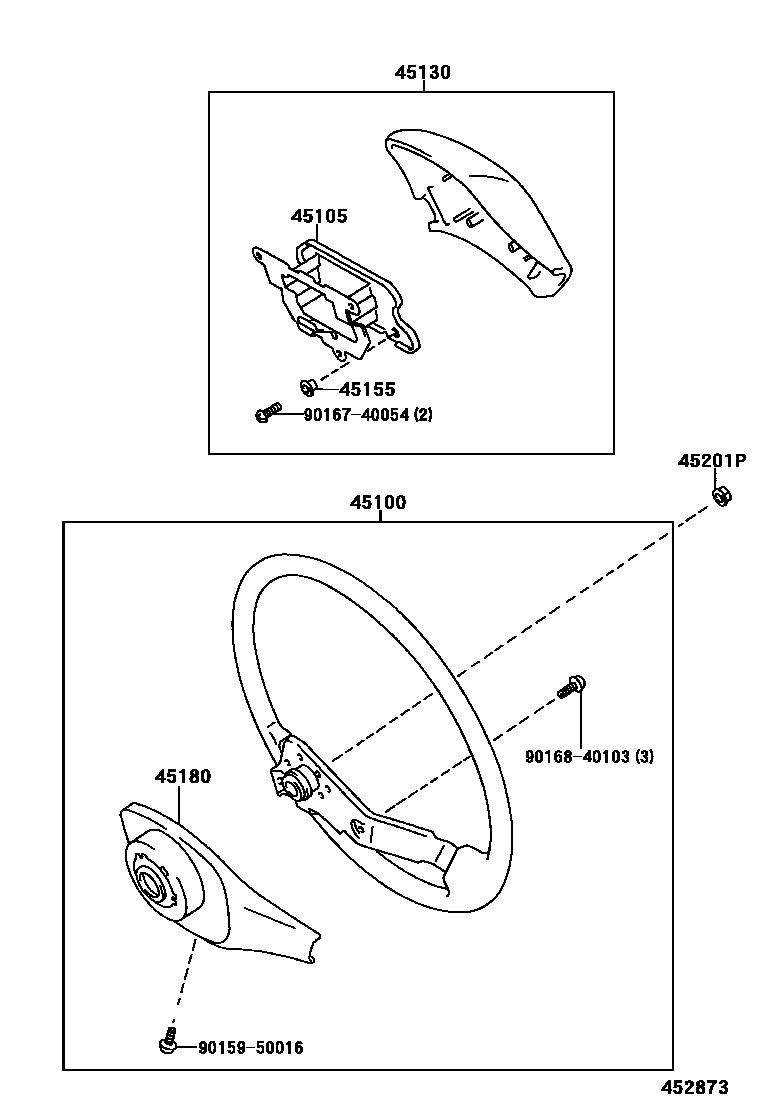

STEERING WHEEL

0001 12-SPOKE,POLYPROPYLENE 0002 12-SPOKE,URETHANE 0003 12-SPOKE,URETHANE,W(*80) 0004 14-SPOKE

45100WHEEL ASSY, STEERING

main45100-26210-B0iLXH1#,2#,RCH1#,2#..EUR199508-199708

2-SPOKE,URETHANE,W(*80),BLUISH GRAY,TRIM1#

main45100-26220-B0iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

2-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

main45100-26220-B2iRCH1#,2#200501-200605

2-SPOKE,URETHANE,DK.GRAY,TRIM14

main45100-26230-B0iRCH13,19,23,29..MTM199907-200605

2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1#

main45100-26250-B0iKLH1#,2#199907-200608

2-SPOKE,URETHANE,W(*80),BLUISH GRAY,TRIM1#

main45100-58010-B0iKLH1#,2#200608-201111

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-12200iRCH13,19,23,29..MTM199907-200605

main45105-26100iRCH12,22199907-200311

W(URETHANE STEERING WHEEL)

45130BUTTON ASSY, HORN

main45130-26240-B0iKLH1#,2#200501-200608

BLUISH GRAY,TRIM14

main45130-26240-B3iKLH1#,2#200501-200608

DK.GRAY,TRIM14

main45130-26250-B0iLXH1#,2#,RCH1#,2#..EUR199508-199708

W(*80),BLUISH GRAY,TRIM1#

main45130-26260-B0iLXH1#,2#;RCH13..ATM199907-200108

BLUISH GRAY,TRIM1#

main45130-26270-B0iLXH1#,2#,RCH1#,2#199805-199907

W(*80),BLUISH GRAY,TRIM1#

main45130-26340-B0iRCH13,19,23,29..MTM199907-200605

W(*80),BLUISH GRAY,TRIM1#

main45130-58011-B0iKLH1#,2#200608-201111

DK.GRAY,TRIM1#

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-12050×4iKLH1#,2#199907-200608

W(URETHANE STEERING WHEEL)

45180COVER SUB-ASSY, STEERING WHEEL

main45180-26030-B0iRCH1#,2#200501-200605

BLUISH GRAY,TRIM14

main45180-26030-B2iKLH1#,2#200501-200608

DK.GRAY,TRIM14

main45180-26040-B0iKLH1#,2#199907-200608

BLUISH GRAY,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

9015950016

main90159-50016

9016740054

main90167-40054

9016840103

main90168-40103

9 parts on this diagram · 4 diagrams in section
