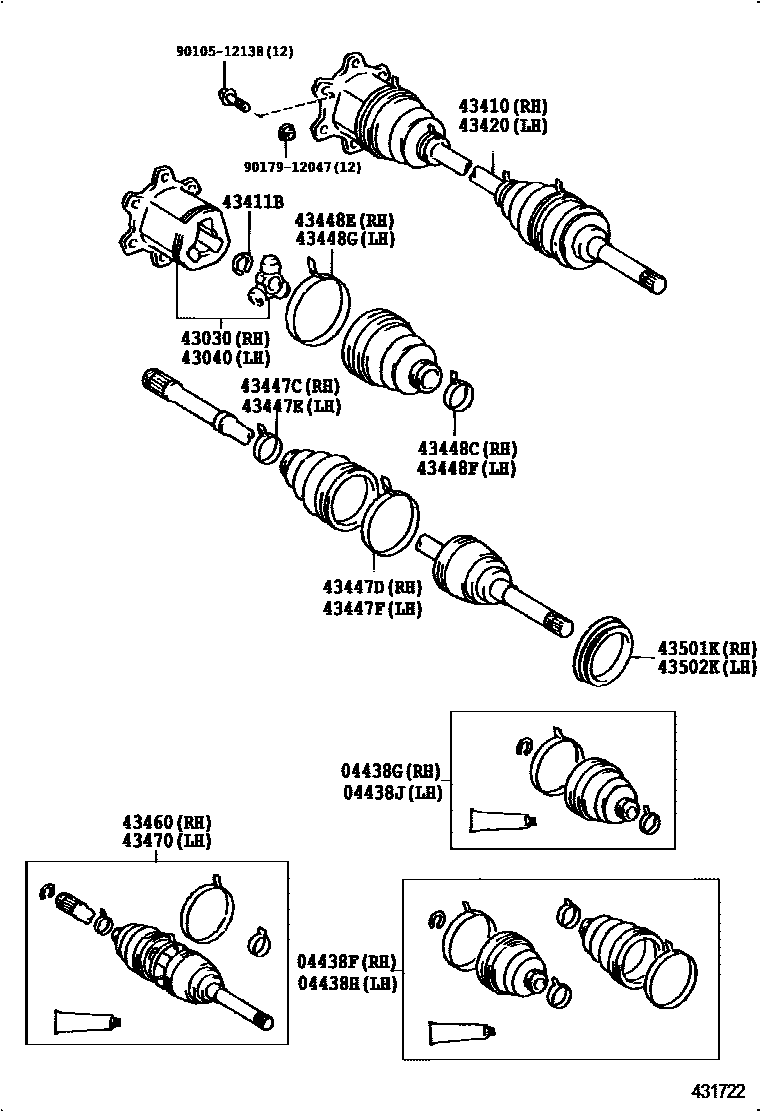

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04428-26010iKLH18,28200401-200608

sub04428-26011

main04438-26021iKLH18,28,RCH19,29199907-200401

W(ABS)

main04438-35022iLXH18,28,RCH19,29199806-199907

sub04428-35010

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-25010iKLH18,28200608

sub04437-25011

main04438-26011iLXH18,28199907-200108

W(ABS)

main04438-35012iLXH18,28,RCH19,29199907-200107

sub04438-35070

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-26010iKLH18,28200608

sub04428-26011

main04438-26021iLXH18,28199907-200108

W(ABS)

main04438-35022iLXH18,28,RCH19,29199907-200107

sub04428-35010

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-25010iKLH18,28200401-200608

sub04437-25011

main04438-26011iLXH18,28,RCH18,19,28,29199608-199806

main04438-35012iLXH18,28,RCH19,29199907-200107

sub04438-35070

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-26010iLXH18,28199907-200108

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43403-26010iLXH18,28199907-200108

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-26031iLXH18,28,RCH18,19,28,29199608-199806

sub90316-60004

main43430-26032iRCH19,29200107-200605

sub43430-26033

main43430-26060iLXH18,28,RCH19,29199806-199907

sub90316-60004

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-29028×2iLXH18,28,RCH18,19,28,29199608-199907

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-26031iLXH18,28,RCH19,29199806-199907

W(ABS)

sub90316-60004

main43430-26032iKLH18,28200608

sub43430-26033

main43430-26060iLXH18,28,RCH19,29199907-200107

sub90316-60004

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01221iKLH18,28200608

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01135iLXH18,28199907-200108

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main90949-01221iLXH18,28,RCH18,19,28,29199608-199907

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main90949-01135iLXH18,28,RCH18,19,28,29199608-199907

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01221iLXH18,28,RCH18,19,28,29199608-199907

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01222iLXH18,28,RCH18,19,28,29199608-199907

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main90949-01221iLXH18,28,RCH18,19,28,29199608-199907

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main90949-01222iLXH18,28,RCH18,19,28,29199608-199907

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29285iLXH18,28,RCH19,29199806-199907

W(ABS)

sub90316-60004

main43460-29385iLXH18,28,RCH19,29199907-200107

sub90316-60004

main43460-29455iLXH18,28200107-200108

main43460-29595iRCH19,29200401-200605

sub43460-29596

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-29285iLXH18,28,RCH19,29199806-199907

W(ABS)

sub90316-60004

main43460-29385iLXH18,28,RCH19,29199907-200107

sub90316-60004

main43460-29455iKLH18,28,RCH19,29200107-200401

main43460-29595iRCH19,29200401-200605

sub43460-29596

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-76002iLXH18,28,RCH18,19,28,29199608-199806

sub90316-60004

main90304-76003iLXH18,28,RCH19,29199907-200107

main90304-76005iLXH18,28200107-200108

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-76002iLXH18,28,RCH19,29199806-199907

W(ABS)

sub90316-60004

main90304-76003iLXH18,28,RCH19,29199907-200107

main90304-76005iKLH18,28200608-201111

9010512138

main90105-12138

9017912047

main90179-12047

23 parts on this diagram · 1 diagram in section
