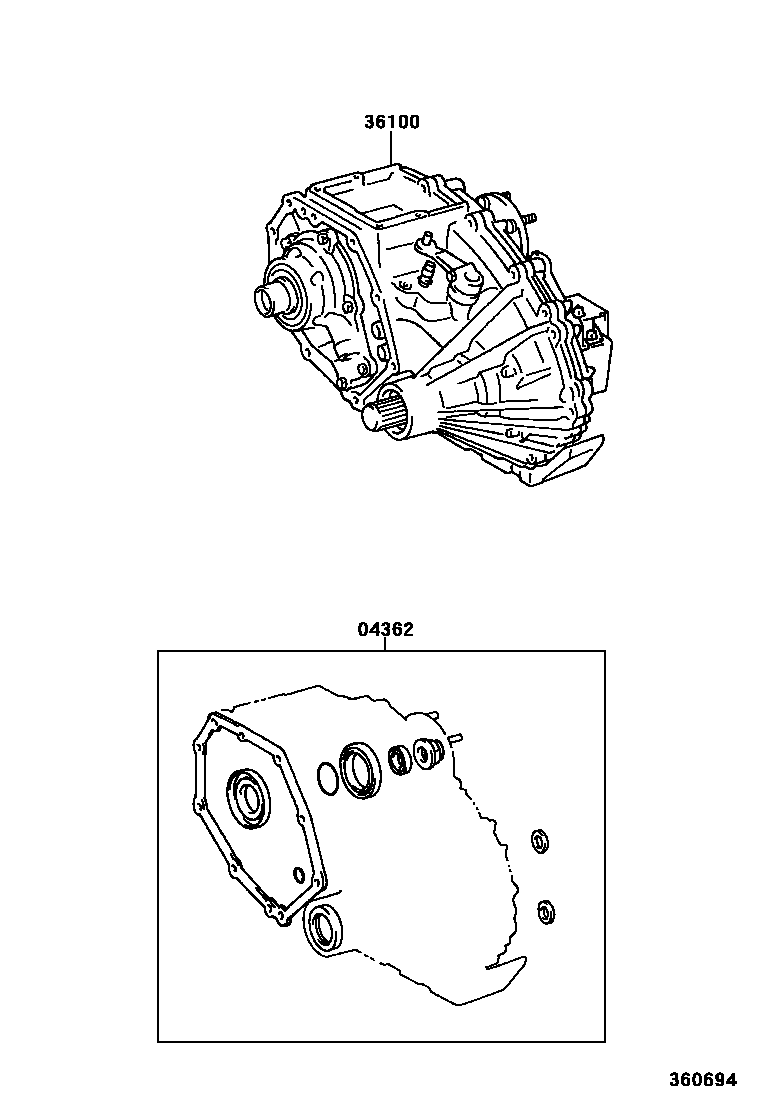

TRANSFER ASSEMBLY & GASKET KIT

04362GASKET KIT, TRANSFER OVERHAUL

main04362-26040iRCH19,29200501-200605

main04362-28041iLXH18,28,RCH18,19,28,29199608-199907

36100TRANSFER ASSY

main36100-26140iRCH18199608-199609

main36100-26141iRCH18199609-199703

main36100-26150iLXH18199608-199609

main36100-26151iLXH18199609-199703

main36100-26200iRCH18,28199703-199804

main36100-26210iLXH18,28,RCH19,29199703-199907

2 parts on this diagram · 1 diagram in section
