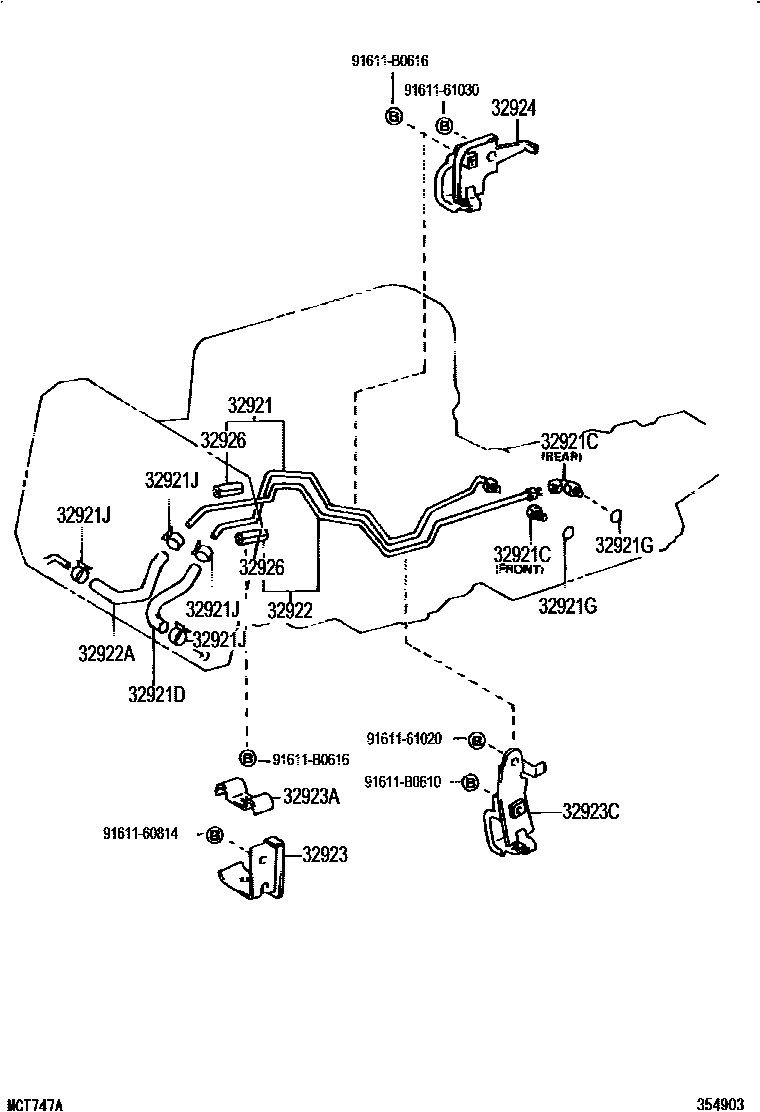

OIL COOLER & TUBE (ATM)

0001 1A43DL 0002 1A45DL,A43DL 0003 1A340E

32921TUBE, OIL COOLER INLET, NO.1

main32921-26150iRCH12..ATM199508-199804

main32921-26160iLXH12,22..ATM199508-199907

main32921-26280iRCH13..ATM199804-199907

main32921-26320iKLH12,22..ATM200108-200608

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iLXH12,22,RCH13..ATM199907-200108

FRONT

main90404-16029iKLH12,22..ATM200108-200608

INLET

main90407-16009iKLH12,22..ATM200108-200608

OUTLET

main90407-16010iLXH12,22,RCH12,13..ATM199508-199907

REAR

32921DHOSE(FOR OIL COOLER INLET)

main32941-60070iRCH12..ATM199508-199708

main32942-26060iRCH12,13..ATM199708-199907

main32943-36030iKLH12,22..ATM200108-200608

main32943-36050iLXH12,22..ATM199907-200108

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iLXH12,22,RCH12,13..ATM199508-199907

main90301-11006×2iKLH12,22..ATM200108-200608

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×4iLXH12,22,RCH12,13..ATM199508-199907

main90467-16022×2iKLH12,22,LXH12,22,RCH13..ATM199907-200608

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-26160iRCH12..ATM199508-199804

main32922-26170iLXH12,22..ATM199508-199907

main32922-26270iRCH13..ATM199804-199907

main32922-26310iKLH12,22..ATM200108-200608

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-60070iRCH12,13..ATM199708-199907

main32942-26060iRCH12..ATM199508-199708

main90445-17117iKLH12,22..ATM200108-200608

main90445-17126iLXH12,22..ATM199508-199907

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32909-26080iLXH12,22..ATM199708-199907

main32923-26050iRCH12..ATM199508-199804

main32923-26070iLXH12,22..ATM199508-199708

main32923-26110iRCH13..ATM199804-199907

main32929-24060iKLH12,22..ATM200108-200608

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32929-50010iRCH13..ATM199804-199907

main90462-12079iLXH12,22,RCH12..ATM199508-199907

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32909-26080iLXH12,22..ATM199508-199708

main32909-26090iLXH12,22..ATM199708-199907

32924CLAMP, OIL COOLER TUBE, NO.2

main32909-26090iLXH12,22..ATM199508-199708

main32909-34040iRCH13..ATM199907-200108

main32909-35190iKLH12,22..ATM200108-200608

main32923-26070iLXH12,22..ATM199907-200108

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×6iLXH12,22,RCH12,13..ATM199508-199907

L=35,ID=10

9161160814

main91611-60814

9161161020

main91611-61020

9161161030

main91611-61030

91611B0610

main91611-B0610

91611B0616

main91611-B0616

17 parts on this diagram · 3 diagrams in section
