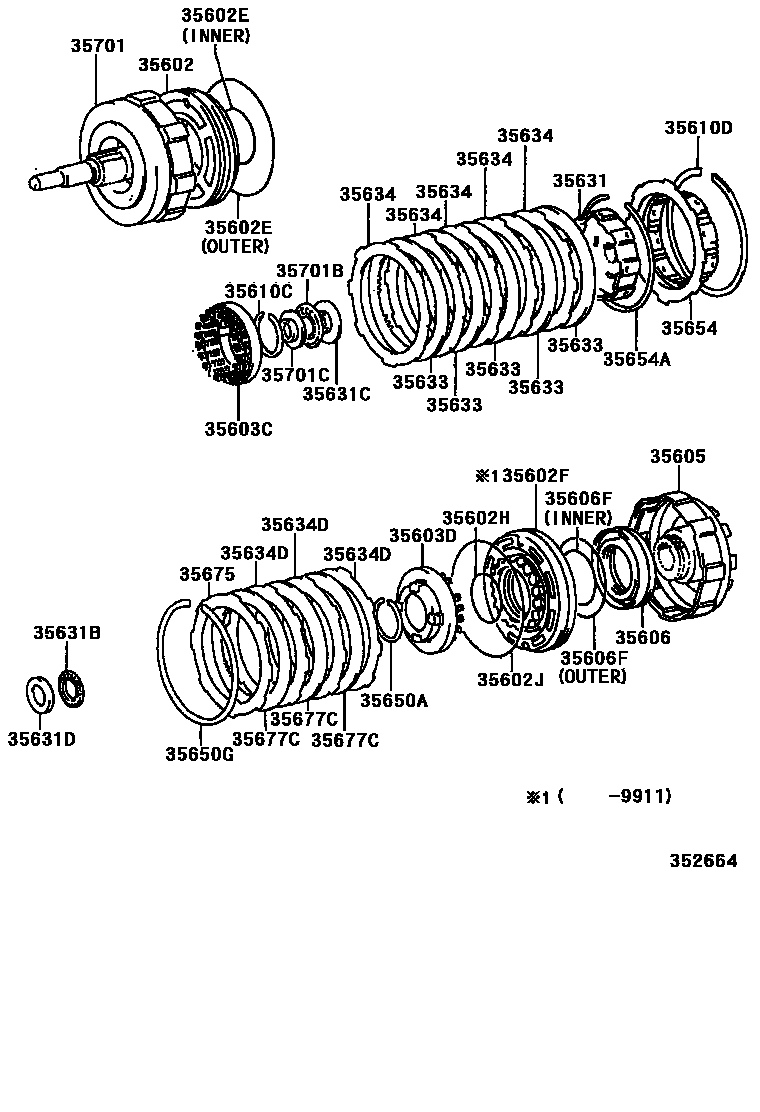

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35602ERING, O (FOR FRONT CLUTCH PISTON)
INNER
INNER
OUTER
OUTER
35602FPISTON SUB-ASSY, REAR CLUTCH, NO.2
35602HRING, O (FOR REAR CLUTCH PISTON NO.2 INNER)
35602JRING, O (FOR REAR CLUTCH PISTON NO.2 OUTER)
35603CSPRING SUB-ASSY, FRONT CLUTCH RETURN (ATM)
35603DSPRING SUB-ASSY, REAR CLUTCH RETURN (ATM)
35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR
35606PISTON SUB-ASSY, REAR CLUTCH
35606FRING, O (FOR REAR CLUTCH PISTON)
INNER
INNER
OUTER
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)
35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)
35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634PLATE, FRONT CLUTCH
T=1.8
T=1.4
35634DPLATE, REAR CLUTCH
T=1.8
T=2.0
35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)
35650GRING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)
35654HUB, REAR CLUTCH
35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)
35675FLANGE, REAR CLUTCH
T=3.55
T=3.75
T=4.0
35677CDISC, REAR CLUTCH
35701SHAFT SUB-ASSY, INPUT
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
28 parts on this diagram · 2 diagrams in section
