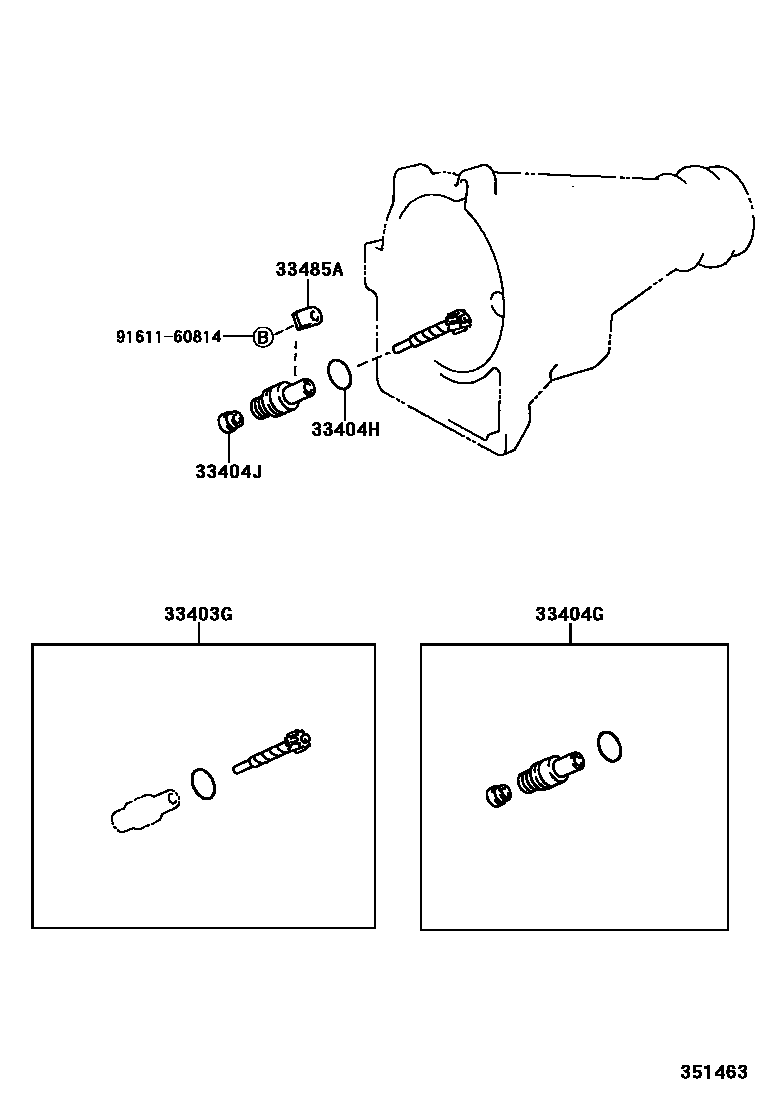

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A43DL,A45DL 0002 1A340E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29235iRCH12,13..ATM199508-200108

N=20,MARK 20:6

main33482-29205iKLH12,22..ATM200108-200608

N=19,MARK 19:6

main33482-39315iLXH12,22..ATM199508-200108

N=21,MARK 21:6

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLXH12,22,RCH13..ATM199508-200108

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iLXH12,22,RCH12,13..ATM199508-200108

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLXH12,22,RCH12,13..ATM199508-200108

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-25010iLXH12,22,RCH12,13..ATM199508-200108

9161160814

main91611-60814

6 parts on this diagram · 2 diagrams in section
