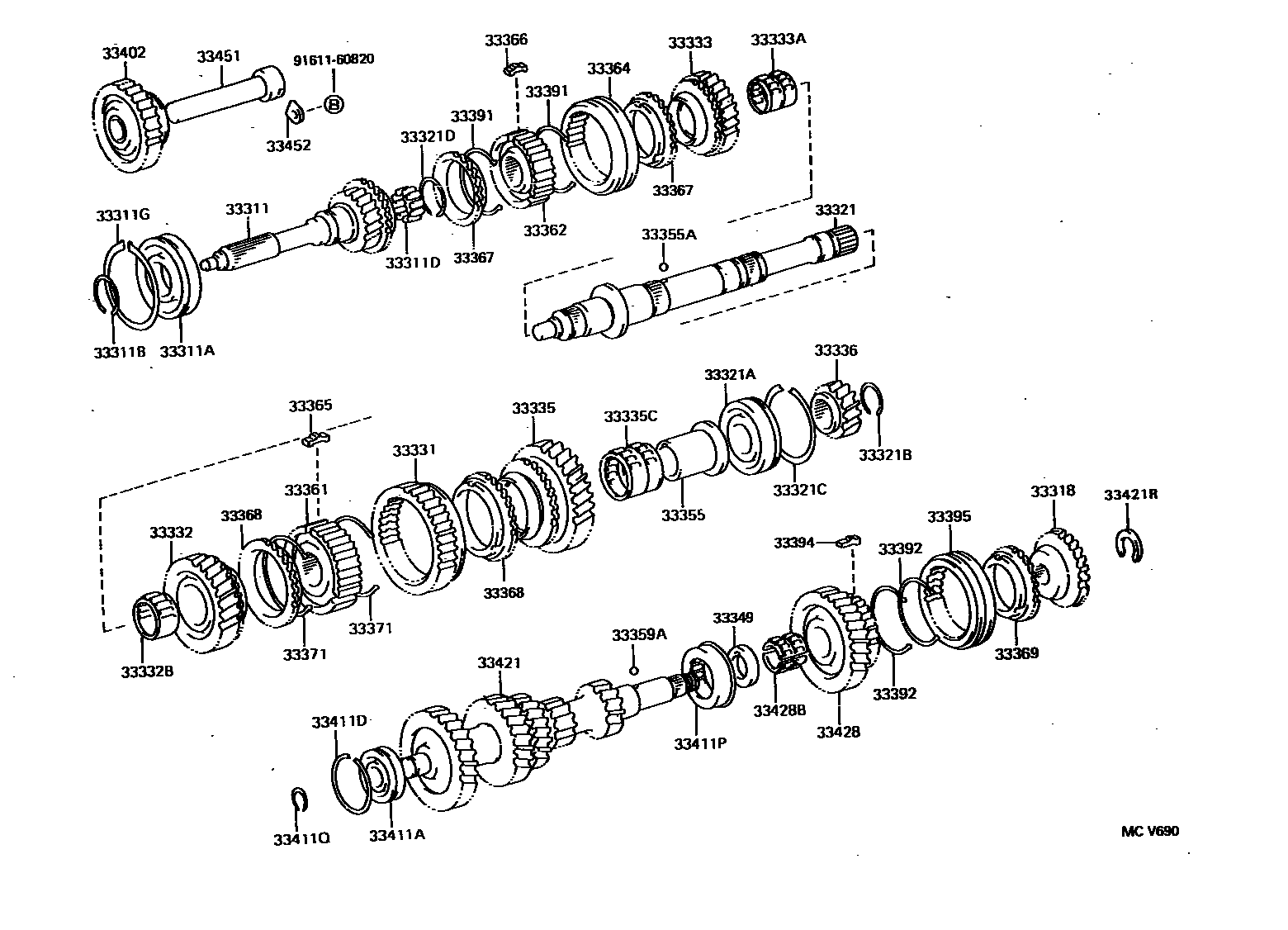

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
PORTUGAL SPEC
sub33301-30H00
sub33301-30H10
sub33301-30H20
sub33301-30H30
sub33301-30H40
sub33301-30H50
sub33301-30H60
sub33301-30H70
sub33301-30H80
sub33301-30H90
sub33301-30082
sub33301-26050
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
T=2.20,MARK 3
T=2.25,MARK 4
T=2.30,MARK 5
T=2.30-2.35,MARK 11
T=2.35-2.40,MARK 12
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
PORTUGAL SPEC
33321SHAFT, OUTPUT
sub33321-35210
sub33362-35060
sub90520-26072
sub90520-26073
sub90520-26074
sub90520-26075
sub90520-26076
sub90520-26077
sub90520-26078
sub33321-35141
sub33321-35191
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.68,MARK 14
T=2.74,MARK 15
T=2.67-2.72,MARK A
T=2.73-2.78,MARK B
T=2.79-2.84,MARK C
T=2.85-2.90,MARK D
T=2.91-2.96,MARK E
T=2.97-3.02,MARK F
T=3.03-3.08,MARK G
T=3.09-3.14,MARK H
T=3.15-3.20,MARK J
T=3.21-3.26,MARK K
T=3.27-3.32,MARK L
T=2.43-2.48,MARK 10
T=2.49-2.54,MARK 11
T=2.55-2.60,MARK 12
T=2.61-2.66,MARK 13
T=2.31-2.36,MARK 8
T=2.37-2.42,MARK 9
T=2.65,MARK A
T=2.70,MARK B
T=2.75,MARK C
T=2.80,MARK D
T=2.85,MARK E
T=2.90,MARK F
T=2.95,MARK G
T=3.00,MARK H
T=3.05,MARK J
T=3.10,MARK K
T=3.15,MARK L
T=3.20,MARK M
T=3.25,MARK N
T=3.30,MARK P
T=3.35,MARK Q
T=3.40,MARK R
T=3.45,MARK S
T=0.95-1.05,NO MARK
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=71.1
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.85-1.90,MARK D-1
T=1.95-2.00,MARK E-1
T=1.75-1.80,MARK C-1
T=2.05-2.10,MARK F-1
T=1.86,MARK 11
T=1.92,MARK 12
T=1.98,MARK 13
T=2.04,MARK 14
T=2.10,MARK 15
T=1.80-1.85,MARK D
T=1.90-1.95,MARK E
T=2.00-2.05,MARK F
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
33332GEAR, 2ND
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
PORTUGAL SPEC
main33032-26030iLXH22,RCH18,28..DSL,EFI;RCH12..(03S,05S,06S)..MTM;LXH12,RCH22..STD..(DSL,EFI)199706-199708
sub33032-60081
sub33032-60111
33349WASHER, 5TH GEAR THRUST
33355RACE, 1ST GEAR BEARING INNER
PORTUGAL SPEC
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
33362HUB, TRANSMISSION CLUTCH, NO.2
PORTUGAL SPEC
33364SLEEVE, TRANSMISSION HUB, NO.2
PORTUGAL SPEC
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
NO.1
NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
NO.1
NO.2
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
PORTUGAL SPEC
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
T=1.07,OD=62
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.10-2.15
T=2.20-2.25
T=2.05-2.10
T=2.15-2.20
T=2.25-2.30
T=2.30-2.35
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=2.85,MARK A
T=2.90,MARK B
T=2.95,MARK C
T=3.00,MARK D
T=3.05,MARK E
T=3.10,MARK F,NO.1
T=3.15,MARK G,NO.1
T=1.00,NO.2
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33452STOPPER, REVERSE IDLER GEAR SHAFT
9161160820
main91611-60820
