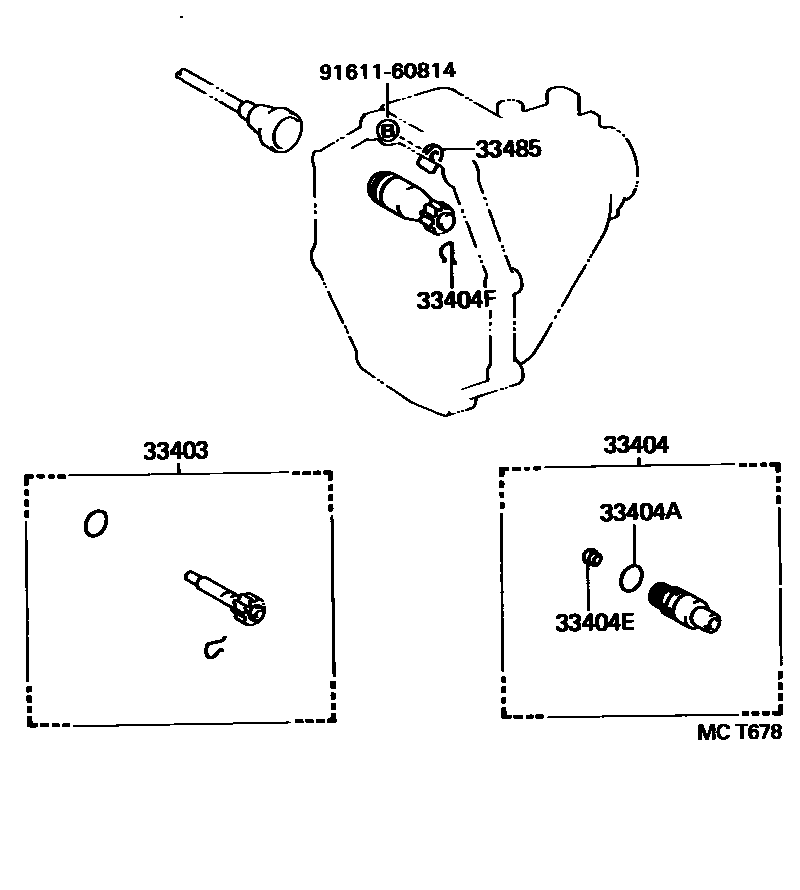

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1G55,G56,G58,R151,W59 0002 1G55,G56,R151,W59 0004 1R151,R151F

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29125iLXH12,22,RCH13,23..MTM..(EFI,TD)199907-200108

N=32,MARK 32:10

main33403-29305iLXH18199608-199708

N=22,MARK 22:7

main33403-29315iRCH13,23200108-200605

N=32,MARK 32:10

main33403-39295iKLH18,28200108-200311

N=18,MARK 18:6

main33403-39305iRCH12,19,22,29200108-200311

N=19,MARK 19:6

main33403-39355iKLH12,22200608

N=31,MARK 31:10

main33482-29186iRCH18199608-199708

N=20,MARK 20:6

main33482-39025iLXH18,28,RCH12,19,22,29199907-200108

N=19,MARK 19:6

main33482-39045iLXH12,22..DSL199907-200108

N=20,MARK 20:6

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iLXH12,22,RCH13,23..MTM..(DX,STD)..(EFI,TD)199508-199910

main33404-35010iLXH18,28;LXH12,22,RCH12,18,19,22,28,29..MTM..(DSL,EFI)199508-199907

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLXH18,28;LXH12,22,RCH12,18,19,22,28,29..MTM..(DSL,EFI)199508-199907

main96711-24030iLXH12,22,RCH13,23..MTM..(DX,STD)..(EFI,TD)199508-199910

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-199910

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLXH1#,2#..MTM199907-200108

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-199910

9161160814

main91611-60814

7 parts on this diagram · 3 diagrams in section
