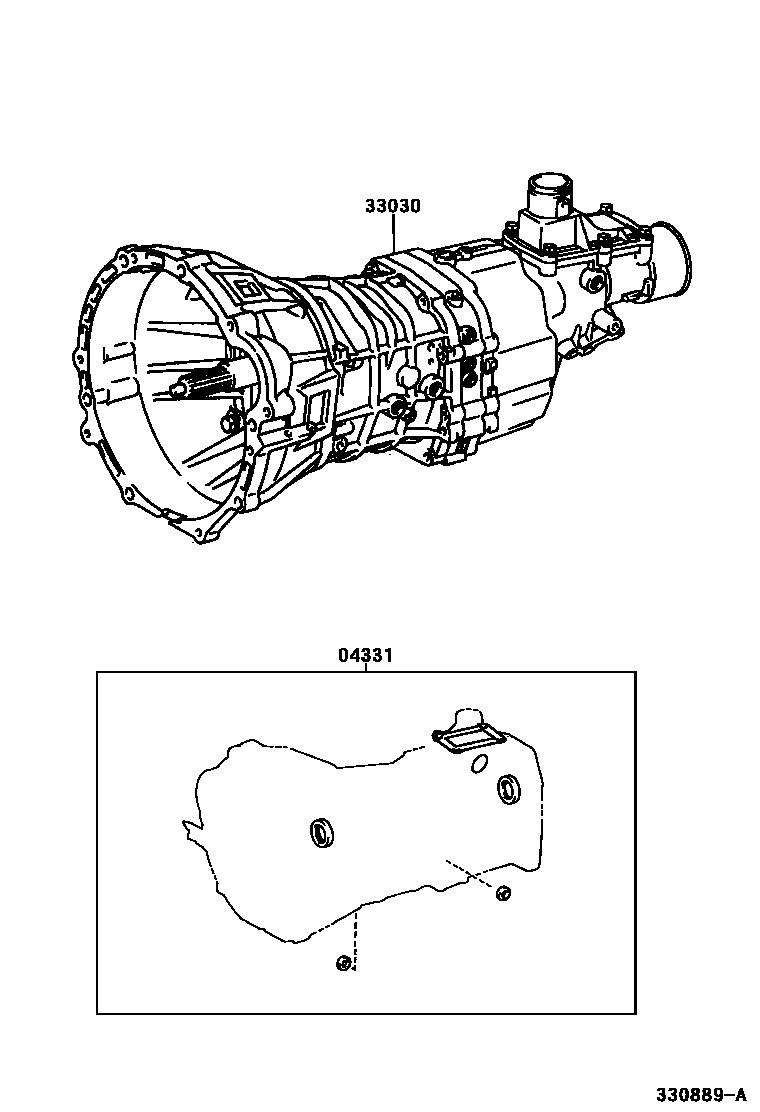

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1W59 0002 1G55,G56,G58 0003 1R151 0006 1R151,R151F

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26030iLXH12,22..DSL199907-200108

sub04331-26031

main04331-26040iRCH18,28199608-199804

main04331-26050iRCH19,29199907-200605

main04331-26080iKLH18,28200706

main04331-26210iKLH12,22201101

sub04331-26211

main04331-35210iRCH13,23..MTM199907-200311

main04331-35220iKLH12,22..MTM..HDCR199907-200311

main04331-35260iRCH13,23200311-200605

main04331-35310iKLH12,22..MTM..HDCR200311-200608

main04331-35350iKLH12,22200706-201101

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-26A50iKLH12,22200608-201005

R151

main33030-26A51iKLH12,22201005-201111

R151

sub33030-26A52

main33030-26A60iKLH18,28200608-201005

R151F

main33030-26A61iKLH18,28201005-201111

R151F

sub33030-26A62

main33030-2F050iRCH12,22199907-200311

G55

main33030-2F060iLXH12,22..STD..DSL199508-199907

G55

main33030-2F070iRCH12,22..(03S,05S,06S)..MTM..EUR199508-199804

G56

main33030-2F080iLXH12..DX..DSL199508-199907

G56

main33030-2F090iRCH12,22..09S199508-199804

G58

main33030-2F100iRCH18,28199608-199804

G56

main33030-2F110iLXH12,22..MTM..TD199907-200108

R151

main33030-2F120iLXH18,28199907-200108

R151

main33030-2F200iRCH13,23..MTM..(DX,STD)199804-199910

W59

main33030-2F210iRCH19,29199907-200605

R151

main33030-2F250iKLH12,22..DCR200108-200608

G56

main33030-2F270iRCH13,23200108-200605

W59

main33030-2F280iKLH12,22..MTM..HDCR200108-200608

R151

main33030-2F290iKLH18,28200108-200608

R151

2 parts on this diagram · 4 diagrams in section
