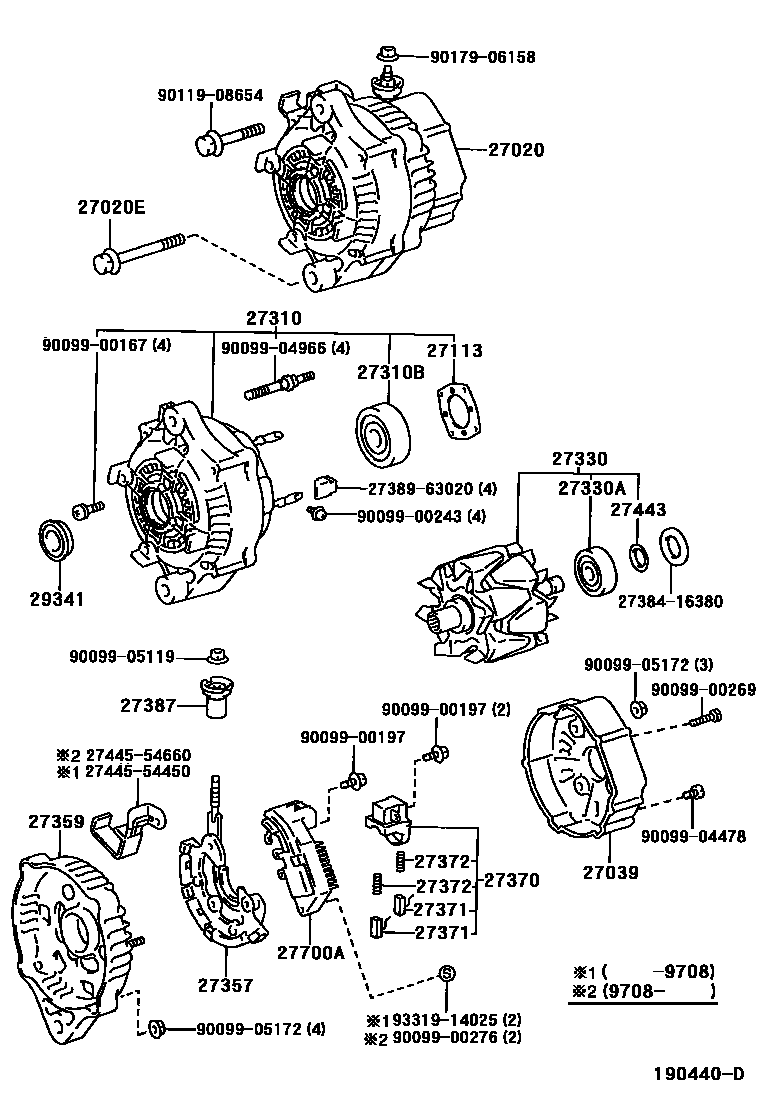

ALTERNATOR

0001 112V 70A 0002 112V 55A,60A,70A 0003 112V 70A 0004 112V 80A 0005 112V 70A 0006 112V 80A

27020ALTERNATOR ASSY

main27060-30030i2KDFTV..KLH1#,2#200108-200405

12V 70A

main27060-30040i2KDFTV..KLH1#,2#200108-200405

12V 80A

sub27060-30050

main27060-30050i2KDFTV..KLH1#,2#200405-200608

12V 80A

main27060-30150i2KDFTV..KLH1#,2#200608-200703

12V 80A

sub27060-30151

main27060-30151i2KDFTV..KLH1#,2#200704-200901

12V 80A

sub27060-30152

main27060-30152i2KDFTV..KLH1#,2#200902-200903

12V 80A

sub27060-30154

main27060-30154i2KDFTV..KLH1#,2#200904

12V 80A

main27060-54140i2L#..LXH1#,2#199508-200108

12V 70A

main27060-75030i2RZE..RCH12..EUR199508-199608

12V 55A

main27060-75040i2RZE..RCH12..ARL199508-199804

12V 60A

main27060-75100i2RZE..RCH1#,2#..EUR199608-199804

12V 70A

main27060-75150i2RZE..RCH12,22199804-200605

12V 70A

27020EBOLT(FOR ALTERNATOR)

main90105-10092i2KDFTV..KLH1#,2#200108-200608

main90105-10221i2RZE..RCH12,22199704-200605

main90105-10282i2RZE..RCH1#,2#199508-199704

main90105-10287i2L#..LXH1#,2#199508-200108

27039COVER, ALTERNATOR REAR END

main27039-16380i2L#,2RZE..LXH1#,2#,RCH1#,2#199701-200108

main27039-30020i2KDFTV..KLH1#,2#200108-200405

COLD SPEC

main27039-30030i2KDFTV..KLH1#,2#200108-200405

main27039-67100i2RZE,3RZFE..RCH1#,23,29..03S,05S,06S,09S199804-199910

main27039-73020i2L#,2RZE..LXH1#,RCH1#199508-199701

sub27039-16380

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-64130i2L#..LXH1#,2#199508-200108

main27312-70200i2RZE..RCH1#,2#199508-199804

main27312-72100i2KDFTV..KLH1#,2#199804-200405

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-30020i2KDFTV..KLH1#,2#200108-200405

COLD SPEC

main27310-54630i2L#..LXH1#,2#199508-200108

sub27310-54500

main27310-75040i2RZE..RCH12199508-199804

main27310-75100i2RZE..RCH1#,2#..EUR199608-199804

main27310-75160i2RZE,3RZFE..RCH1#,23,29..03S,05S,06S,09S199804-199910

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10165i2L#..LXH1#,2#199508-200108

main90099-10178i2RZE..RCH1#,2#199508-199804

main90099-10199i2RZE,3RZFE..RCH1#,23,29..03S,05S,06S,09S199804-199910

main90099-10219i2KDFTV..KLH1#,2#200108-200405

COLD SPEC

main90099-10220i2KDFTV..KLH1#,2#200108-200405

27330ROTOR ASSY, ALTERNATOR

main27330-11260i2RZE..RCH12..EUR199508-199608

sub27330-11250

main27330-30130i2KDFTV..KLH1#,2#200904

main27330-62220i2KDFTV..KLH1#,2#200405-200904

sub27330-30130

main27330-64130i2L#..LXH1#,2#199508-200108

main27330-64570i2RZE..RCH1#,2#199701-199804

main27330-67100i2RZE..RCH12,22199804-200605

main27330-72101i2RZE..RCH1#199508-199701

main27330-74550i2KDFTV..KLH1#,2#200108-200405

COLD SPEC

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i2KDFTV..KLH1#,2#200108-200405

COLD SPEC

main90099-10140i2L#,2RZE..LXH1#,2#,RCH1#,2#199508-200108

main90099-10216i2RZE,3RZFE..RCH1#,23,29..03S,05S,06S,09S199804-200405

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16380i2L#..LXH1#,2#199701-200108

main27357-22200i2KDFTV..KLH1#,2#200405-200608

main27357-55080i2KDFTV..KLH1#,2#200108-200405

COLD SPEC

main27357-63020i2L#,2RZE..LXH1#,RCH1#199508-199701

main27357-63060i2RZE..RCH12..EUR199508-199608

main27357-67100i2KDFTV..KLH1#,2#199804-200605

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i2L#,2RZE..LXH12,RCH12199508-199601

sub27359-16181

sub27384-16380

main27359-16181i2L#,2RZE..LXH1#,RCH1#199601-199701

main27359-16182i2L#,2RZE..LXH1#,2#,RCH1#,2#199701-200108

main27359-30020i2KDFTV..KLH1#,2#200108-200405

COLD SPEC

main27359-75160i2RZE,3RZFE..RCH1#,23,29..03S,05S,06S,09S199804-199910

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i2KDFTV..KLH1#,2#200608

main27370-35060i2RZE,3RZFE..RCH1#,2#199508-200605

main27370-54450i2L#..LXH12199508-199601

sub27370-58320

main27370-58320i2KDFTV..KLH1#,2#199601-200405

main27370-75060i2KDFTV..KLH1#,2#200108-200608

COLD SPEC

27371BRUSH, ALTERNATOR

main27371-70300i2L#,2RZE,3RZFE..LXH1#,2#,RCH1#,2#199508-200405

27372SPRING, ALTERNATOR BRUSH

main27372-63020i2L#,2RZE,3RZFE..LXH1#,2#,RCH1#,2#199508-199910

sub27372-87501

main27372-87501i3RZFE..RCH13,19,23,29..DX,STD199907-200405

27387INSULATOR, TERMINAL

main27387-42021i2KDFTV..KLH1#,2#200108-200405

COLD SPEC

main27387-70170i2L#,2RZE..LXH1#,2#,RCH1#,2#199508-199709

main27387-70171i2L#,2RZE,3RZFE..LXH1#,2#,RCH1#,2#199705-200405

27443COVER, ALTERNATOR BEARING

main27443-63020i2L#,2RZE,3RZFE..LXH1#,2#,RCH1#,2#199508-200405

27700AREGULATOR ASSY, GENERATOR

main27700-30070i2KDFTV..KLH1#,2#200108-200405

main27700-30100i2KDFTV..KLH1#,2#200608

main27700-35040i2RZE..RCH12..EUR199508-200108

main27700-50040i2KDFTV..KLH1#,2#200405-200608

main27700-65010i2L#..LXH12199508-199608

sub27700-35040

main27700-66040i2RZE..RCH1#,2#199508-199804

sub27700-75020

main27700-75020i2RZE,3RZFE..RCH1#,23,29..03S,05S,06S,09S199804-200605

29341SEAL, ALTERNATOR OIL

main29341-64130i2L#..LXH1#,2#199508-200108

2738416380WASHER

main27384-16380

2738963020INSULATOR, TERMINAL

main27389-63020

2744554450

main27445-54450

2744554660

main27445-54660

9009900167

main90099-00167

9009900197

main90099-00197

9009900243

main90099-00243

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905172

main90099-05172

9011908654

main90119-08654

9017906158

main90179-06158

9331914025

main93319-14025

33 parts on this diagram · 6 diagrams in section
