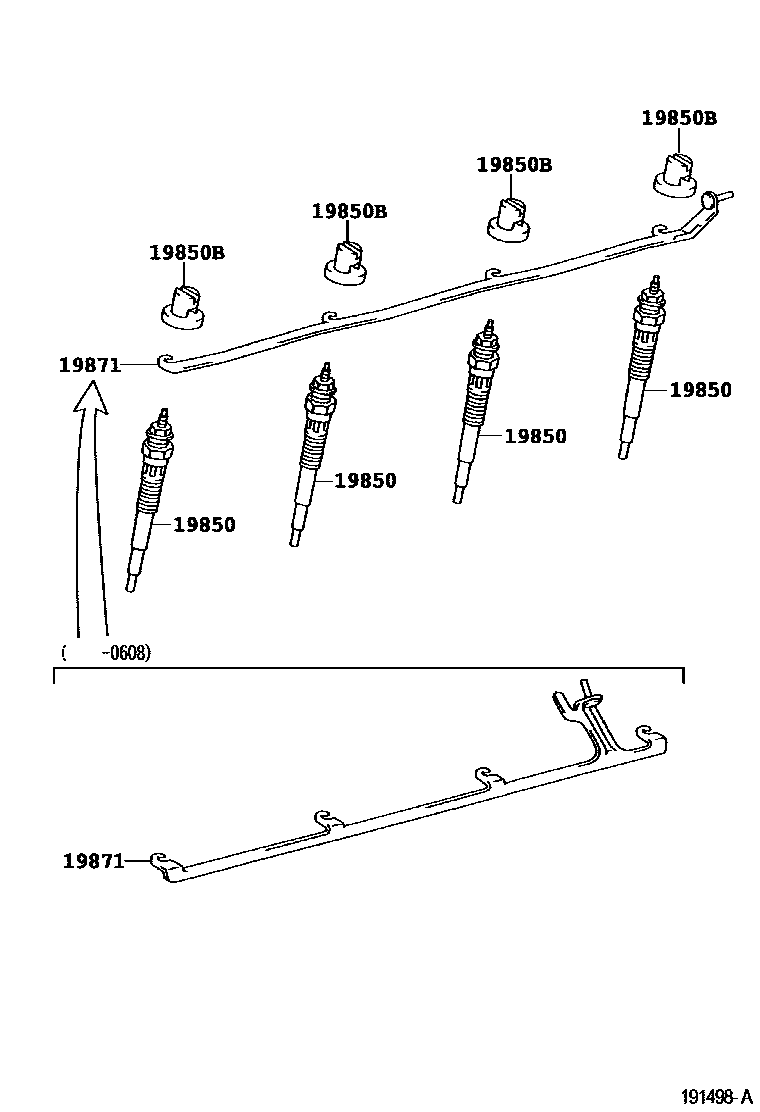

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1

19850PLUG ASSY, GLOW

main19850-05010i2L..LXH12,22199901-199907

*BV-GV=12V-11V,(L)

main19850-30010i2KDFTV..KLH1#,2#200108-200608

*BV-GV=12V-11V

main19850-54090i2L#..LXH1#199508-199708

*BV-GV=12V-11V

main19850-54120i2L..LXH12,22199703-200108

*BV-GV=12V-11V

main19850-54120i2L..LXH12,22199901-199907

*BV-GV=12V-11V,(J)

main19850-54150i2LT..LXH1#,2#199804-200108

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i2KDFTV..KLH1#,2#200108-200608

19871CONNECTOR, GLOW PLUG NO.1

main19871-30020i2KDFTV..KLH1#,2#200108-200608

main19871-30031i2KDFTV..KLH1#,2#200608

sub19871-0L012

main19871-54020i2L#..LXH1#,2#199508-200108

3 parts on this diagram · 5 diagrams in section
