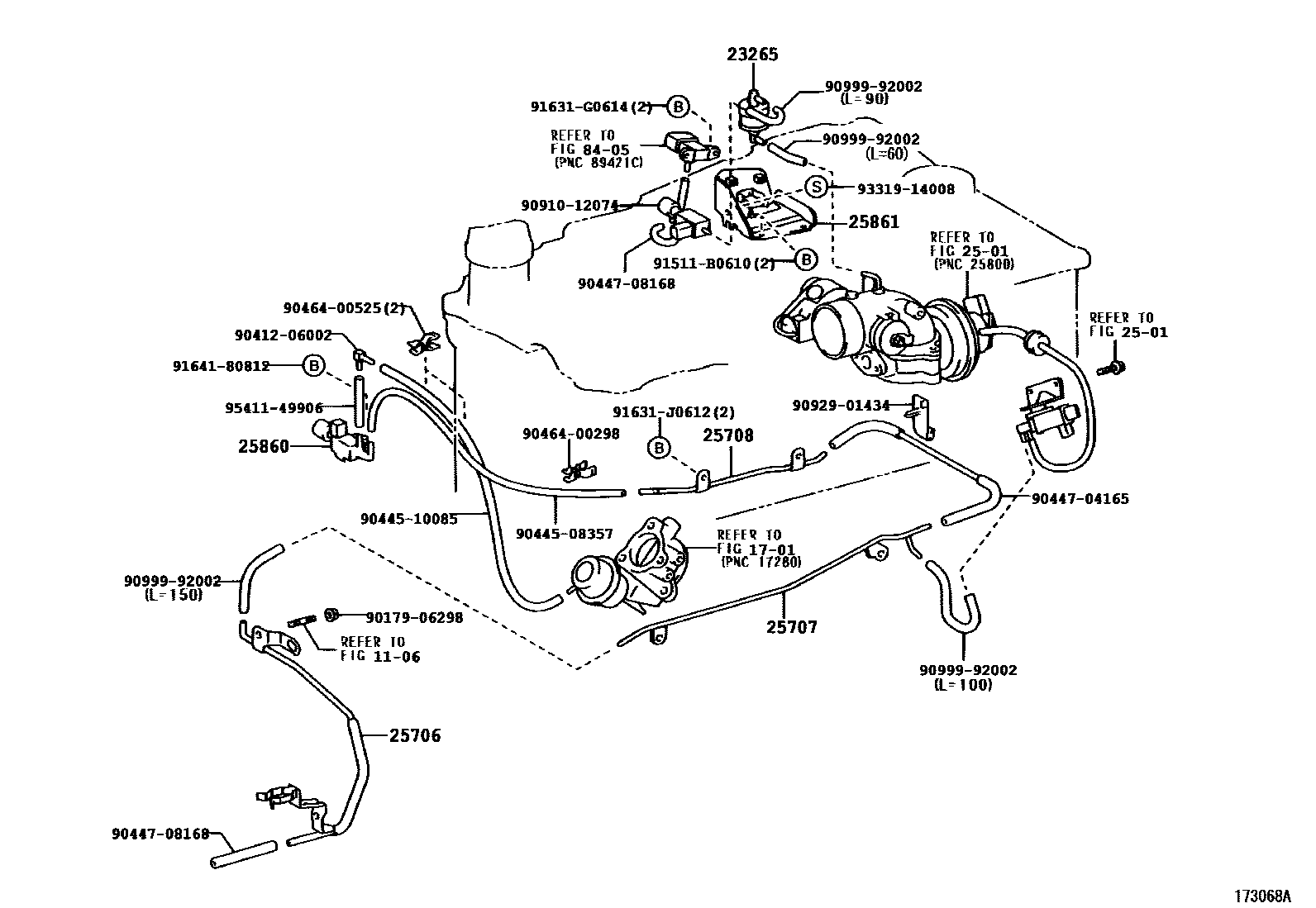

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1106

1701

23265FILTER, GAS, NO.1

main90917-11027i2RZE..RCH12199508-199604

main90917-11033i2LT..LXH1#,2#199508-200108

main90917-11036i2KDFTV..KLH1#,2#200108-200608

main90917-11041i2RZE..RCH12,18,22,28199604-200311

2501

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-30020i2KDFTV..KLH1#,2#200108-200608

main25706-30040i2KDFTV..KLH1#,2#200608-200908

sub25706-30041

main25706-30041i2KDFTV..KLH1#,2#200908

main25706-54070i2LT..LXH1#,2#199804-200108

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-30020i2KDFTV..KLH1#,2#200608

main25707-67011i2KDFTV..KLH1#,2#200108-200608

25708PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3

main25708-30010i2KDFTV..KLH1#,2#200108-200608

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-30040i2KDFTV..KLH1#,2#200108-200608

main25860-75130i2RZE..RCH1#..LHD;2RZE..RCH22..STD;2RZE..RCH12..ARL199508-200311

25861BRACKET, VACUUM SWITCHING VALVE

main25862-30020i2KDFTV..KLH1#,2#200108-200608

8405

9017906298

main90179-06298

9041206002

main90412-06002

9044508357

main90445-08357

9044510085

main90445-10085

9044704165

main90447-04165

9044708168

main90447-08168

9046400298

main90464-00298

9046400525

main90464-00525

9091012074

main90910-12074

9092901434

main90929-01434

9099992002

main90999-92002

91511B0610

main91511-B0610

91631G0614

main91631-G0614

91631J0612

main91631-J0612

9164180812

main91641-80812

9331914008

main93319-14008

9541149906

main95411-49906
