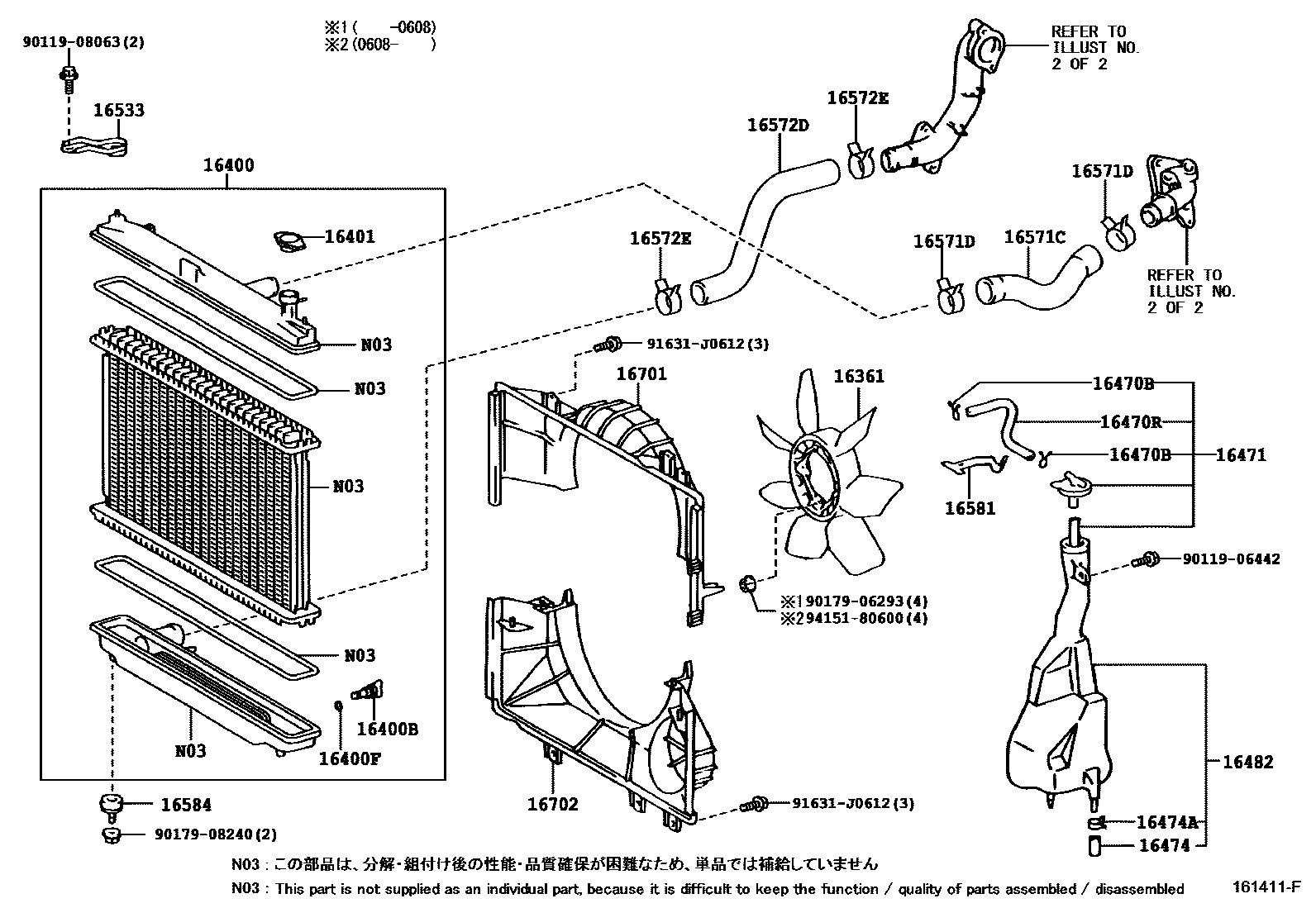

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0014 1 0016 1 0017 1 0018 1

16361FAN

main16361-38010i2RZE..RCH12,22199508-200311

main16361-54020i2L..LXH12,22199508-200108

main16361-54050i2LT..LXH1#,2#199508-199705

main16361-67020i2KDFTV..KLH1#,2#200108-200608

main16361-67030i2LT..LXH1#,2#199705-200108

main16361-75020i3RZFE..RCH13,19,23,29..DX,STD199804-199910

16400RADIATOR ASSY

main16400-30110i2KDFTV..KLH1#,2#..MTM200108-200608

main16400-30120i2KDFTV..KLH12,22..ATM200108-200608

main16400-30240i2KDFTV..KLH1#,2#200608

main16400-5B320i2RZE..RCH1#,2#..MTM..EUR199508-199804

MARK 5B32

main16400-5B330i2LT..LXH1#,2#..MTM199508-199804

TYPE A:REFER TO ILLUSTRATION,MARK 5B33

main16400-5B331i2LT..LXH1#,2#..MTM199804-200108

TYPE B:REFER TO ILLUSTRATION,MARK 5B33

main16400-5B350i2LT..LXH12,22..ATM199508-199804

TYPE A:REFER TO ILLUSTRATION,MARK 5B35

main16400-5B351i2LT..LXH12,22..ATM199804-199907

TYPE B:REFER TO ILLUSTRATION,MARK 5B35

main16400-5B352i2LT..LXH12,22..ATM199907-200108

MARK 5B35

main16400-5B700i2LT..LXH12,22..5DV..MTM199711-199804

MARK 5B70

main16400-5B701i2LT..LXH12,22..5DV..MTM199804-200108

MARK 5B70

main16400-5B710i2LT..LXH12,22..ATM199711-199804

MARK 5B71

main16400-5B711i2LT..LXH12,22..ATM199804-199907

MARK 5B71

main16400-5B712i2LT..LXH12,22..ATM..STD199907-200108

MARK 5B71

main16400-75140i2RZE..RCH12,22199508-200311

main16400-75150i2RZE..RCH12..ATM199508-199804

main16400-75220i3RZFE..RCH13..ATM199804-199907

main16400-75221i3RZFE..RCH13..ATM199907-200108

main16400-75321i2L..LXH12,22199804-200108

main16400-75321i2L..LXH12,22199804-199907

MARK 7532

main16400-75410i3RZFE..RCH13,19,23,29200108-200605

16400BPLUG, RADIATOR DRAIN COCK

main16417-15210i2RZE..RCH12,22199508-200608

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i2L#..LXH1#,2#199508-200608

16401CAP SUB-ASSY, RADIATOR

main16401-54750i2L#..LXH1#,2#199608-199804

TYPE A:REFER TO ILLUSTRATION

main16401-54750i3RZFE..RCH13..ATM199907-200311

main16401-67150i2L#..LXH1#,2#199804-200108

TYPE B:REFER TO ILLUSTRATION

main16401-67150i3RZFE..RCH13,19,23,29..MTM199804-200608

main16401-71010i2RZE..RCH12199508-199907

16470TANK ASSY, RADIATOR RESERVE

main16470-54290i2RZE,3RZFE..RCH1#,2#199508-199910

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2L#..LXH1#,2#199508-200608

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main16472-54290i2RZE..RCH1#,2#199508-199707

main16477-54290i2L#..LXH1#,2#199707-200608

16471CAP SUB-ASSY, RESERVE TANK

main16405-54260i2L#..LXH1#,2#199508-199910

main16405-54261i2L#..LXH1#,2#199907-200608

16474CAP(FOR RADIATOR RESERVE TANK DRAIN)

main16474-54290i2L#..LXH1#,2#199508-200608

16474ACLAMP OR CLIP(FOR RADIATOR RESERVE TANK DRAIN CAP)

main90467-09173i2L#..LXH1#,2#199508-200608

16482TANK SUB-ASSY, RADIATOR RESERVE

main16480-54201i2L#..LXH1#,2#199907-200608

main16480-67020i2KDFTV..KLH1#,2#200608

16533SUPPORT, RADIATOR, UPPER

main16505-54050i2L#..LXH1#,2#199508-200608

16571HOSE, RADIATOR, INLET

main16571-54420i2L#..LXH1#,2#199508-200108

main16571-75060i2RZE..RCH12,18,22,28199508-200311

main16571-75080i3RZFE..RCH13,19,23,29..DX,STD199804-200605

16571CHOSE, RADIATOR, NO.1

main16571-30040i2KDFTV..KLH1#,2#200108-200608

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41007i2KDFTV..KLH1#,2#200410-200608

main90466-41008i2KDFTV..KLH1#,2#200204-200409

main90467-41002i2KDFTV..KLH1#,2#200108-200204

16572HOSE, RADIATOR, OUTLET

main16572-54470i2L#..LXH12,22199508-200108

main16572-54480i2LT..LXH18,28199608-200108

main16572-75060i2RZE..RCH12,22199508-200311

main16572-75070i3RZFE..RCH13,23..DX,STD199804-200605

main16572-75160i3RZFE..RCH19,29199804-200605

16572DHOSE, RADIATOR, NO.2

main16572-30070i2KDFTV..KLH1#,2#200608

main16572-67060i2KDFTV..KLH1#,2#200108-200608

16572ECLIP, RADIATOR HOSE, NO.2

main90466-41007i2KDFTV..KLH1#,2#200410-200608

main90466-41008i2KDFTV..KLH1#,2#200204-200409

main90467-41002i2KDFTV..KLH1#,2#200108-200204

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-54060i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-200608

main16581-67010i2KDFTV..KLH1#,2#200608

16584INSULATOR, RADIATOR MOUNTING

main16584-54010i2KDFTV..KLH1#,2#199508-200608

16701SHROUD SUB-ASSY, FAN

main16711-67061i2KDFTV..KLH1#,2#200108-200608

16702SHROUD SUB-ASSY, FAN, NO.2

main16712-30020i2KDFTV..KLH1#,2#200108-200608

9011906442

main90119-06442

9011908063

main90119-08063

9017906293

main90179-06293

9017908240

main90179-08240

91631J0612

main91631-J0612

9415180600

main94151-80600

29 parts on this diagram · 16 diagrams in section
