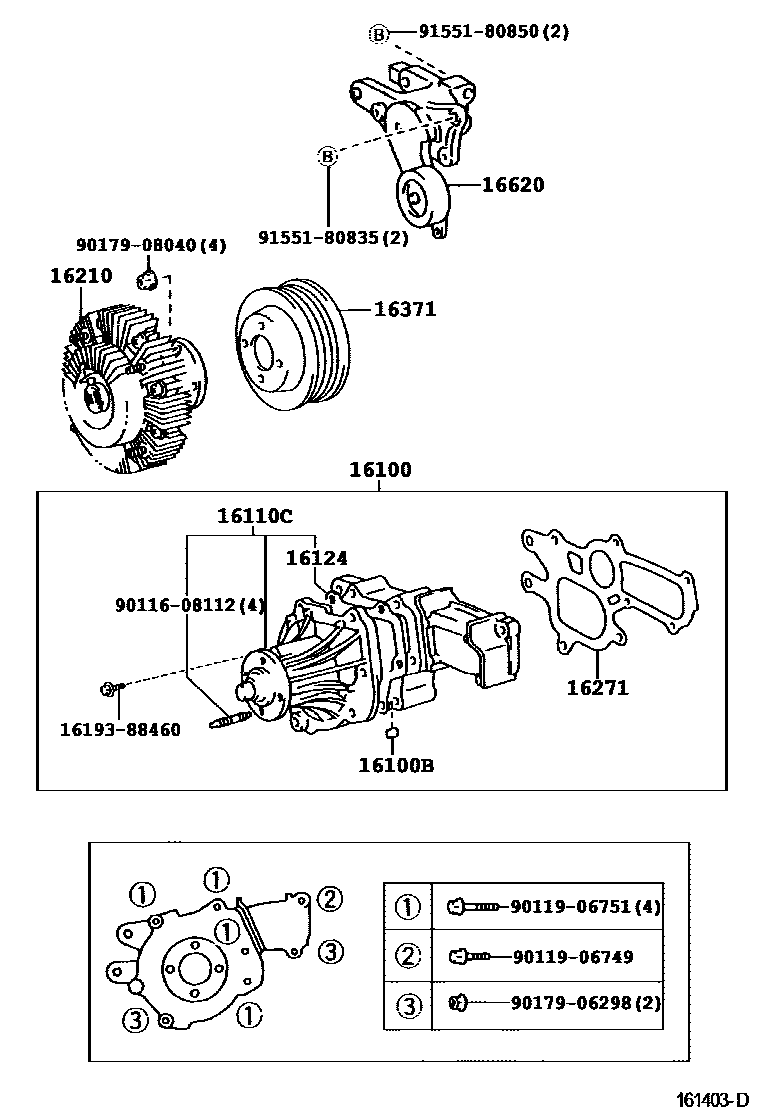

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-59155i2L#..LXH1#199508-199701

sub16100-59255

main16100-59255i2L#..LXH1#,2#199701-200008

sub16100-59256

main16100-59257i2L#..LXH1#,2#200008-200108

main16100-69356i2KDFTV..KLH1#,2#200108-200608

sub16100-69357

main16100-79255i3RZFE..RCH13,19,23,29199804-200308

sub16100-79445

main16100-79265i2RZE..RCH12,22199508-200308

sub16100-79455

main16100-79445i3RZFE..RCH13,19,23,29200308-200605

main16100-79455i2RZE..RCH12,22200308-200311

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040i2KDFTV..KLH1#,2#200108-200810

16110CPUMP ASSY, WATER, W/O COVER

main16110-69045i2KDFTV..KLH1#,2#200108-200608

16124GASKET, WATER PUMP COVER

main16124-67010i2KDFTV..KLH1#,2#200108-200608

main16124-75030i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-200605

16210COUPLING ASSY, FLUID

main16210-30010i2KDFTV..KLH1#,2#200108-200608

sub16210-30011

main16210-54180i2L..LXH12,22199508-200108

main16210-54210i2LT..LXH1#,2#199508-199804

main16210-54220i2LT..LXH1#,2#199804-200108

main16210-75050i2RZE..RCH12,18,22,28199508-200311

main16210-75060i3RZFE..RCH13,19,23,29199804-200605

16271GASKET, WATER PUMP

main16271-54020i2L#..LXH1#,2#199508-200008

sub16271-54030

main16271-54030i2L#..LXH1#,2#200008-200108

main16271-67020i2KDFTV..KLH1#,2#200108-200608

16371PULLEY, FAN

main16371-30020i2KDFTV..KLH1#,2#200108-200608

main16371-54030i2L#..LXH1#,2#199508-200108

main16371-75010i2RZE..RCH12,18,22,28199508-199907

sub16371-75020

main16371-75020i2RZE..RCH12,22199907-200311

main16371-75030i3RZFE..RCH13,19,23,29199804-200605

16620TENSIONER ASSY, V-RIBBED BELT

main16620-30020i2KDFTV..KLH1#,2#200108-200308

sub16620-30030

main16620-30030i2KDFTV..KLH1#,2#200308-200408

sub16620-30031

main16620-30031i2KDFTV..KLH1#,2#200408-200608

main16620-30050i2KDFTV..KLH1#,2#200608

1619388460BOLT, STUD(FOR WATER PUMP COVER)

main16193-88460

9011608112

main90116-08112

9011906749

main90119-06749

9011906751

main90119-06751

9017906298

main90179-06298

9017908040

main90179-08040

9155180835

main91551-80835

9155180850

main91551-80850

16 parts on this diagram · 5 diagrams in section
