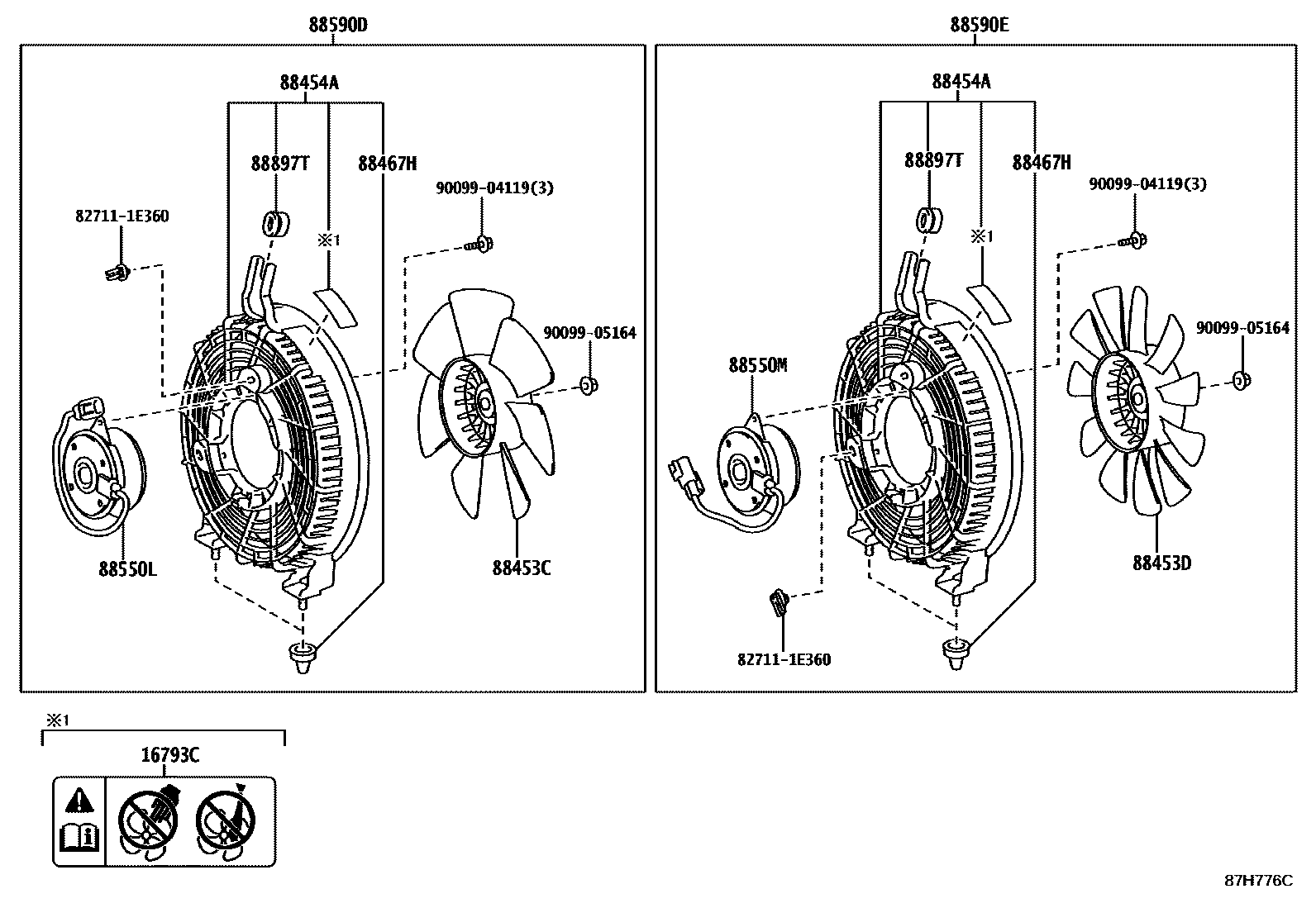

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1W(CONDENSER FAN) 0002 1W(CONDENSER FAN) 0004 1FRONT:SINGLE A/C 0005 1FRONT:SINGLE A/C 0006 1FRONT:SINGLE A/C 0007 1FRONT:DUAL A/C 0008 1FRONT:DUAL A/C 0009 1FRONT:SINGLE A/C 0011 1FRONT:SINGLE A/C 0012 1FRONT:SINGLE A/C 0013 1FRONT:DUAL A/C 0014 1FRONT:DUAL A/C 0015 1FRONT:DUAL A/C 0016 1FRONT:DUAL A/C 0017 1REAR(W(REAR COOLER)) 0018 1REAR(W(REAR COOLER)) 0019 1REAR(W(REAR COOLER)) 0020 1REAR(W(AIR CONDITIONER))

16793CLABEL, COOLING FAN CAUTION

main16793-31070i1GDFTV..GDH303..ARL201907-202506

NEW ZEALAND SPEC

main16793-31070i1GDFTV..GDH303..LHD..H201907

WITHOUT(TROPIC SPEC)&REAR AIR CONDITIONER-WITH(REAR AUTO AIR CONDITIONER)

main16793-31070i1GDFTV..GDH303..LHD..H201907

40B-AREA SPEC

main16793-31070i1GDFTV..GDH300,320..(SHP,SP)..6F..GCC201902

GCC(WITHOUT SAUDI ARABIA,UAE)

main16793-31070i1GDFTV..GDH300,320..(SHP,SP)..6F..GCC201902

JORDAN SPEC

88453CFAN, COOLING, NO.1

main88453-26030iGDH303..H;GDH322..GCC;GDH306..RHD;GDH303..ARL,GCC;GDH300,304,320..5D..(GCC,TH)201902

JORDAN SPEC

main88453-26030iGDH303..H;GDH322..GCC;GDH306..RHD;GDH303..ARL,GCC;GDH300,304,320..5D..(GCC,TH)201902

GCC(WITHOUT SAUDI ARABIA,UAE)

88453DFAN, COOLING, NO.2

main88453-26040iGDH300,303,320,322..GCC201902

JORDAN SPEC

main88453-26040iGDH300,303,320,322..GCC201902

GCC(WITHOUT SAUDI ARABIA,UAE)

88454ASHROUD, FAN

main88454-26120iGDH303..ARL201907-202506

NEW ZEALAND SPEC

main88454-26120iGDH300,303,320,322..GCC201902

JORDAN SPEC

main88454-26120iGDH300,303,320,322..GCC201902

GCC(WITHOUT SAUDI ARABIA,UAE)

main88454-26120iGDH303..H;GDH304,306..RHD201907

40B-AREA SPEC

main88454-26120iGDH303..H;GDH304,306..RHD201907

WITHOUT(TROPIC SPEC)&REAR AIR CONDITIONER-WITH(REAR AUTO AIR CONDITIONER)

88467HCUSHION, CONDENSER BRACKET, NO.1

main88467-20190iGDH303..ARL201907-202506

NEW ZEALAND SPEC

main88467-20190iGDH300,303,320,322..GCC201902

JORDAN SPEC

main88467-20190iGDH300,303,320,322..GCC201902

GCC(WITHOUT SAUDI ARABIA,UAE)

main88467-20190iGDH303..H;GDH304,306..RHD201907

40B-AREA SPEC

main88467-20190iGDH303..H;GDH304,306..RHD201907

WITHOUT(TROPIC SPEC)&REAR AIR CONDITIONER-WITH(REAR AUTO AIR CONDITIONER)

88550LMOTOR ASSY, COOLING FAN, NO.1

main88550-26120iGDH303..H;GDH322..GCC;GDH306..RHD;GDH303..ARL,GCC;GDH300,304,320..5D..(GCC,TH)201902

GCC(WITHOUT SAUDI ARABIA,UAE)

main88550-26120iGDH300..SP..6F..GCC201902

JORDAN SPEC

88550MMOTOR ASSY, COOLING FAN, NO.2

main88550-26130iGDH300,303,320,322..GCC201902

JORDAN SPEC

main88550-26130iGDH300,303,320,322..GCC201902

GCC(WITHOUT SAUDI ARABIA,UAE)

88590DBLOWER ASSY, W/SHROUD, NO.1

main88590-26170iGDH303..H;GDH322..GCC;GDH306..RHD;GDH303..ARL,GCC;GDH300,304,320..5D..(GCC,TH)201902

JORDAN SPEC

main88590-26170iGDH303..H;GDH322..GCC;GDH306..RHD;GDH303..ARL,GCC;GDH300,304,320..5D..(GCC,TH)201902

GCC(WITHOUT SAUDI ARABIA,UAE)

88590EBLOWER ASSY, W/SHROUD, NO.2

main88590-26180iGDH300..SP..6F..GCC201902

GCC(WITHOUT SAUDI ARABIA,UAE)

main88590-26180iGDH300,303,320,322..GCC201902

JORDAN SPEC

88897TGROMMET, COOLER

main88897-26140iGDH300,320..(SHP,SP)..6F..GCC201902

GCC(WITHOUT SAUDI ARABIA,UAE)

main88897-26140iGDH303..H;GDH304,306..RHD201907

40B-AREA SPEC

main88897-26140iGDH303..H;GDH304,306..RHD201907

WITHOUT(TROPIC SPEC)&REAR AIR CONDITIONER-WITH(REAR AUTO AIR CONDITIONER)

main88897-26140iGDH303..ARL201907-202506

NEW ZEALAND SPEC

main88897-26140iGDH300,303,320,322..GCC201902

JORDAN SPEC

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904119

main90099-04119

9009905164

main90099-05164

13 parts on this diagram · 18 diagrams in section
