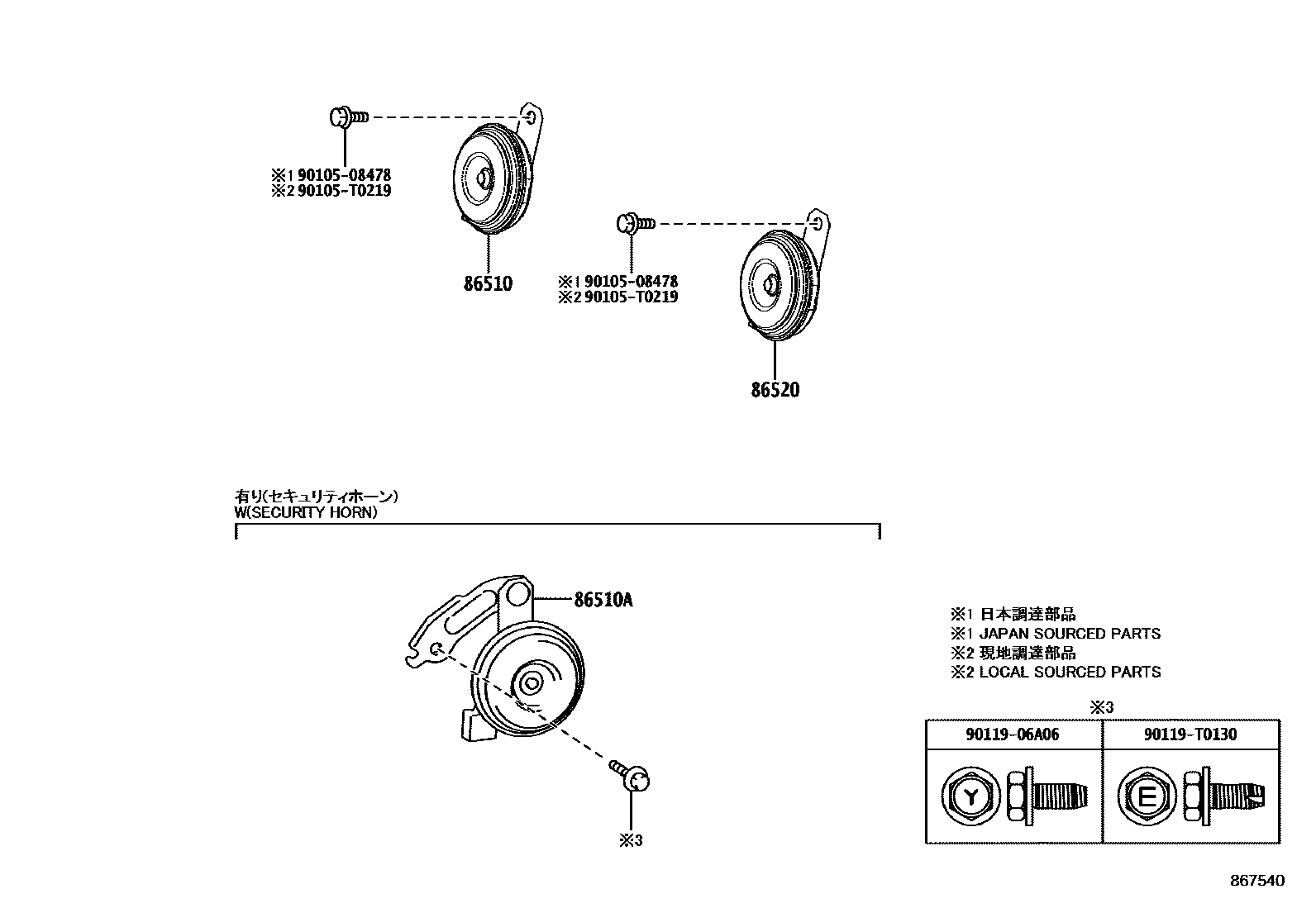

HORN
86510HORN ASSY, HIGH PITCHED
86510AHORN ASSY, SECURITY
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
86520HORN ASSY, LOW PITCHED
main86520-26190iGDH300,301,320..LHD..6FC..D; GDH300,301,322..LHD..6F..D..GEN; GDH322..Q..GEN; GDH322..RHD..D..GEN202006-202107
COSTA RICA SPEC; HONDURUS SPEC; SRI LANKA SPEC
main86520-26200iGDH301,322..RHD..SG..6FC..D..GEN; GDH320,GRH320..LHD..SG;GDH300..RHD..4D..SP..6FC..GEN202208-202301
BHUTAN SPEC
main86520-26201supersedes 86520-20300iGDH300,320..RHD..5D..(PSOB,SHP)..6F; GDH300..LHD..SP..6FC..GEN; GDH301..LHD..SG..6FC..D;GDH322..LHD..GSOB..6FC..D; GRH301..RHD..6F;GDH301..RHD..GSOB..6FC202405
NEW CALEDONIA SPEC; PERU SPEC; SOUTH AFRICA SPEC
main86520-33170iGDH303..LHD..(G,J)..GEN; GDH303..RHD..(G,J)..GEN; GDH303..RHD..J..GEN; GDH306..LHD..J;GDH303,GRH304..H;GDH303,GRH303..GCC201907
COSTA RICA SPEC; EGYPT SPEC; PANAMA,HONDURAS,NICARAGUA SPEC; SOUTH AFRICA SPEC; SRI LANKA SPEC
9010508478
main90105-08478
90105T0219
main90105-T0219
9011906A06
main90119-06A06
90119T0130
main90119-T0130
7 parts on this diagram · 2 diagrams in section
