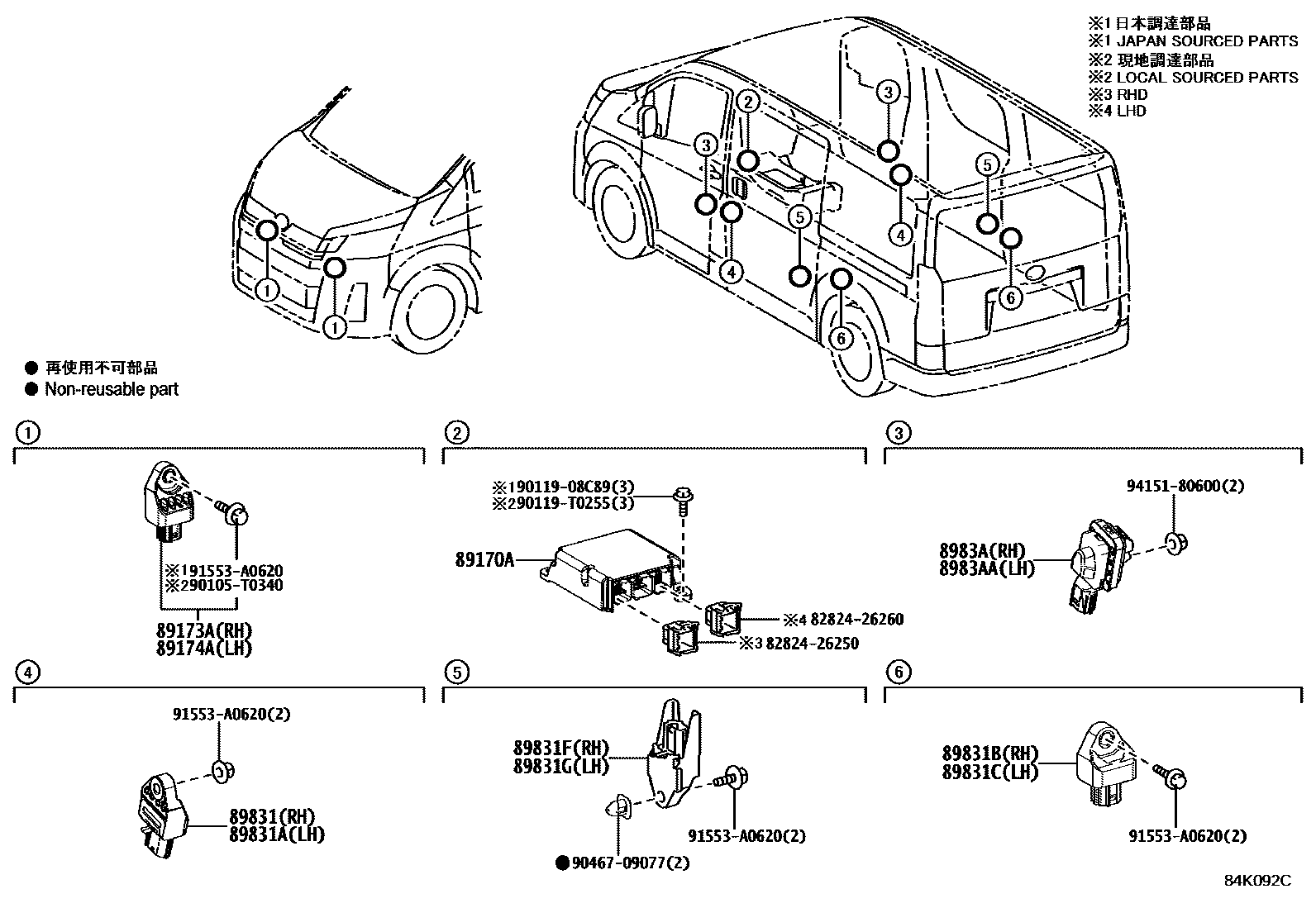

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-26440supersedes 89170-26460iGDH301,322..GSOB..6F..N;GDH322,GRH322..RHD..6F..N; GDH301,GRH301..LHD..SG..6F..D; GDH322..6F..Q;GDH321,GRH321..6F;GDH322..6FC..Q..GCC;GDH322..6FC..P..GEN;GDH300..PSOB..6F..GCC;GDH322..LHD..GSOB..6FC..N;GDH301,320,GRH300,320,322..GCC,TH;GDH300,322..(SG,SHP,SP)..(D,P)..GCC;GDH300..5D..(HPSOB,PSOB)..6FC..(GCC,GEN); GRH300..GEN;GRH320..RHD..GEN;GDH320..SP..6FC..GEN;GDH300..RHD..4D..6F..GEN;GDH320..(GSOB,PSOB)..GEN;GDH300..5D..(PSOB,SP)..GEN;GDH320..LHD..(SG,SP)..6F..GEN;GDH300,GRH320..LHD..(PSOB,SP)..GEN; GRH301..RHD..N;GDH322..RHD..6FC..N;GDH301,322,328..LHD..SG..N; GRH320..RHD..6F..GEN;GDH300..5D..SP..6F..GEN; GRH322..RHD..D;GRH322..LHD..SG..6F..D;GDH301,322,GRH301..D..GEN;GDH300..RHD..PSOB..6FC..GEN201902-202310
EGYPT SPEC&VEHICLE STABILITY CONTROL-WITH&FRONT SEAT-SEPARATE TYPE&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)&SRS AIR BAG-W(DRIVER & PASSENGER); SRS AIR BAG-W(DRIVER & PASSENGER); VEHICLE STABILITY CONTROL-WITH&FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER); VEHICLE STABILITY CONTROL-WITH&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER); VEHICLE STABILITY CONTROL-WITH&SRS AIR BAG-W(DRIVER & PASSENGER); VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL)&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)
main89170-26470supersedes 89170-26650iGDH301,322,GRH301,322..RHD..SG..D..GEN; GDH322,GRH322..RHD..6F..N; GRH301..RHD..N;GDH322..RHD..SG..6FC..N; GRH320..RHD..GEN;GDH300..5D..(PSOB,SP)..GEN;GDH320,GRH300..RHD..6FC..GEN;GDH300..RHD..4D..SP..6F..GEN; GRH320..RHD..GEN;GDH320..RHD..PSOB..GEN;GDH300..RHD..4D..6F..GEN;GDH300..5D..(PSOB,SP)..GEN;GDH320,GRH300..RHD..6FC..GEN201902-202506
VEHICLE STABILITY CONTROL-WITH; VEHICLE STABILITY CONTROL-WITH&FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY); VEHICLE STABILITY CONTROL-WITH&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY); VEHICLE STABILITY CONTROL-WITH&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY)
main89170-26560iGDH300..TH; GRH320..RHD..GEN;GDH320..RHD..PSOB..GEN;GDH300..RHD..4D..6F..GEN;GDH300..5D..(PSOB,SP)..GEN;GDH320,GRH300..RHD..6FC..GEN201902
NCAP-LATIN&VEHICLE STABILITY CONTROL-WITH&FRONT SEAT BELT-CENTER SEAT BELT:3 POINTTYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)
SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)
main89170-26780supersedes 89170-26450iGRH321;GDH301..RHD..6F..N;GDH300..PSOB..6F..GCC;GDH322..LHD..GSOB..6FC..N;GDH300,322..(SG,SHP,SP)..GCC;GDH300..5D..(HPSOB,PSOB)..6FC..(GCC,GEN);GDH301,320,321,GRH300,320,322..GCC,IDN,TH; GRH322..GSOB;GDH301..RHD..6FC..N;GDH300..RHD..PSOB..6FC..GEN202310
VEHICLE STABILITY CONTROL-WITH
SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)
main89170-26510iGDH301,322..LHD..D..GEN; GDH301..LHD..SG..6F..N;GDH322..LHD..SG..N..GEN; GRH300..5D..GEN;GDH300,320..LHD..(PSOB,SP)..GEN; GRH300..5D..GEN;GDH300..LHD..GEN;GDH320..LHD..6F..GEN;GDH320..LHD..5D..6FC..GEN201902-202506
FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY); FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY); SRS AIR BAG-W(DRIVER SEAT SIDE ONLY)
EUROPE N1&NCAP-ASEAN&VEHICLE STABILITY CONTROL-WITH&FRONT SEAT-BENCH TYPE&SRS AIRBAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)
main89170-26650iGDH301,322,GRH301,322..RHD..SG..D..GEN; GRH301..RHD..N;GDH322..RHD..SG..6FC..N; GRH320..RHD..GEN;GDH300..5D..(PSOB,SP)..GEN;GDH320,GRH300..RHD..6FC..GEN;GDH300..RHD..4D..SP..6F..GEN; GRH320..RHD..GEN;GDH320..RHD..PSOB..GEN;GDH300..RHD..4D..6F..GEN;GDH300..5D..(PSOB,SP)..GEN;GDH320,GRH300..RHD..6FC..GEN201902-202506
FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY); FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY); SRS AIR BAG-W(DRIVER SEAT SIDE ONLY)
main89170-26680iGDH303,GRH303..LHD..(G,J)..GEN; GDH303..LHD..(G,J)..GEN; GDH303..LHD..G; GDH303..LHD..H201907-202208
CHILE SPEC&SRS AIR BAG-W(DRIVER & PASSENGER & SRS KNEE AIR BAG); COSTA RICA SPEC&SRS AIR BAG-W(DRIVER & PASSENGER & SRS KNEE AIR BAG); ELSALVADOR SPEC&SRS AIR BAG-W(DRIVER & PASSENGER & SRS KNEE AIR BAG); LATIN AMERICA(GENERAL) SPEC&SRS AIR BAG-W(DRIVER & PASSENGER & SRS KNEE AIR BAG); PANAMA,HONDURAS,NICARAGUA SPEC&SRS AIR BAG-W(DRIVER & PASSENGER & SRS KNEE AIR BAG); PERU SPEC&SRS AIR BAG-W(DRIVER & PASSENGER & SRS KNEE AIR BAG); VIETNAM SPEC&SRS AIR BAG-W(DRIVER & PASSENGER & SRS KNEE AIR BAG)
89173ASENSOR, AIRBAG, FRONT RH
main89173-59325iGDH300..LHD..SP..6F..GEN; GDH300..SHP..6F..GEN;GDH300..RHD..4D..6FC..GEN; GDH321..GEN201902-202310
SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF); SRS AIR BAG-W(DRIVER & PASSENGER); SRS AIR BAG-W(DRIVER SEAT SIDE ONLY)
89174ASENSOR, AIRBAG, FRONT LH
89831SENSOR, SIDE AIRBAG, RH, NO.1
89831ASENSOR, SIDE AIRBAG, LH, NO.1
89831BSENSOR, SIDE AIRBAG, RH, NO.2
89831CSENSOR, SIDE AIRBAG, LH, NO.2
89831FSENSOR, SIDE AIRBAG, RH, NO.3
89831GSENSOR, SIDE AIRBAG, LH, NO.3
8983ASENSOR, SIDE AIRBAG PRESSURE, RH
main8983A-33010iGDH300..TH;GDH320..SP..6F..GEN;GDH300,328..LHD..6F..(GEN,PH); GDH304..GEN;GDH300,303,320,GRH300,303,320..ARL201902-202012
SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)
8983AASENSOR, SIDE AIRBAG PRESSURE, LH
main8983A-33010iGDH300..TH;GDH320..SP..6F..GEN;GDH300,328..LHD..6F..(GEN,PH); GDH304..GEN;GDH300,303,320,GRH300,303,320..ARL201902-202012
SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)
8282426250CONNECTOR, WIRING HARNESS
main82824-26250
8282426260CONNECTOR, WIRING HARNESS
main82824-26260
90105T0340
main90105-T0340
9011908C89
main90119-08C89
90119T0255
main90119-T0255
9046709077
main90467-09077
91553A0620
main91553-A0620
9415180600
main94151-80600
19 parts on this diagram · 3 diagrams in section
