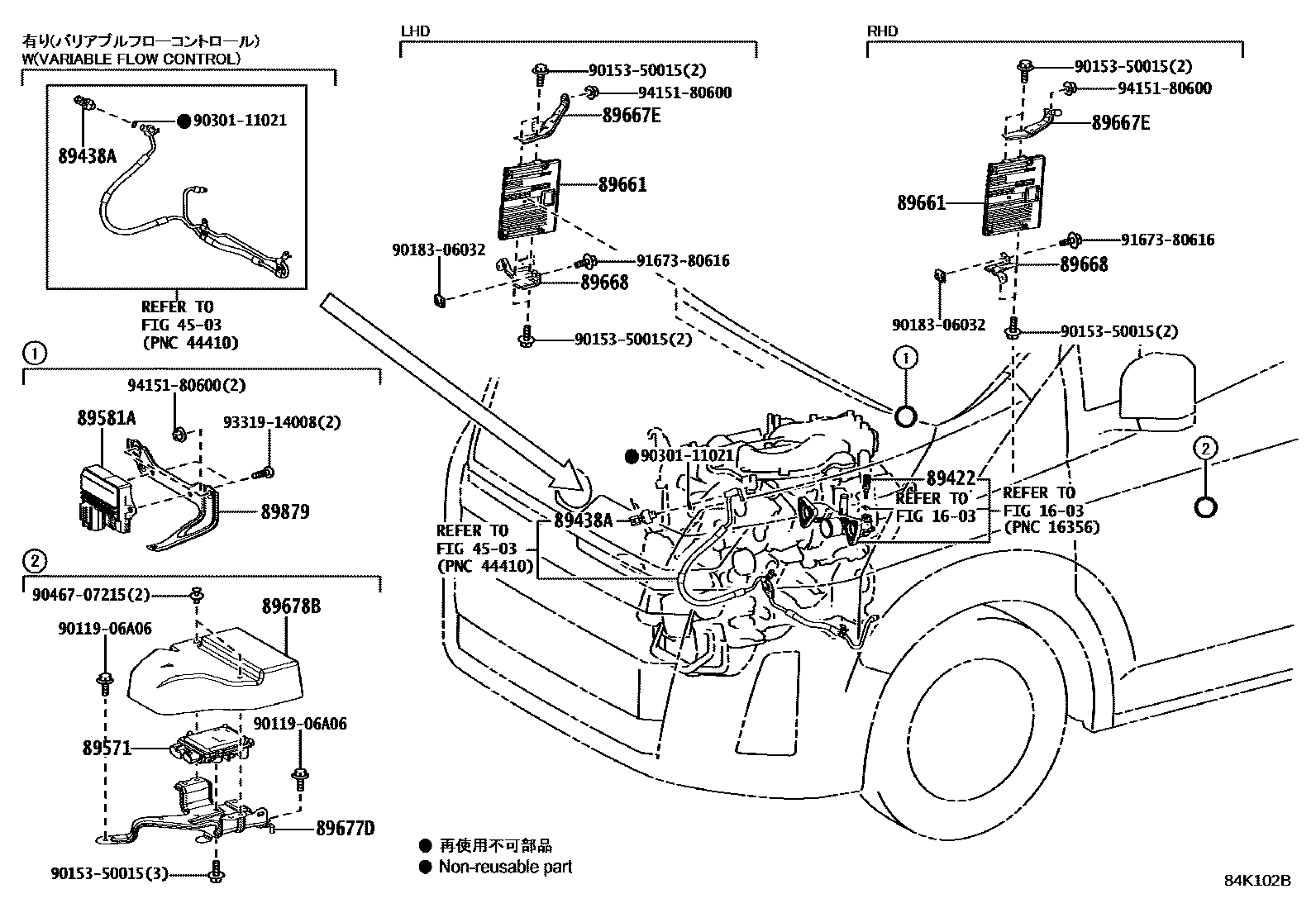

ELECTRONIC FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
4503POWER STEERING TUBE
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89438ASWITCH, POWER STEERING OIL PRESSURE
main89448-34020iGRH303..LHD..J;GRH301..RHD..6FC..N;GRH300,301..RHD..D..GEN;GRH301,320..LHD..SG..6F..D;GRH304,321,322..(D,H,P,Q)..(GCC,GEN);GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC201902
89571COMPUTER, FUEL PUMP CONTROL
89581ADRIVER, AIR INJECTION CONTROL
EXHAUST EMISSION CONTROL-GASOLINE EURO5/6 WITH(AIR INJECTION)*699
89661COMPUTER, ENGINE CONTROL
DENSO
DENSO
DENSO; DENSO,MEXICO SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/02)
main89661-26Q10iGRH303..LHD..J;GRH301..RHD..6FC;GRH320..6FC..GCC;GRH300,304,322..6FC..(D,H,P,Q)..(GCC,GEN)201902
DENSO
DENSO
DENSO
DENSO; DENSO,EXHAUST EMISSION CONTROL-GASOLINE EURO5/6 WITH(AIR INJECTION)*699
DENSO,SOUTH AFRICA SPEC
DENSO,EXHAUST EMISSION CONTROL-GASOLINE EURO5/6 WITH(AIR INJECTION)*699
DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5/6 WITH(AIR INJECTION)*699
DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5/6 WITH(AIR INJECTION)*699
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-26170iGRH303,322..LHD..(D,J,P,Q);GRH301,320,321..LHD..SG..6F..(D,Q);GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC201902
89677DBRACKET, UREA PUMP CONTROL, NO.1
89678BBRACKET, UREA PUMP CONTROL, NO.2
89879BRACKET, INJECTOR DRIVER
9011906A06
main90119-06A06
9015350015
main90153-50015
9018306032
main90183-06032
9030111021
main90301-11021
9046707215
main90467-07215
9167380616
main91673-80616
9331914008
main93319-14008
9415180600
main94151-80600
20 parts on this diagram · 1 diagram in section
