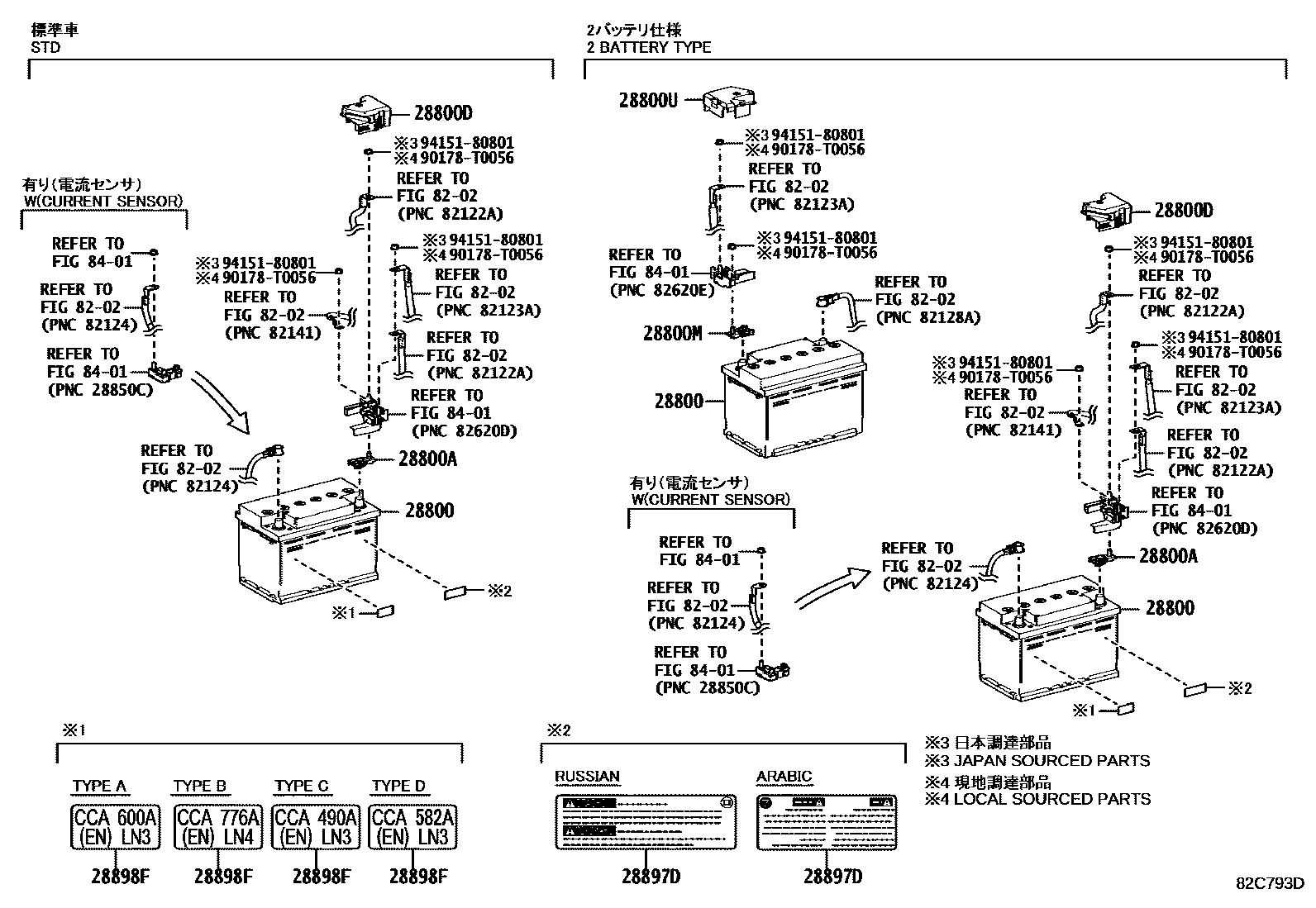

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0L461i1GDFTV..GDH320,322,328..AGT,BZ202401

LN3

main28800-0L502i1GDFTV..GDH322,328..TH,VN201906-202006

LN3,FURUKAWA

main28800-0L503i1GDFTV..GDH322,328..TH,VN202007-202211

LN3,FURUKAWA

main28800-0L504i1GDFTV..GDH322..TH202212

LN3,FURUKAWA

main28800-0L570i1GDFTV..GDH322,328..TH,VN201906-202211

LN3,YUASA

main28800-0L571i1GDFTV..GDH322..TH202212-202404

LN3,YUASA

main28800-0L572i1GDFTV..GDH322..TH202405

LN3,YUASA

main28800-25020×2supersedes 28800-25023i1GDFTV..GDH306..LHD;1GDFTV..GDH322..LHD..6F..P..GEN; 1GDFTV..GDH320..LHD..SP..6F..GEN201903-202206

LN3; LN3,GEORGIA SPEC

main28800-25021×2i1GDFTV..GDH306,322..(G,P)..GEN; 1GDFTV..GDH320..LHD..SP..GEN; 1GDFTV..GDH322..P..GCC;1GDFTV..GDH322..(D,N,Q)..(GCC,GEN);1GDFTV,7GRFKS..GDH300,301,303,304,320,321,328,GRH30#,32#..GCC,GEN,IDN,PH,TH202207-202302

LN3; LN3,GEORGIA SPEC

main28800-25022i1GDFTV..GDH320..LHD..SP..GEN; 1GDFTV..GDH321..GEN202303-202310

LN3; LN3,GEORGIA SPEC

main28800-25023×2i1GDFTV..GDH322..LHD..SG..6F..D..GEN; 1GDFTV..GDH322..P..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..5D..(GCC,GEN);1GDFTV..GDH301..LHD..GSOB..6F;1GDFTV..GDH321..RHD..(GEN,IDN);1GDFTV..GDH322..SG..(D,N,Q)..(GCC,GEN);1GDFTV..GDH300,322..RHD..4D..(GSOB,SP)..6F;1GDFTV..GDH300,301..4D..(PSOB,SG)..(GEN,TH);1GDFTV..GDH300,322..LHD..(GSOB,SP)..(D,N)..GEN;1GDFTV,7GRFKS..GDH303,304,320,328,GRH30#,32#..GCC,GEN,PH,TH; 1GDFTV..GDH322..P..GEN202405

LN3; LN3,MONGOLIA SPEC

main28800-31460i1GDFTV..GDH300..5D..ARL;1GDFTV..GDH300,322..4D..6FC..ARL;1GDFTV..GDH301,303,320,321..6FC..(ARL,NZ)201902-202208

LN4

main28800-31461i1GDFTV..GDH300,301,303,320,321,322..ARL,NZ202209-202403

LN4

main28800-31462i1GDFTV..GDH300,301,303,320,321,322..ARL,NZ202404

LN4

28800ATERMINAL, BATTERY POSITIVE

main90982-05056i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201902-202404

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-26350i1GDFTV..GDH321..GEN201902-202310

28800MTERMINAL, BATTERY POSITIVE

main90982-05056i1GDFTV..GDH306..LHD..J;1GDFTV..GDH322..LHD..6F..P..GEN201903

28800UCOVER, CONNECTOR(FOR BATTERY TERMINAL), NO.2

main82821-26350i1GDFTV..GDH306..LHD..J;1GDFTV..GDH322..LHD..6F..P..GEN201903

28897DLABEL, BATTERY CAUTION

main28897-30010×2i1GDFTV..GDH306..LHD..G201903-202505

main28897-38030i1GDFTV,7GRFKS..GDH300,303,320,322,GRH300,303,320,322..GCC201902

28898FLABEL, BATTERY INFORMATION

main28897-11010i1GDFTV..GDH322..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..5D..(GCC,GEN);1GDFTV..GDH301..LHD..GSOB..6F;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH306,321..RHD..(GEN,IDN);1GDFTV..GDH300,322..4D..(PSOB,SG)..(D,N)..GEN;1GDFTV..GDH300,322..LHD..(GSOB,SP)..(D,N)..GEN;1GDFTV..GDH300,322..RHD..4D..(GSOB,SP)..6F..(GEN,TH);1GDFTV,7GRFKS..GDH303,304,320,328,GRH301,304,322..GCC,GEN,PH,TH;1GDFTV,7GRFKS..GDH301,GRH300,303,320,321..(HPSOB,PSOB,SG,SHP,SP)..(ARL,GCC,GEN,TH)201902

TYPE A:REFER ILLUST.

main28897-11020i1GDFTV..GDH300,301,303,320,321,322..ARL,NZ201902

TYPE B:REFER ILLUST.

main28897-11030i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

TYPE C:REFER ILLUST.

main28897-VR010i1GDFTV..GDH320,322,328..AGT,BZ202401

TYPE D:REFER ILLUST.

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178T0056

main90178-T0056

9415180801

main94151-80801

11 parts on this diagram · 1 diagram in section
