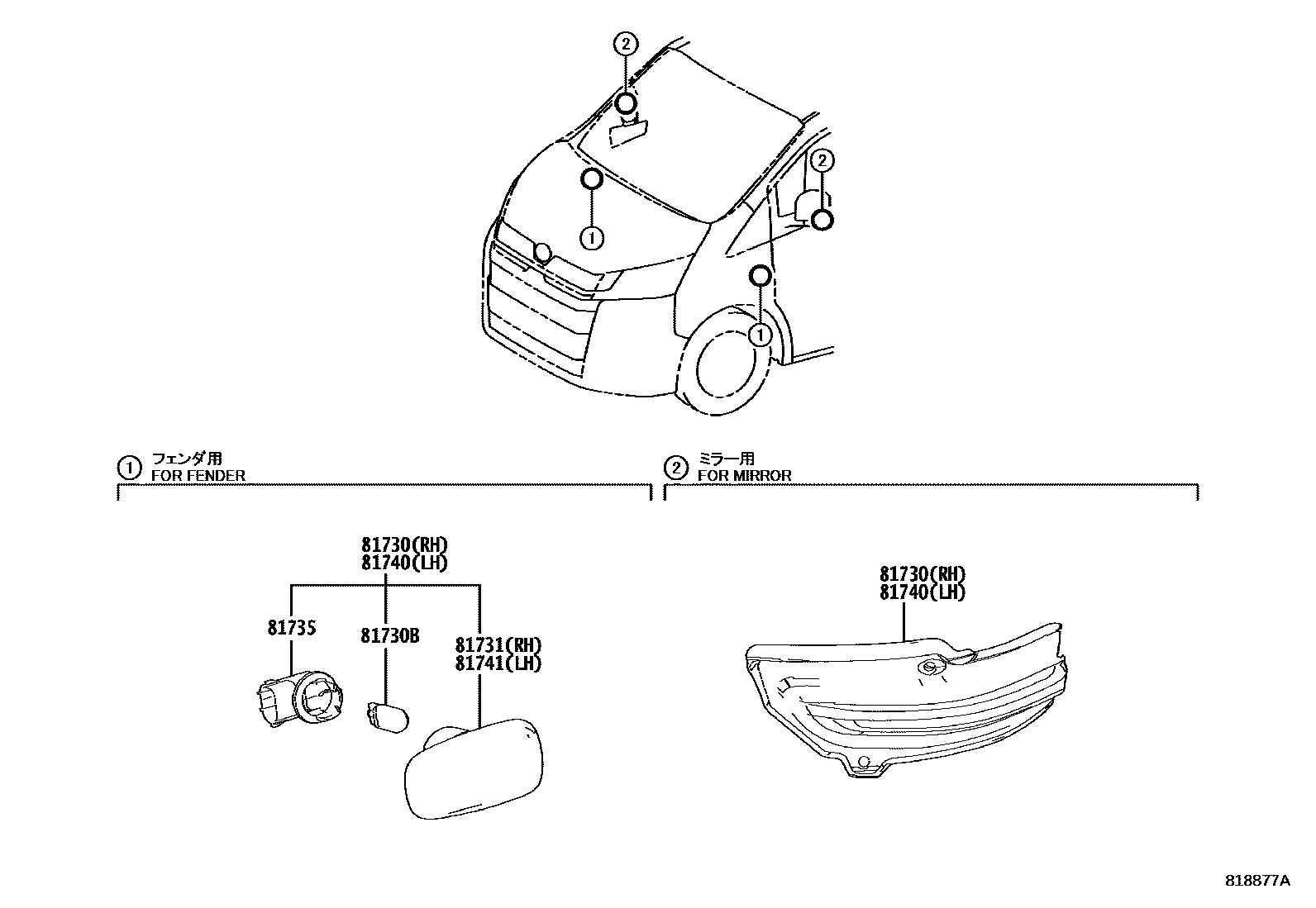

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
81730LAMP ASSY, SIDE TURN SIGNAL, RH
main81730-V3010iGDH300..LHD..SP..GEN;GDH301..GSOB..6FC..D;GDH300..5D..(GCC,GEN);GDH300..4D..PSOB..GEN;GDH300..RHD..4D..SP..6F;GDH301..LHD..GSOB..6F..D;GDH301,GRH300,301..(HPSOB,PSOB,SG,SHP,SP)..D..(GCC,GEN,TH); GDH322..P..GCC;GDH322..SG..D..GEN;GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH300..5D..(GCC,GEN);GDH301..LHD..GSOB..6F..D;GDH300,321..RHD..4D..(SG,SP)..6F;GDH300,322..LHD..(GSOB,SP)..D..GEN;GDH300,301..4D..(PSOB,SG)..D..(GEN,TH);GDH320,328,GRH300,301,320,322..(D,P)..(AGT,BZ,GCC,GEN); GDH322..Q..GCC;GDH301,GRH301,321,322..N,Q;GDH300,301,320,328..ARL,NZ,PH;GDH322..(N,P,Q)..(AGT,ARL,GEN);GDH303,304,321,GRH303,304..6FC; GDH328..PH202310
EUROPE N1&GL PACKAGE; OUTSIDE REAR VIEW MIRROR-*57 & COLORED; OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM
81730BBULB (FOR SIDE TURN SIGNAL LAMP)
12V 5W
81731LENS, SIDE TURN SIGNAL LAMP, RH
81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
81740LAMP ASSY, SIDE TURN SIGNAL, LH
main81740-26040supersedes 81730-51011iGDH300,301,GRH300,301..D..(GCC,GEN,TH); GDH322,GRH322..N,Q;GDH322..LHD..6F..P..GEN;GDH322..6FC..P..(ARL,GEN,NZ);GDH300,301,320,321,328,GRH300,320..ARL,NZ,PH;GDH301,303,304,306,321,GRH301,303,304,321..G,H,J,N,P,Q; GDH322..D..GEN;GDH322..P..GCC;GDH300,301,320,321,GRH300,301,320,322..(D,P)..(GCC,GEN,IDN,TH)201902-202310
OUTSIDE REAR VIEW MIRROR-*57 & COLORED; OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM
main81740-V3010iGDH300..LHD..SP..GEN;GDH301..GSOB..6FC..D;GDH300..5D..(GCC,GEN);GDH300..4D..PSOB..GEN;GDH300..RHD..4D..SP..6F;GDH301..LHD..GSOB..6F..D;GDH301,GRH300,301..(HPSOB,PSOB,SG,SHP,SP)..D..(GCC,GEN,TH); GDH322..P..GCC;GDH322..SG..D..GEN;GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH300..5D..(GCC,GEN);GDH301..LHD..GSOB..6F..D;GDH300,321..RHD..4D..(SG,SP)..6F;GDH300,322..LHD..(GSOB,SP)..D..GEN;GDH300,301..4D..(PSOB,SG)..D..(GEN,TH);GDH320,328,GRH300,301,320,322..(D,P)..(AGT,BZ,GCC,GEN); GDH322..Q..GCC;GDH301,GRH301,321,322..N,Q;GDH300,301,320,328..ARL,NZ,PH;GDH322..(N,P,Q)..(AGT,ARL,GEN);GDH303,304,321,GRH303,304..6FC; GDH328..PH202310
EUROPE N1&GL PACKAGE; OUTSIDE REAR VIEW MIRROR-*57 & COLORED; OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM
81741LENS, SIDE TURN SIGNAL LAMP, LH
6 parts on this diagram · 1 diagram in section
