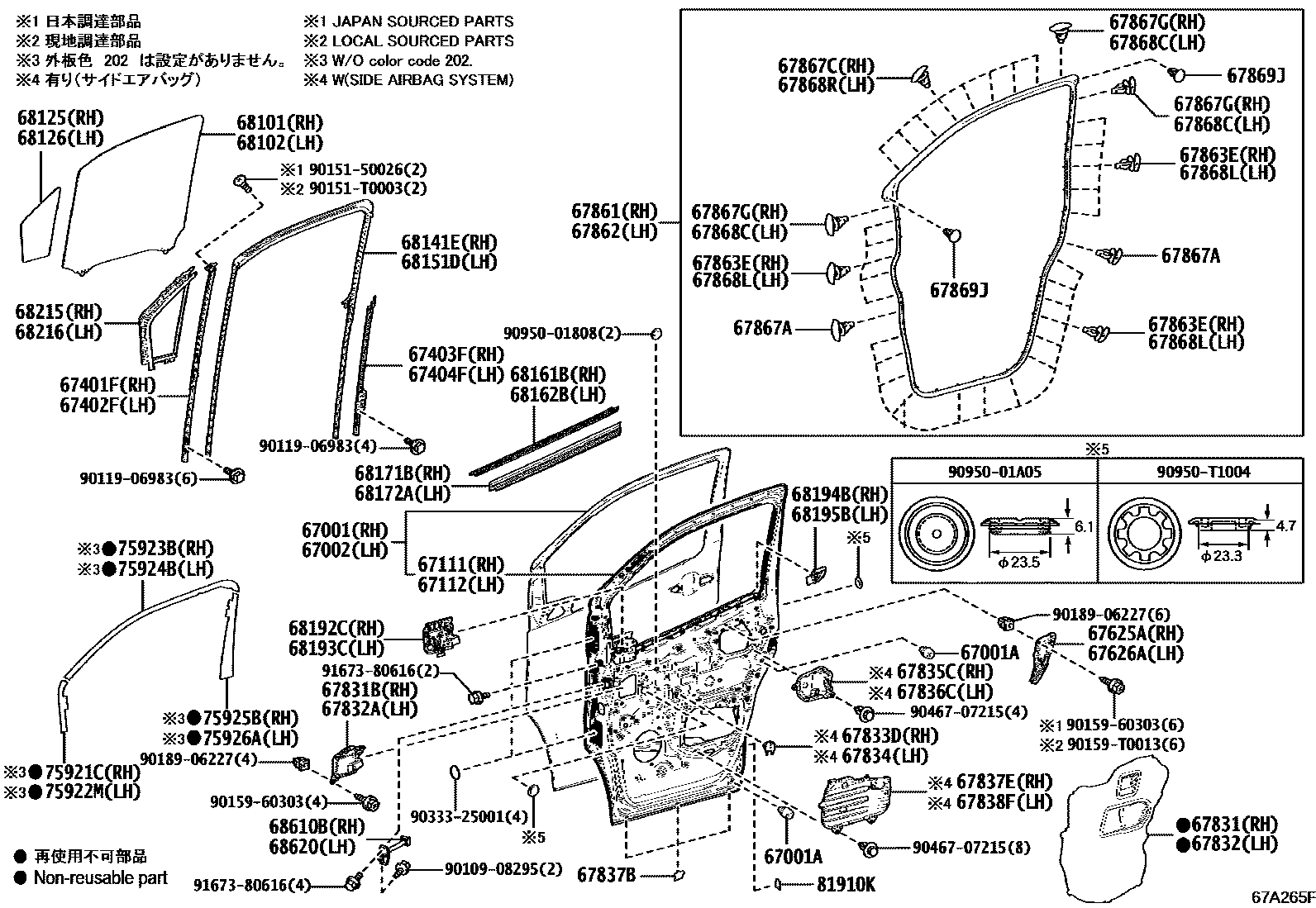

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-26340iGDH306..LHD..G201907-202505

main67001-26350iGDH300..RHD..4D..SP..6FC..GEN201902-202505

main67001-26360iGDH322..Q..GEN201902-202310

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iGDH303,304,306,GRH303,304201902-201908

main90541-09143iGDH322..RHD..(P,Q)..GEN201908-202505

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-26320iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304201907-202505

main67002-26330iGDH322..RHD..P..GEN201902-202505

main67002-26340iGDH322..N;GDH322..6FC..Q..GEN;GDH301,328,GRH301,321,322..N,Q;GDH321,322..(N,Q)..(ARL,GCC,IDN)201902-202310

67111PANEL, FRONT DOOR, OUTER RH

main67111-26080iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304201907-202505

main67111-26090iGDH322..Q..GEN201902-202505

67112PANEL, FRONT DOOR, OUTER LH

main67112-26070iGDH306..LHD..G201907-202505

main67112-26080iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202505

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-26020iGDH322..RHD..(P,Q)..GEN201902-202505

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-26020iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202505

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-26070iGDH322..RHD..(P,Q)..GEN201902-202505

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-26070iGDH322..RHD..(P,Q)..GEN201902-202505

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-26050iGDH322..Q..GEN201902-202505

67626ABRACKET, DOOR TRIM, NO.2

main67626-26030iGDH322..RHD..(P,Q)..GEN201902-202505

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-26110iGDH322..RHD..(P,Q)..GEN201902-202505

main67831-VR040iGDH322..TH202210

67831BCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67851-26100iGDH321..GEN201902-202505

main67851-VR030iGDH322..TH202212

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-26050iGDH322..RHD..(P,Q)..GEN201902-202505

main67832-VR030iGDH322..TH202210

67832ACOVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67852-26070iGDH322..RHD..(P,Q)..GEN201902-202505

main67852-VR040iGDH322..TH202212

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-47010iGDH306..LHD..G201902-202505

main67833-47010iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304;GDH300,320,GRH300,320..ARL201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67833-47010iGDH306..LHD..G201902-202505

main67833-47010iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304;GDH300,320,GRH300,320..ARL201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-26010iGDH300..TH;GDH320..RHD..5D..6F..GEN201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

main67835-26010iGDH306..LHD..G201902-202505

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-26040iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304;GDH300,320,GRH300,320..ARL201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

main67836-26040iGDH306..LHD..G201902-202505

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K090iGDH322..TH;GDH328..VN202011

main67837-48050iGDH322..RHD..P..GEN201902-202505

67837ECOVER, FRONT DOOR SERVICE HOLE, NO.4 RH

main67837-26060iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304;GDH300,320,GRH300,320..ARL201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

main67837-26060iGDH306..LHD..G201902-202505

67838FCOVER, FRONT DOOR SERVICE HOLE, NO.4 LH

main67838-26020iGDH306..LHD..G201902-202505

main67838-26020iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304;GDH300,320,GRH300,320..ARL201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0L020iGDH322..TH;GDH328..VN201906

main67861-26060iGDH322..Q..GEN201902-202505

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0L020iGDH322..TH;GDH328..VN201906

main67862-26060iGDH322..RHD..P..GEN201902-202505

67863ERETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iGDH322..RHD..(P,Q)..GEN201902-202505

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-04034iGDH322..RHD..(P,Q)..GEN201902-202505

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-52020iGDH322..Q..GEN201902-202505

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52040iGDH322..RHD..(P,Q)..GEN201902-202505

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-52040iGDH322..RHD..(P,Q)..GEN201902-202505

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150iGDH322..RHD..P..GEN201902-202505

67868RRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-52030iGDH322..RHD..(P,Q)..GEN201902-202505

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050iGDH322..RHD..(P,Q)..GEN201902-202505

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0L030iGDH322..TH;GDH328..VN201906

main68101-26190iGDH322..RHD..P..GEN201902-202505

main68101-26200iGDH322..6F..Q..GEN201902-202505

main68101-26210iGDH303,GRH303..GCC201907-202310

main68101-V3010iGDH303,GRH303..GCC202310

main68101-VR010iGDH320,328..AGT,BZ202401

main68101-VR020iGDH322..AGT202401

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0L030iGDH322..TH;GDH328..VN201906

main68102-26190iGDH322..RHD..P..GEN201902-202505

main68102-26200iGDH306..LHD..G201902-202505

main68102-26210iGDH303,GRH303..GCC201907-202310

main68102-V3020iGDH303,GRH303..GCC202310

main68102-VR010iGDH320,328..AGT,BZ202401

main68102-VR020iGDH322..AGT202401

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0L010iGDH322..TH;GDH328..VN201906

main68125-26020iGDH322..RHD..P..GEN201902-202505

main68125-26030iGDH303,GRH303..GCC201907-202310

main68125-V3010iGDH303,GRH303..GCC202310

main68125-VR010iGDH320,322,328..AGT,BZ202401

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0L010iGDH322..TH;GDH328..VN201906

main68126-26020iGDH322..Q..GEN201902-202505

main68126-26030iGDH303,GRH303..GCC201907-202310

main68126-V3010iGDH303,GRH303..GCC202310

main68126-VR010iGDH320,322,328..AGT,BZ202401

68141ERUN, FRONT DOOR GLASS, RH

main68141-0L020iGDH322..TH;GDH328..VN201906

main68141-26040iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202505

main68141-26050iGDH322..6F..Q..GEN201902-202505

68151DRUN, FRONT DOOR GLASS, LH

main68151-0L020iGDH322..TH;GDH328..VN201906

main68151-26020iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202505

main68151-26030iGDH322..6F..Q..GEN201902-202505

68161BWEATHERSTRIP, FRONT DOOR GLASS, OUTER RH

main68161-26050iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202505

68162BWEATHERSTRIP, FRONT DOOR GLASS, OUTER LH

main68162-26050iGDH322..RHD..(P,Q)..GEN201902-202505

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-26060iGDH322..RHD..(P,Q)..GEN201902-202505

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-26060iGDH322..RHD..(P,Q)..GEN201902-202505

68192CSEAL, FRONT DOOR BELT, FRONT RH

main68192-26010iGDH322..RHD..(P,Q)..GEN201902-202505

68193CSEAL, FRONT DOOR BELT, FRONT LH

main68193-26010iGDH322..RHD..(P,Q)..GEN201902-202505

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-26010iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH322..LHD..S201902-202505

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-26010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202505

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-26010iGDH321..D..GEN201902-202505

main68215-26020iGDH322..6F..Q..GEN201902-202505

main68215-V3010iGDH303,GRH303..GCC202310

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-26010iGDH300..5D;GDH321..RHD..D;GDH301..GSOB..6FC..D;GDH322..P..(ARL,GCC,NZ);GDH322..LHD..SG..P..GEN;GDH301..LHD..GSOB..6F..D;GDH300..4D..SP..(ARL,TH);GDH320,328,GRH300,3201902-202505

main68216-26020iGDH322..N;GRH322..N,Q;GDH322..Q..(ARL,GCC);GDH306,321..RHD..(G,J,N);GDH306,322..LHD..(J,Q)..GEN;GDH301,303,304,328,GRH301,303,304,321..(G,H,J,N,Q)..(ARL,GEN,PH,TH)201902-202505

main68216-V3010iGDH303,GRH303..GCC202310

68610BCHECK ASSY, FRONT DOOR, RH

main68610-26060iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202505

68620CHECK ASSY, FRONT DOOR, LH

main68610-26060iGDH322..RHD..(P,Q)..GEN201902-202505

75921CTAPE, BLACK OUT, NO.1 RH

main75921-26010iGDH306..LHD..G201907-202505

0 OR 1PIECE,REF.ILL.

75922MTAPE, BLACK OUT, NO.1 LH

main75922-26010iGDH306..LHD..G201907-202505

0 OR 1PIECE,REF.ILL.

75923BTAPE, BLACK OUT, NO.2 RH

main75923-26010iGDH306..LHD..G201907-202505

0 OR 1PIECE,REF.ILL.

75924BTAPE, BLACK OUT, NO.2 LH

main75924-26010iGDH306..LHD..G201907-202505

0 OR 1PIECE,REF.ILL.

75925BTAPE, BLACK OUT, NO.3 RH

main75925-26010iGDH306..LHD..G201907-202505

0 OR 1PIECE,REF.ILL.

75926ATAPE, BLACK OUT, NO.3 LH

main75926-26010iGDH306..LHD..G201907-202505

0 OR 1PIECE,REF.ILL.

81910KREFLECTOR ASSY, REFLEX

main81910-21030iGDH322..RHD..(P,Q)..GEN201902-202209

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

90151T0003

main90151-T0003

9015960303

main90159-60303

90159T0013

main90159-T0013

9018906227

main90189-06227

9033325001

main90333-25001

9046707215

main90467-07215

9095001808

main90950-01808

9095001A05

main90950-01A05

90950T1004

main90950-T1004

9167380616

main91673-80616

70 parts on this diagram · 3 diagrams in section
