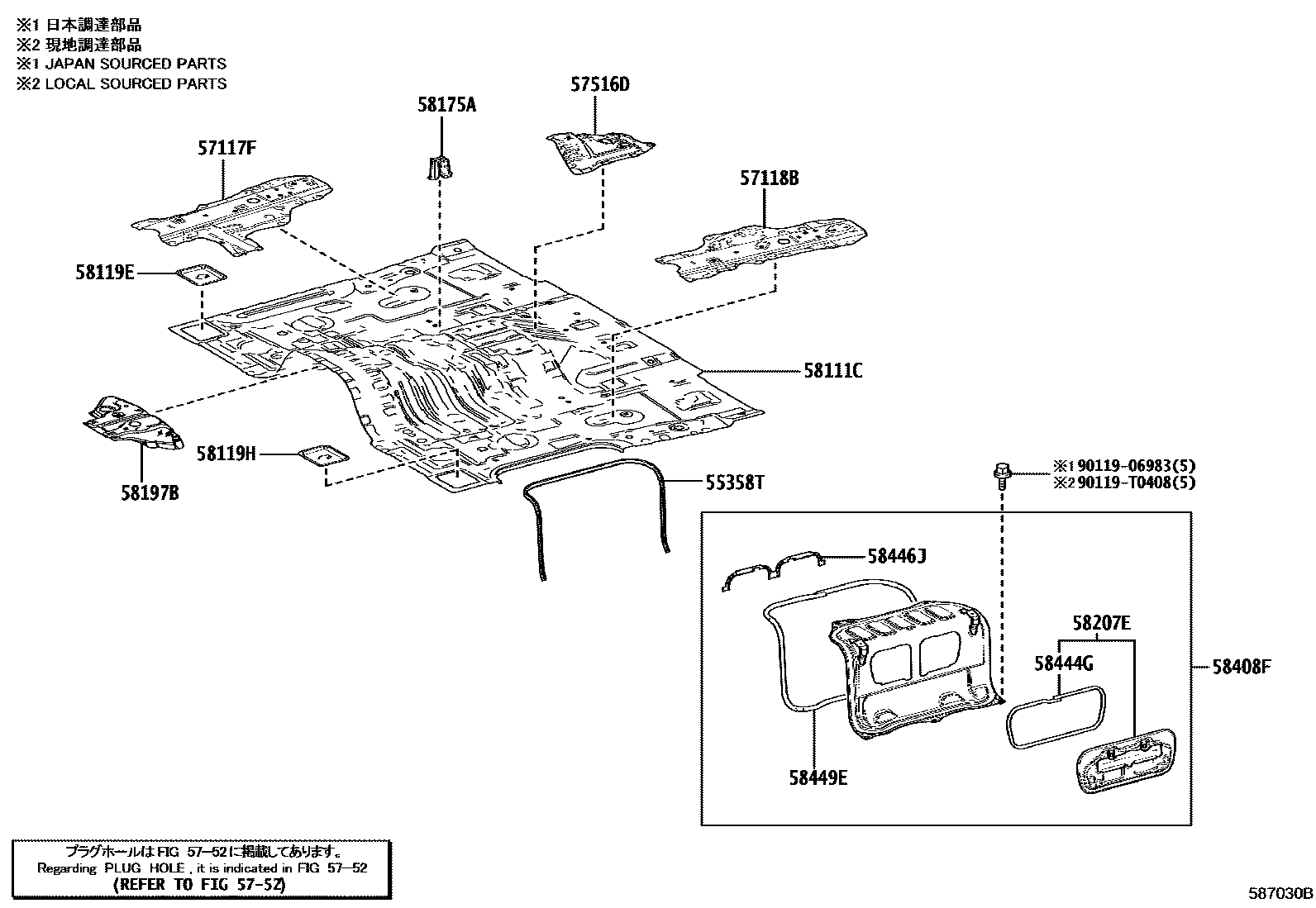

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
55358TPROTECTOR, EDGE
57117FPLATE, FRONT SIDE MEMBER, NO.2 RH
57118BPLATE, FRONT SIDE MEMBER, NO.2 LH
57516DBRACKET, PARKING BRAKE, LH
5752HOLE PLUG
58111CPAN, FRONT FLOOR
main58111-26D80supersedes 58111-26D60iGRH320..LHD..SP;GDH300,301,320,322,GRH300,301,322..LHD..D..(GCC,GEN)201902
GEORGIA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER &PASSENGER)
OCEANIA(GENERAL)SPEC&FRONT SEAT-SEPARATE TYPE
UKRAINE SPEC&REAR CONSOLE BOX-WITHOUT&FRONT SEAT-SEPARATE TYPE&FRONT SEAT BELT-W(SRS SIDE AIR BAG, DRIVER & PASSENGER)&SRS AIR BAG-W(DRIVER & PASSENGER)
EGYPT SPEC&FRONT SEAT-SEPARATE TYPE&REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS)
58119ECOVER, FRONT FLOOR SIDE, FRONT
58119HCOVER, FRONT FLOOR SIDE, FRONT
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58207ECOVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH
58408FCOVER SUB-ASSY, BATTERY SERVICE HOLE, LH
58444GPACKING, BATTERY SERVICE OPENING LID
58446JPROTECTOR, BATTERY SERVICE OPENING LID
58449EPACKING, BATTERY SERVICE HOLE COVER
9011906983
main90119-06983
90119T0408
main90119-T0408
17 parts on this diagram · 30 diagrams in section
