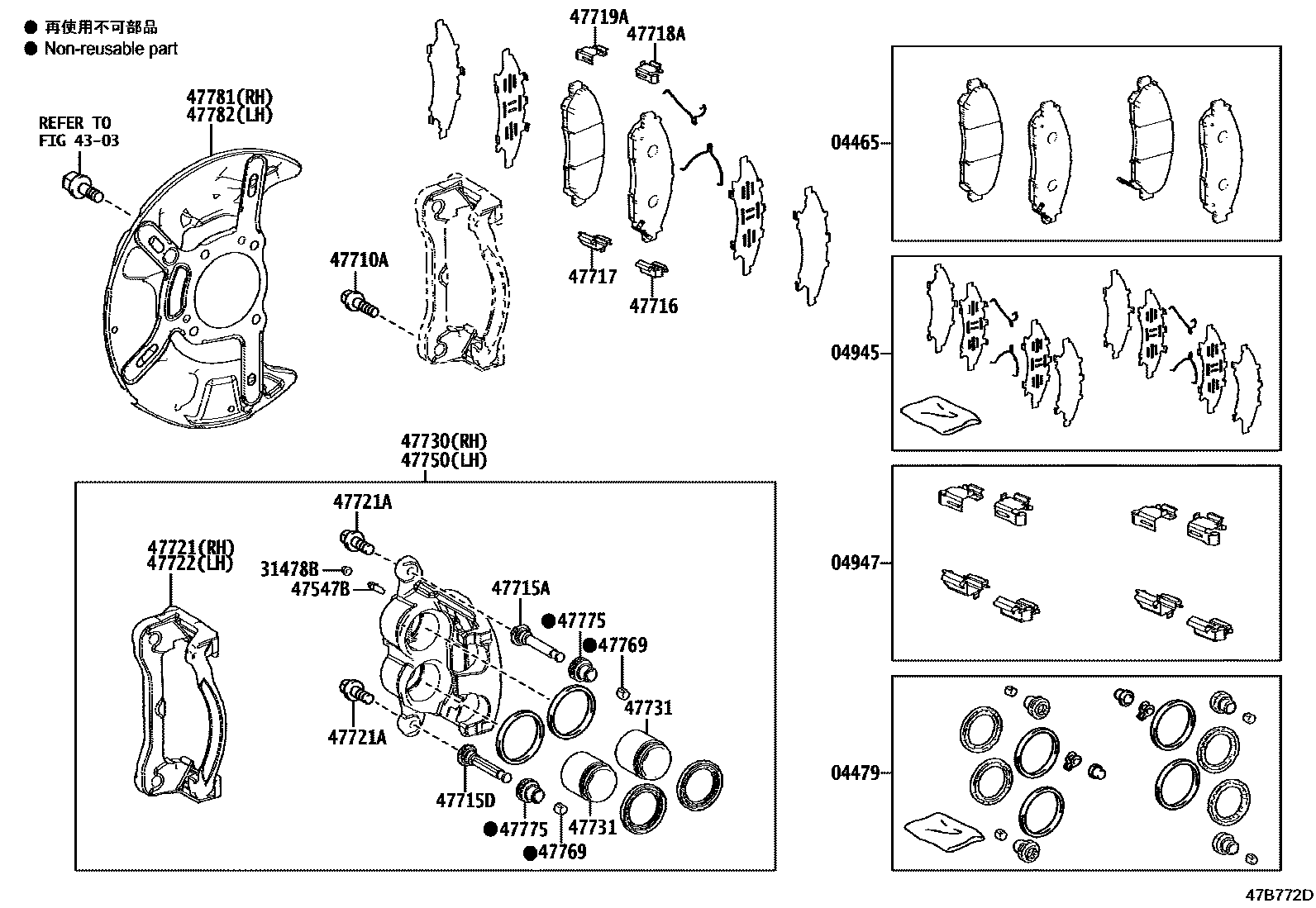

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-26440iGDH322..RHD..(P,Q)..GEN201902-202005

MARK AK NS265H

main04465-26460iGDH306;GDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN202405-202505

MARK AES H2026

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-26060iGDH322..RHD..(P,Q)..GEN201902-202005

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-26230iGDH322..RHD..(P,Q)..GEN201902-202005

04947FITTING KIT, DISC BRAKE, FRONT

main04947-26090iGDH322..RHD..(P,Q)..GEN201902-202005

main04947-26110iGDH306;GDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN202405-202505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGDH322..RHD..(P,Q)..GEN201902-202005

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130×2iGDH322..RHD..(P,Q)..GEN201902-202005

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main91552-C1440×4iGDH322..RHD..(P,Q)..GEN201902-202005

*14-1.5PX40

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-26410×2iGDH322..RHD..(P,Q)..GEN201902-202005

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-26410×2iGDH322..RHD..(P,Q)..GEN201902-202005

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26030×2iGDH306;GDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN202405-202505

main47716-26410×2iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26030×2iGDH306;GDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN202405-202505

main47717-26410×2iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-26410×2iGDH322..RHD..(P,Q)..GEN201902-202005

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-26410×2iGDH322..RHD..(P,Q)..GEN201902-202005

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26410iGDH322..RHD..(P,Q)..GEN201902-202005

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-BA001×4iGDH322..RHD..(P,Q)..GEN201902-202005

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26410iGDH322..RHD..(P,Q)..GEN201902-202005

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26410iGDH322..RHD..(P,Q)..GEN201902-202005

47731PISTON, FRONT DISC BRAKE

main47731-26410×4iGDH322..RHD..(P,Q)..GEN201902-202005

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26410iGDH322..RHD..(P,Q)..GEN201902-202005

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-26410×4iGDH322..RHD..(P,Q)..GEN201902-202005

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-26410×4iGDH322..RHD..(P,Q)..GEN201902-202005

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-26030iGDH322..RHD..(P,Q)..GEN201902-202005

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-26030iGDH322..RHD..(P,Q)..GEN201902-202005

24 parts on this diagram · 1 diagram in section
