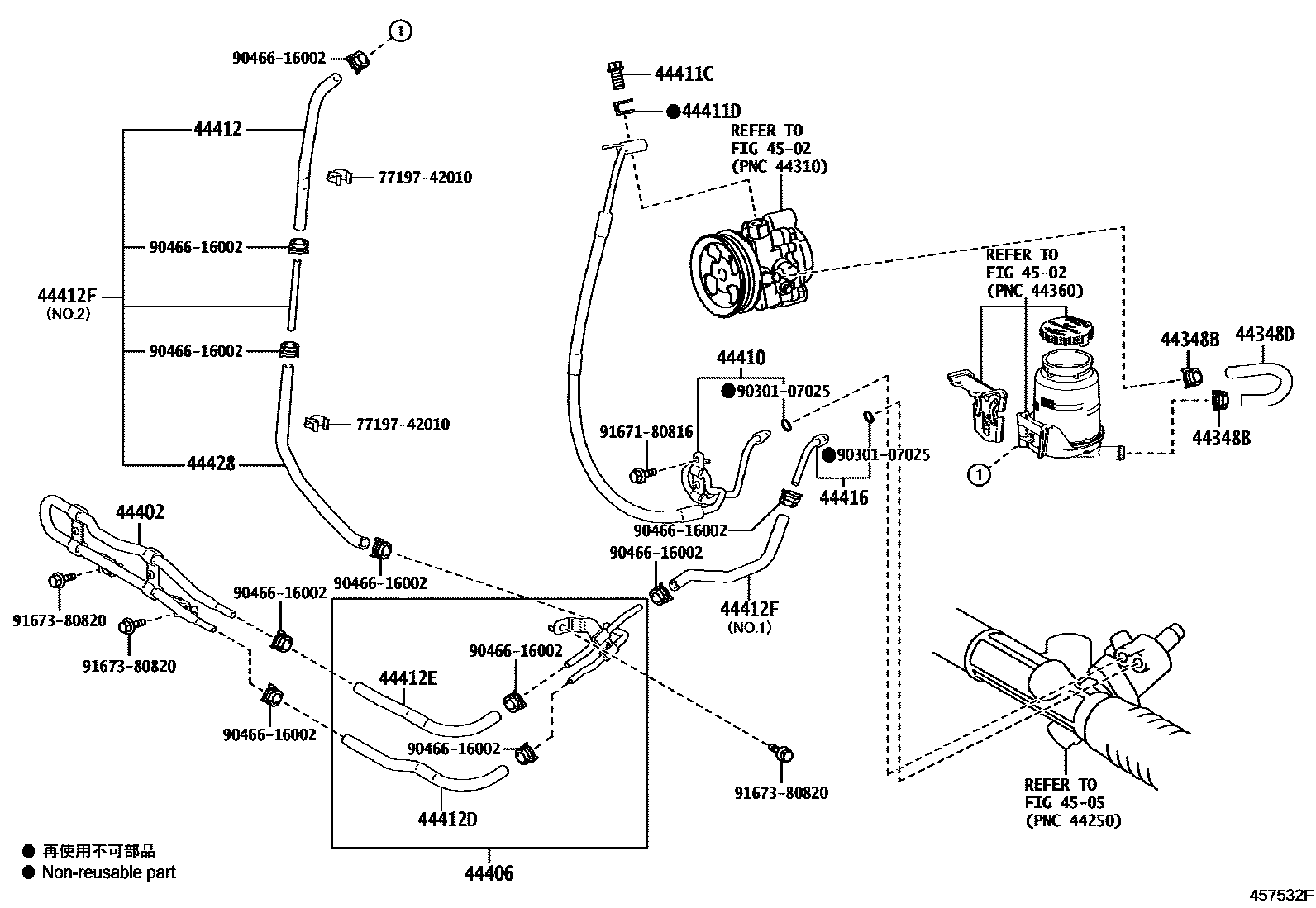

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21010×2iGDH321..GEN201902-202310

44348DHOSE, OIL RESERVOIR TO PUMP, NO.2

main44348-26300iGDH322..RHD..P..GEN202107

main44348-26310iGRH30#,32#201902

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-26030iGDH322..RHD..P..GEN202107

main44402-26040iGDH300,301,303,304,320,328..LHD;GDH306,322..LHD..(D,J,N,P,Q)..(AGT,GCC,GEN)201902

main44402-26050iGRH30#,32#..RHD201902

main44402-26060iGRH300,301,303,32#..LHD..GEN201902

main44402-26070iGRH300,303,320,322..GCC201902

44406TUBE SUB-ASSY, RETURN

main44406-26070iGDH321..GEN201902-202310

main44406-26080iGRH30#,32#..RHD201902

44410TUBE ASSY, PRESSURE FEED

main44410-26880iGDH322..Q..GEN202006-202112

TYPE A:REFER ILLUST.

main44410-26881iGDH322..TH202112

TYPE B:REFER ILLUST.

main44410-26B90iGDH300,301,303,320,321,322..ARL,NZ201902-202107

main44410-26B91iGDH300,301,303,320,321,322..ARL,NZ202107-202506

main44410-26C00iGDH322..LHD..6F;GDH322..6FC..GCC;GDH322..LHD..6FC..(D,N);GDH30#,320,321,328..LHD..(GCC,GEN,PH)201902-202107

main44410-26C01iGDH306..J;GDH300,301,303,304,320,322,328..LHD..(AGT,BZ,GCC,GEN,PH)202107

main44410-26C10iGRH30#,320,322..RHD..GEN201902

main44410-26C20iGRH300,303,320,321..ARL201902-202106

main44410-26C30iGRH300,301,303,32#..LHD201902

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iGDH322..Q..GEN202006

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iGDH322..RHD..(P,Q)..GEN201902-202005

44412HOSE, RETURN

main44428-26030iGRH30#,32#201902

main44428-26050iGDH320..6F;GDH322..GCC,NZ;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH301..LHD..GSOB..6F;GDH306,321..RHD..(GEN,IDN);GDH322..LHD..SG..(P,Q)..GEN;GDH320..6FC..(AGT,BZ,GCC,GEN);GDH300,322..RHD..4D..(GSOB,SP)..6F;GDH300,306..LHD..(SG,SP)..(D,J)..GEN;GDH301,303,304,328..SG..(BZ,GCC,GEN,PH,TH,VN);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH)201902

44412DHOSE, RETURN, NO.1

main44412-26190iGRH300,301,303,32#..LHD201902

main44428-26010×2iGDH322..NZ;GDH320..RHD..6F;GDH322..RHD..GSOB..N;GDH300,322..RHD..4D..(GSOB,SP)..6F;GDH301,320..RHD..(GSOB,SP)..6FC..GEN;GDH300,303,304,306..RHD..5D..(GEN,TH);GDH300,301,321,322..RHD..4D..(PSOB,SG)..(D,N)..(GEN,IDN,TH); GRH30#,32#..RHD;GDH300,301,303,304,320,328..LHD;GDH306,322..LHD..(D,J,N,P,Q)..(AGT,GCC,GEN)201902

44412EHOSE, RETURN, NO.2

main44412-26200iGDH322..RHD..(P,Q)..GEN201902-202005

main44428-26020iGDH321..GEN201902-202310

44412FHOSE, RETURN, NO.3

main44412-26190iGDH300,301,303,304,320,328..LHD;GDH306,322..LHD..(D,J,N,P,Q)..(AGT,GCC,GEN)201902

NO.1

main44412-26200iGDH321..GEN201902-202310

NO.2

main44428-26040iGDH322..Q..GEN202006

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26090iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

44428HOSE, RETURN, NO.2

main44428-26040iGDH321..GEN201902-202310

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

7719742010ORIFICE, FUEL VAPOR

main77197-42010

9030107025

main90301-07025

9046616002

main90466-16002

9167180816

main91671-80816

9167380820

main91673-80820

20 parts on this diagram · 7 diagrams in section
