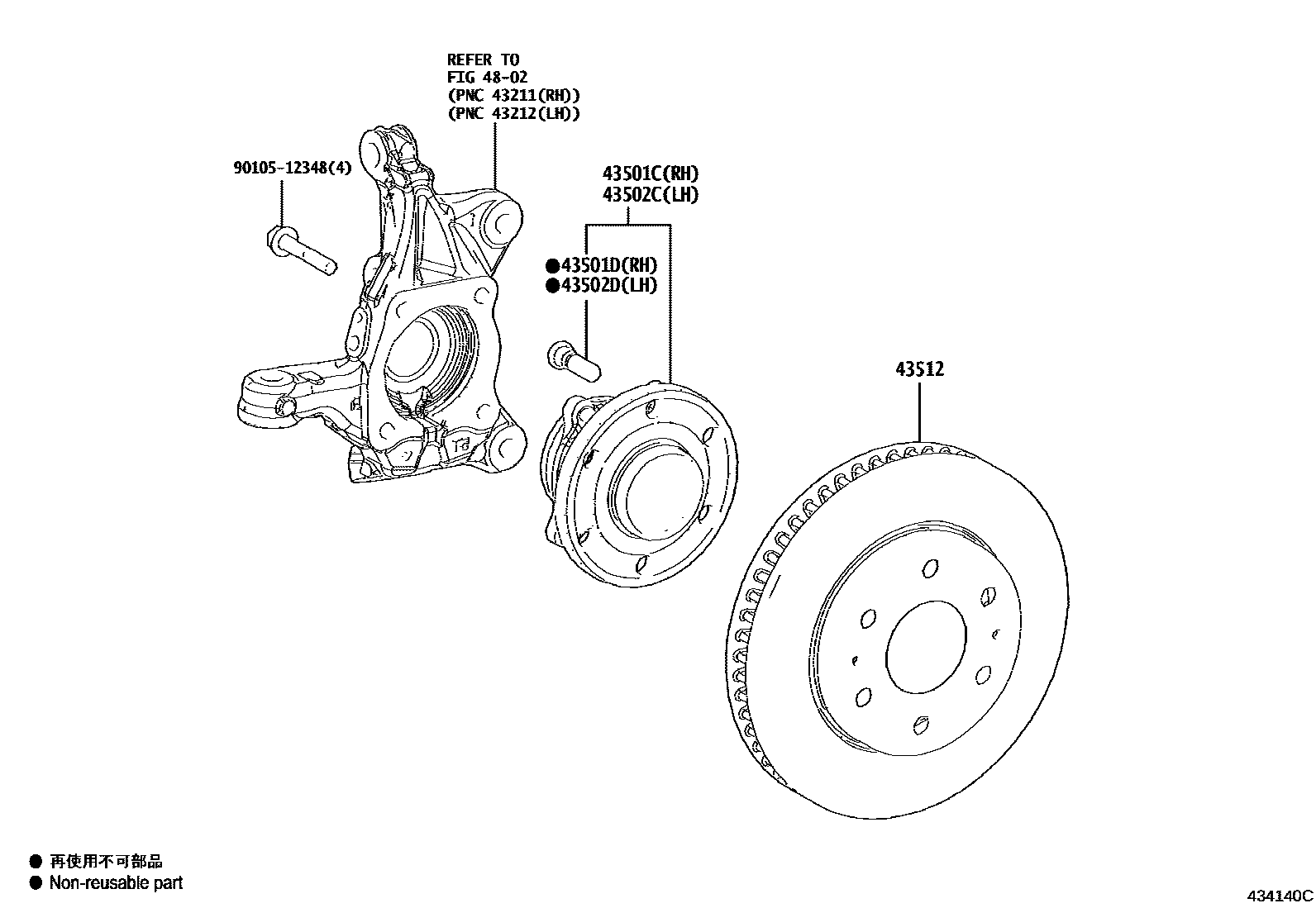

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-26010iGDH300..5D;GDH306..RHD;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH322..LHD..SG..(P,Q)..GEN;GDH300,306..LHD..(SG,SP)..(D,J)..GEN;GDH300,321..4D..(SG,SP)..(ARL,NZ,TH);GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,301,322..4D..(PSOB,SG)..(D,N)..(ARL,GEN,NZ,TH);GDH303,304,320,328,GRH30#,32#..ARL,BZ,GCC,GEN,PH,TH,VN201902

main43550-26020iGDH322..RHD..P..GEN202107

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083×6iGDH322..RHD..(P,Q)..GEN201902-202005

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-26010iGDH321..GEN201902-202310

main43550-26020iGDH322..Q..GEN202006

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083×6iGDH322..RHD..(P,Q)..GEN201902-202005

43512DISC, FRONT

main43512-26200×2iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512348

main90105-12348

7 parts on this diagram · 1 diagram in section
