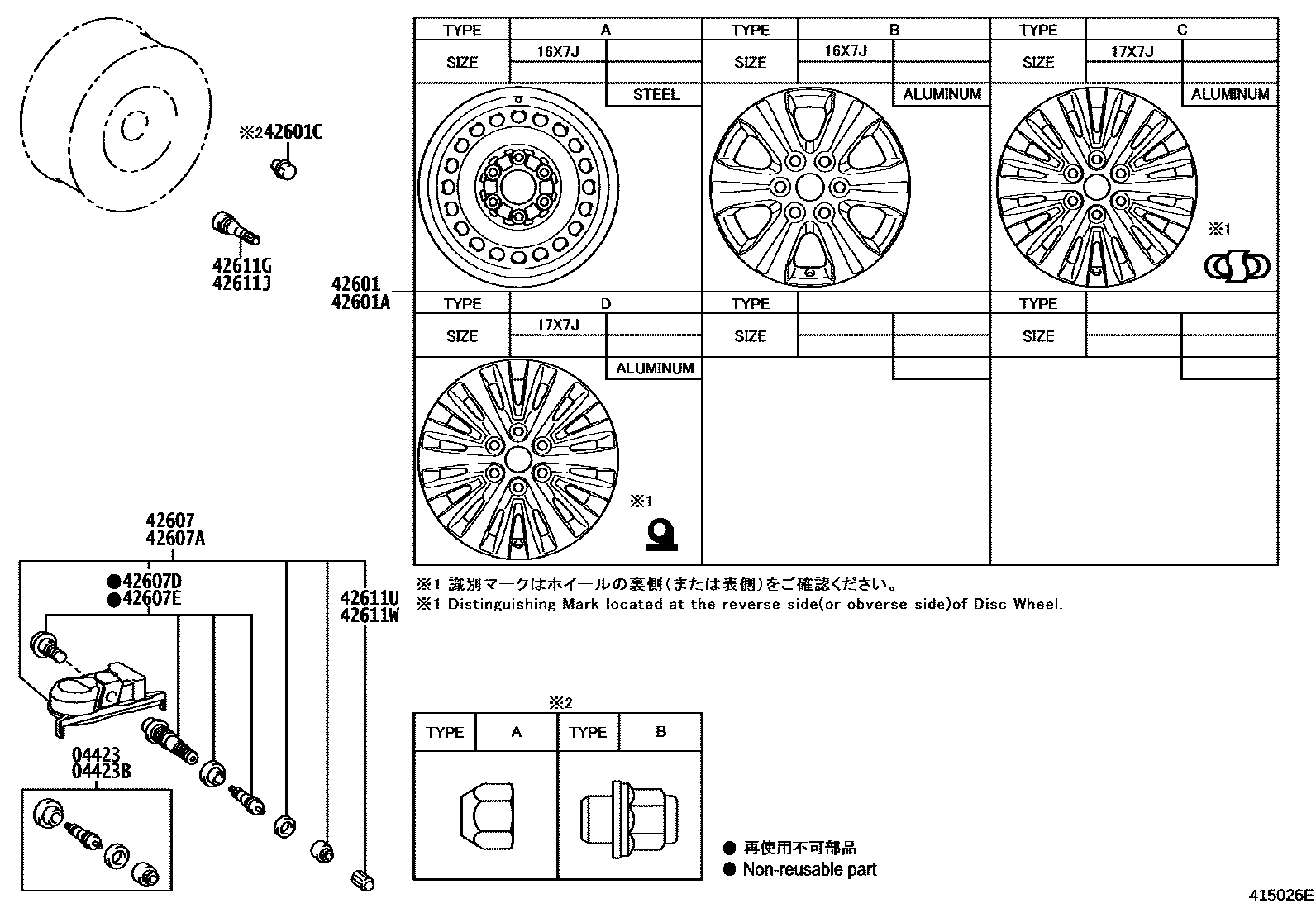

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
16X7J,#,TYPE A:REFER ILLUST.
main42611-26190×2supersedes 42611-26190iGRH301..6F..N;GRH301..LHD..D;GRH301..LHD..6FC..N;GDH301..LHD..GSOB..6F;GDH300,301..LHD..6FC..GEN;GDH300..(HPSOB,SHP)..6FC..GEN;GDH300,301,GRH300..(PSOB,SG,SHP,SP)..201902-202406
16X7J,#,TYPE A:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE D:REFER ILLUST.
17X7J,#,TYPE D:REFER ILLUST.
TYPE A:REFER ILLUST.
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X7J,#,TYPE A:REFER ILLUST.
16X7J,#,REAR WHEEL BRAKE-16 INCH DISC(48S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE A:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE D:REFER ILLUST.
17X7J,#,TYPE D:REFER ILLUST.
TYPE A:REFER ILLUST.
16X7J,#,REAR WHEEL BRAKE-16 INCH DISC(45S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER ILLUST.
main90942-01123×24iGDH300..5D;GDH321..RHD;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH320,328,GRH300,301,32#;GDH322..LH201902
TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42607DVALVE, TIRE PRESSURE MONITOR
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
TAHITI SPEC
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
13 parts on this diagram · 3 diagrams in section
