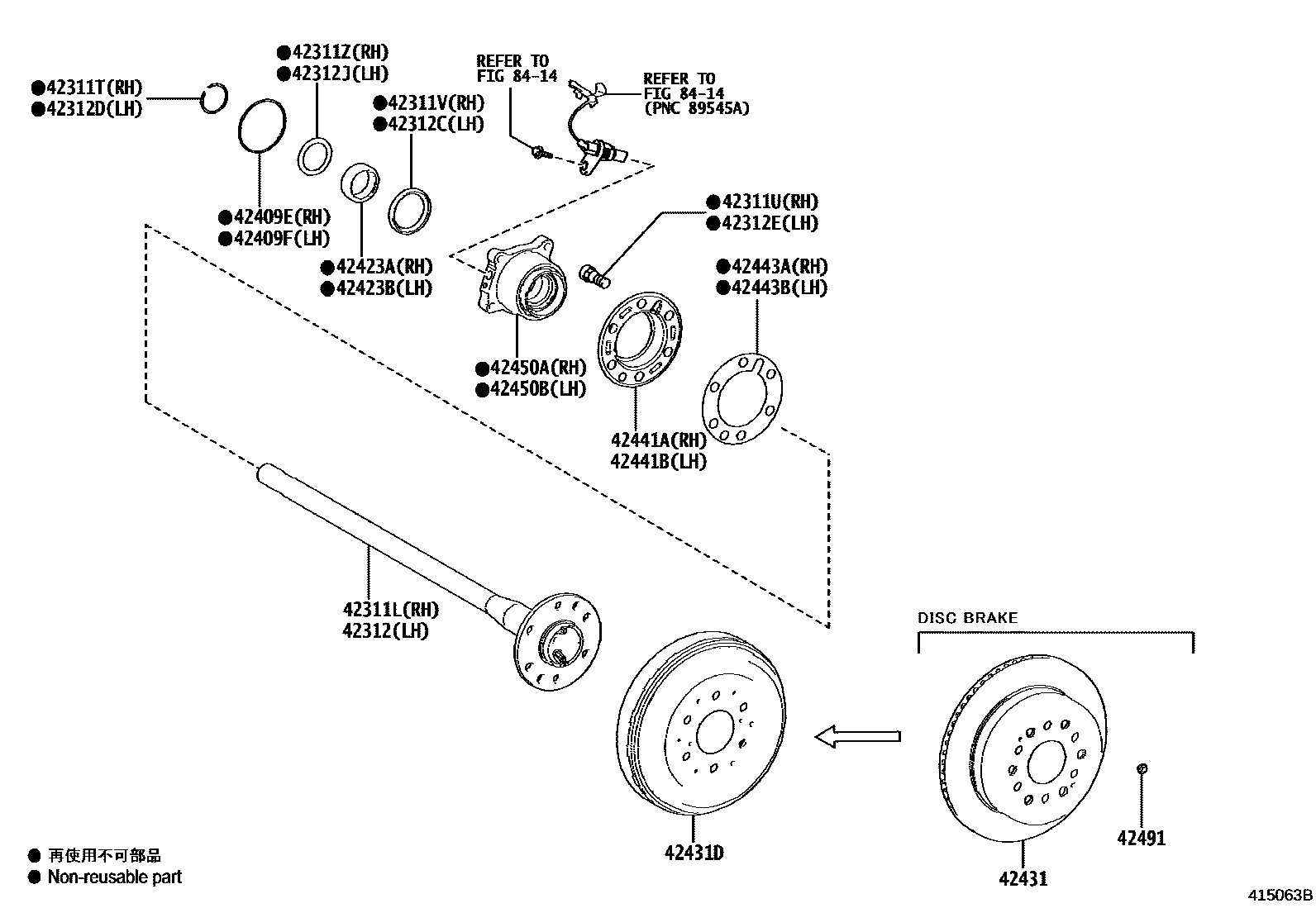

REAR AXLE SHAFT & HUB

42311LSHAFT, REAR AXLE, RH

main42311-26330supersedes 42311-26340iGDH322..RHD..P..GEN202006-202106

main42311-26340iGDH300..RHD..4D..SP..6FC..GEN201902-202505

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-46014iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202505

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02083×6iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH322..LHD..SG..(P,Q)..GEN;GDH303,304,320,328,GRH30#,32#;GDH300,306..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,301,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,NZ,TH)201902

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-63001iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202505

42311ZWASHER(FOR REAR AXLE SHAFT RH)

main90208-49001iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

42312SHAFT, REAR AXLE, LH

main42311-26330supersedes 42311-26340iGDH322..RHD..(P,Q)..GEN201902-202005

main42311-26340iGRH320..GCC,GEN;GDH320,GRH300..6F;GDH300..LHD..SP..GEN;GDH300..5D..(GCC,GEN);GDH301..LHD..GSOB..6F;GDH320..6FC..(AGT,GCC,GEN);GDH300,GRH320..6F..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,301,GRH301..4D..(PSOB,SG)..(GEN,TH);GDH301,GRH300..(GSOB,PSOB,SP)..6FC..(GCC,GEN)201902

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-63001iGDH322..RHD..(P,Q)..GEN201902-202005

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-46014iGDH322..RHD..(P,Q)..GEN201902-202005

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02083×6iGDH322..RHD..(P,Q)..GEN201902-202005

42312JWASHER(FOR REAR AXLE SHAFT LH)

main90208-49001iGDH322..RHD..(P,Q)..GEN201902-202005

42409ERING, O (FOR REAR AXLE BEARING RH)

main90301-88004iGDH322..RHD..(P,Q)..GEN201902-202005

42409FRING, O (FOR REAR AXLE BEARING LH)

main90301-88004iGDH321..GEN201902-202310

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-34040iGDH322..RHD..P..GEN202006-202106

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-34040iGDH322..Q..GEN202006

42431DISC, REAR

main42431-26220×2iGDH322..RHD..(P,Q)..GEN202006

42431DDRUM, BRAKE

main42431-26230×2iGDH301..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN201902-202505

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-26020supersedes 42441-26030iGDH322..RHD..(P,Q)..GEN201902-202005

main42441-26030iGRH320..GCC,GEN;GDH320,GRH300..6F;GDH300..LHD..SP..GEN;GDH300..5D..(GCC,GEN);GDH301..LHD..GSOB..6F;GDH320..6FC..(AGT,GCC,GEN);GDH300,GRH320..6F..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,301,GRH301..4D..(PSOB,SG)..(GEN,TH);GDH301,GRH300..(GSOB,PSOB,SP)..6FC..(GCC,GEN)201902

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-26020supersedes 42441-26030iGDH322..RHD..P..GEN202006-202106

main42441-26030iGDH300..RHD..4D..SP..6FC..GEN201902-202505

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-26010iGDH322..RHD..P..GEN202107

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-26010iGDH321..GEN201902-202310

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-26010supersedes 42450-26020iGDH322..RHD..(P,Q)..GEN201902-202005

main42450-26020iGRH320..GCC,GEN;GDH320,GRH300..6F;GDH300..LHD..SP..GEN;GDH300..5D..(GCC,GEN);GDH301..LHD..GSOB..6F;GDH320..6FC..(AGT,GCC,GEN);GDH300,GRH320..6F..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,301,GRH301..4D..(PSOB,SG)..(GEN,TH);GDH301,GRH300..(GSOB,PSOB,SP)..6FC..(GCC,GEN)201902

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-26010supersedes 42460-26020iGDH322..RHD..P..GEN202006-202106

main42460-26020iGRH320..GCC,GEN;GDH320,GRH300..6F;GDH300..LHD..SP..GEN;GDH300..5D..(GCC,GEN);GDH301..LHD..GSOB..6F;GDH320..6FC..(AGT,GCC,GEN);GDH300,GRH320..6F..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,301,GRH301..4D..(PSOB,SG)..(GEN,TH);GDH301,GRH300..(GSOB,PSOB,SP)..6FC..(GCC,GEN)201902

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-26570×2iGDH301..GSOB..6F..N; GDH322..GSOB..6F..N201902-202505

REAR WHEEL BRAKE-16 INCH DISC(45S)

8414ABS & VSC

→ Go to FIG 84-14

24 parts on this diagram · 1 diagram in section
