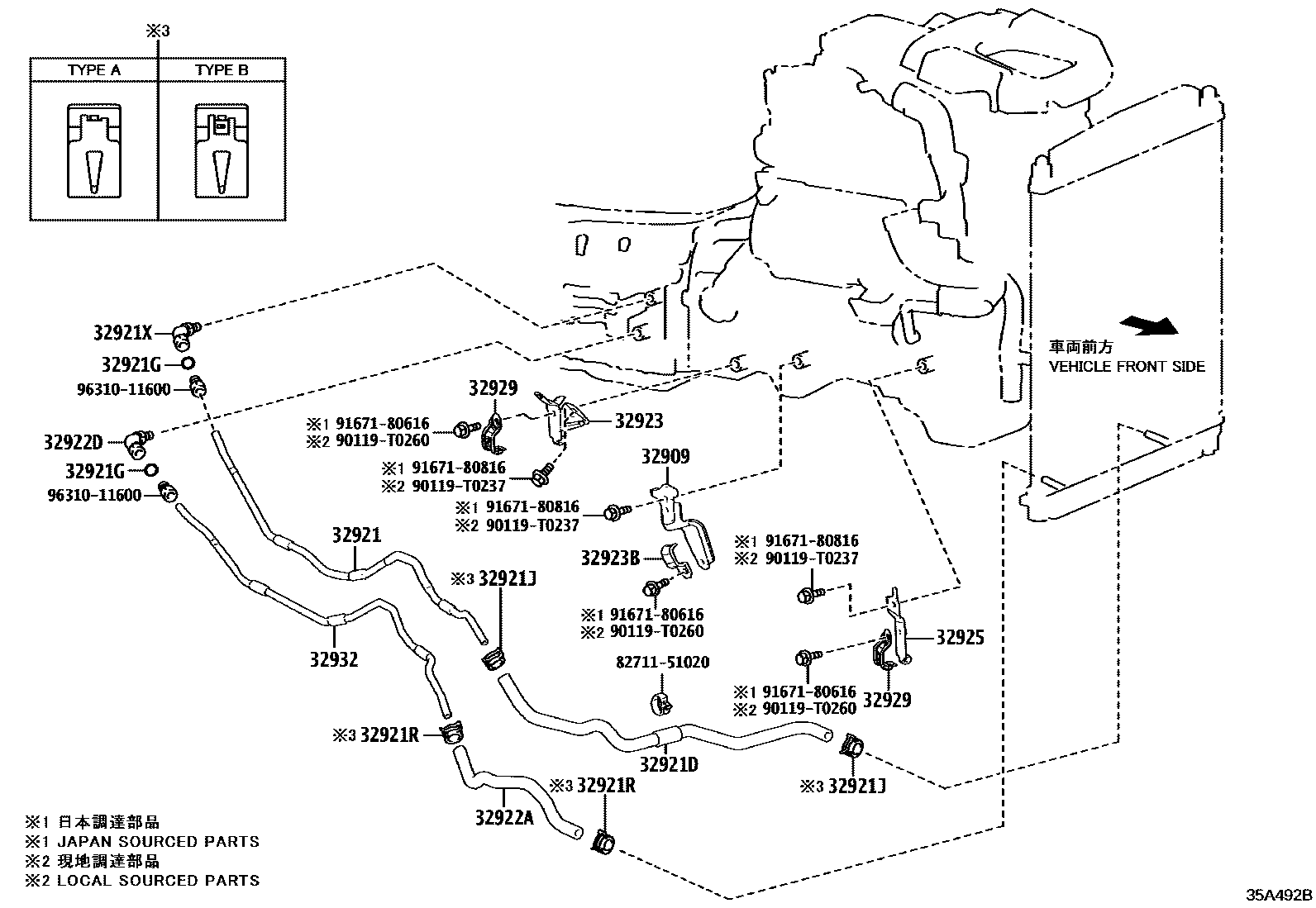

OIL COOLER & TUBE (ATM)

0001 1AC60E 0002 1AC60E 0003 1AC60E

32909CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1

main32909-26230iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202505

main32909-26250iGRH30#,320,322..6FC..(GCC,GEN)201902

32921TUBE, OIL COOLER INLET, NO.1

main32921-26410iGDH322..ARL;GDH300,301,303,320,321..6FC..(ARL,NZ)201902-202506

main32921-26420iGRH30#,320,322..6FC..(GCC,GEN)201902

main32921-26430iGRH300,303,320,321..6FC..ARL201902-202106

32921DHOSE(FOR OIL COOLER INLET)

main32941-26260iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202505

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iGDH322..RHD..GSOB..6FC..D201902-202404

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×2iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN202001-202505

TYPE B:REFER ILLUST.

main90466-16005×2iGDH30#,320,322,GRH30#,32#..6FC201902-202001

TYPE A:REFER ILLUST.

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iGDH322..RHD..GSOB..6FC..D202001-202401

TYPE B:REFER ILLUST.

main90466-16005×2iGDH30#,320,322,GRH30#,32#..6FC201902-202001

TYPE A:REFER ILLUST.

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-14034iGRH300,303,320,321..6FC..ARL201902-202106

main90407-16009iGDH322..RHD..GSOB..6FC..D201902-202404

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-26160iGDH322..RHD..GSOB..6FC..D201902-202401

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-14034iGRH300,303,320,321..6FC..ARL201902-202106

main90407-16009iGDH322..RHD..GSOB..6FC..D201902-202404

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-26140iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202505

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32929-0K030iGDH322..RHD..GSOB..6FC..D201902-202401

(L)

main32929-24060iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202505

(J)

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-26150iGDH322..RHD..GSOB..6FC..D201902-202401

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-24060iGRH30#,320,322..6FC..(GCC,GEN)201902

main32929-26040×2iGDH322..RHD..GSOB..6FC..D201902-202401

32932TUBE, OIL COOLER OUTLET

main32922-26400iGDH306..RHD;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..5D..6FC..(GCC,GEN);GDH300,306..LHD..(SG,SP)..6FC..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..6FC..(AGT,GCC,GEN,NZ,TH);GDH301,303,304,320,321,328..6FC..(AGT,BZ,GCC,GEN,TH)201902

main32922-26410iGRH30#,320,322..6FC..(GCC,GEN)201902

main32922-26420iGRH300,303,320,321..6FC..ARL201902-202106

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

90119T0237

main90119-T0237

90119T0260

main90119-T0260

9167180616

main91671-80616

9167180816

main91671-80816

9631011600

main96310-11600

20 parts on this diagram · 3 diagrams in section
