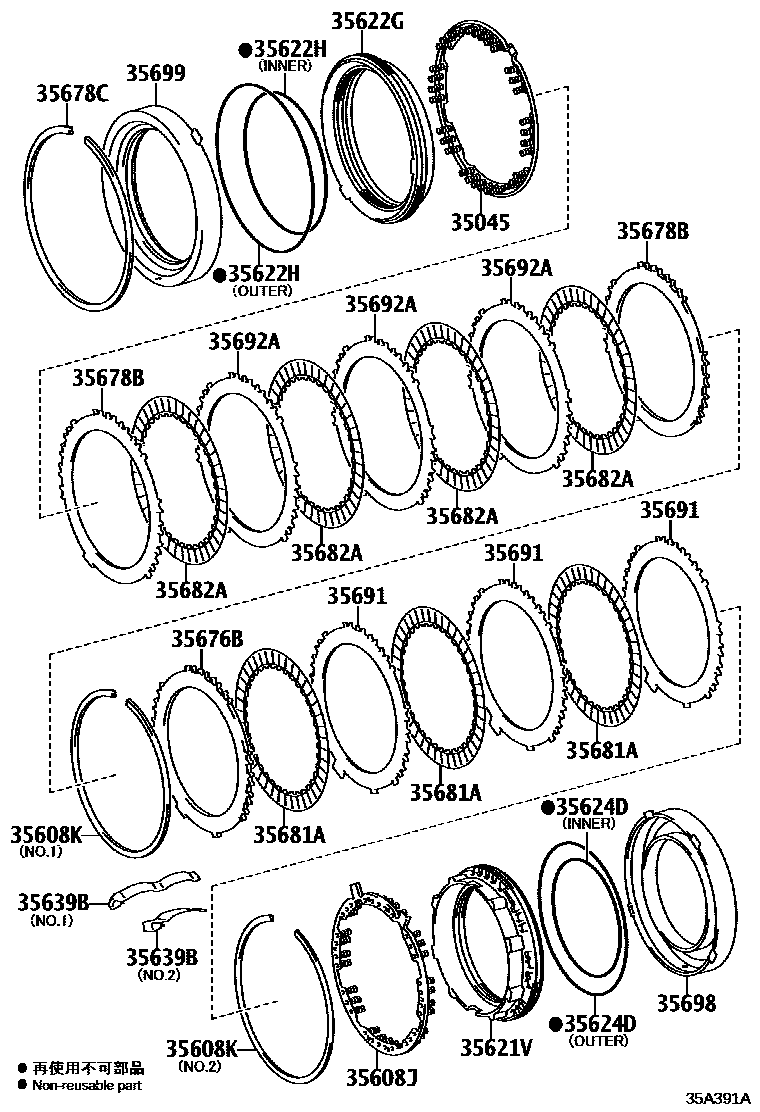

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2

main35045-71010iGDH322..RHD..GSOB..6FC..D201902-202404

35608JSPRING SUB-ASSY, BRAKE PISTON RETURN

main35608-71010iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)

main90520-99156iGDH322..RHD..GSOB..6FC..D201902-202404

NO.1

main90520-99157iGDH322..RHD..GSOB..6FC..D201902-202404

NO.2

35621VPISTON, BRAKE, NO.1

main35621-71010iGDH322..RHD..GSOB..6FC..D201902-202404

35622GPISTON, BRAKE, NO.2

main35622-71010iGDH322..RHD..GSOB..6FC..D201902-202404

35622HRING, O (FOR BRAKE PISTON NO.2)

main90301-99132iGDH322..RHD..GSOB..6FC..D201902-202404

INNER

main90301-99179iGDH322..RHD..GSOB..6FC..D201902-202404

OUTER

35624DRING, O (FOR BRAKE PISTON NO.4)

main90301-99115iGDH322..RHD..GSOB..6FC..D201902-202404

OUTER

main90301-99123iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

INNER

35639BSPRING, BRAKE PLATE STOPPER

main35639-71010iGDH322..RHD..GSOB..6FC..D201902-202404

NO.1

main35639-71020iGDH322..RHD..GSOB..6FC..D201902-202404

NO.2

35676BFLANGE, BRAKE, NO.1

main35676-71010iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

T=4.9

main35676-71020iGDH322..RHD..GSOB..6FC..D201902-202404

T=5.0

main35676-71030iGDH322..RHD..GSOB..6FC..D201902-202404

T=5.1

main35676-71040iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

T=5.2

main35676-71050iGDH322..RHD..GSOB..6FC..D201902-202404

T=5.3

main35676-71060iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)..GEN;GDH301,303,304,320,321,328,GRH30#,32#..6FC201902

T=5.4

main35676-71070iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)..GEN;GDH301,303,304,320,321,328,GRH30#,32#..6FC201902

T=5.5

main35676-71080iGDH322..RHD..GSOB..6FC..D201902-202404

T=5.6

main35676-71090iGDH322..RHD..GSOB..6FC..D201902-202404

T=5.7

main35676-71100iGDH322..RHD..GSOB..6FC..D201902-202404

T=5.8

35678BFLANGE, BRAKE, NO.2

main35678-71010iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)..GEN;GDH301,303,304,320,321,328,GRH30#,32#..6FC201902

T=3.8

main35678-71020iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

T=2.0

main35678-71030iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)..GEN;GDH301,303,304,320,321,328,GRH30#,32#..6FC201902

T=2.1

main35678-71040iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)..GEN;GDH301,303,304,320,321,328,GRH30#,32#..6FC201902

T=2.2

main35678-71050iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

T=2.3

main35678-71060iGDH322..RHD..GSOB..6FC..D201902-202404

T=2.4

main35678-71070iGDH322..RHD..GSOB..6FC..D201902-202404

T=2.5

main35678-71080iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)..GEN;GDH301,303,304,320,321,328,GRH30#,32#..6FC201902

T=2.6

main35678-71090iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202506

T=2.7

main35678-71100iGDH322..RHD..GSOB..6FC..D201902-202404

T=2.8

35678CRING, SNAP (FOR BRAKE NO.2)

main90520-99155iGDH322..RHD..GSOB..6FC..D201902-202404

35681ADISC, BRAKE, NO.1

main35681-71010×4iGDH322..RHD..GSOB..6FC..D201902-202404

35682ADISC, BRAKE, NO.2

main35682-71010×5iGDH322..RHD..GSOB..6FC..D201902-202404

35691PLATE, BRAKE, NO.1

main35691-71010×4iGDH322..RHD..GSOB..6FC..D201902-202404

35692APLATE, BRAKE, NO.2

main35692-71010×4iGDH322..RHD..GSOB..6FC..D201902-202404

35698CYLINDER, BRAKE, NO.1

main35698-71010iGDH322..RHD..GSOB..6FC..D201902-202404

35699CYLINDER, BRAKE, NO.2

main35699-71010iGDH322..RHD..GSOB..6FC..D201902-202404

17 parts on this diagram · 1 diagram in section
