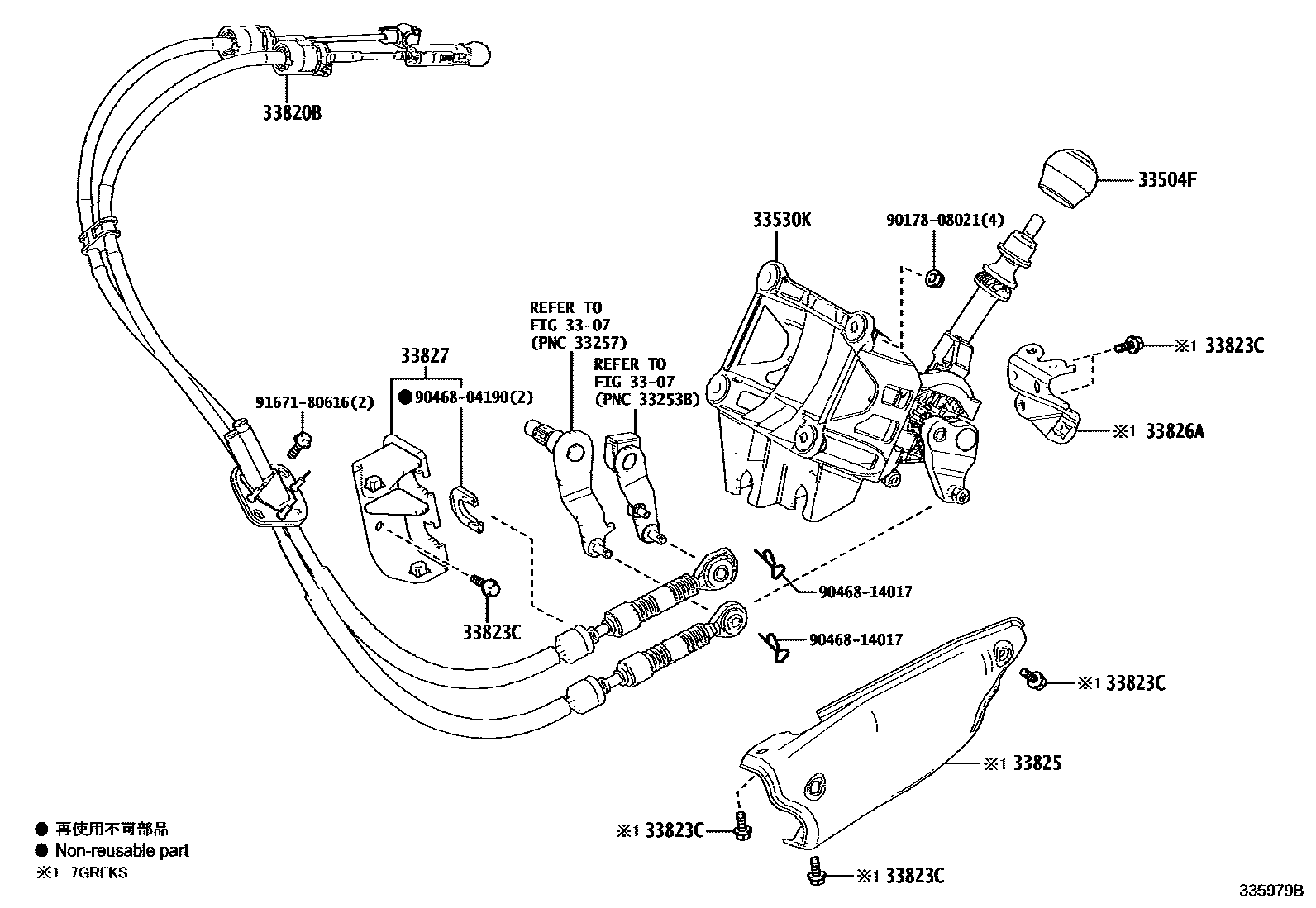

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-26070-C0iGDH301..RHD..GSOB..6F201902-202404

BLACK,TRIM1#

main33504-26100-E0iGDH322..6F..Q..GEN201902-202005

ORCHID BROWN,TRIM0#

main33542-15010iGDH300..RHD..4D..SP..6FC..GEN201902-202505

main33542-15020iGDH303..RHD..(G,J)201902-202506

main33542-26040supersedes 33542-15020iGRH304202310

main33542-26050iGDH300,301,320,322,328,GRH300,301,320,322..LHD..6FC..(D,P)201902

main33542-26060supersedes 33542-26070iGRH303..LHD..G;GDH301,306,322,GRH301,322..LHD..6FC..(J,N,Q)201902

main33542-26070supersedes 33542-26060iGDH304..GEN;GDH303..LHD..(G,J)..GEN201907

33530KLEVER ASSY, SHIFT

main33530-26250iGDH322..RHD..(P,Q)..GEN201902-202005

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-26520iGDH321..GEN201902-202310

main33820-26530iGRH300,301,32#..LHD..6F201902

main33820-26540iGDH301..RHD..GSOB..6F201902-202404

main33820-26550iGRH300,301,320,322..RHD..6F201902

main33820-26560iGDH306..LHD..J;GDH300,301,303,304,320,322,328..LHD..6FC201902

main33820-26570iGRH300,301,303,320,322..LHD..6FC201902

main33820-26580iGDH300..RHD..5D..6FC;GDH322..RHD..GSOB..N;GDH300..4D..SP..6FC..ARL;GDH300,322..RHD..4D..(PSOB,SG)..6FC;GDH301,303,304,306,320,321..RHD..6FC201902

main33820-26590iGRH30#,32#..RHD..6FC201902

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91671-80820×2iGDH322..RHD..(P,Q)..GEN201902-202005

33825INSULATOR, TRANSMISSION CONTROL CABLE

main33805-26020iGRH300..5D..GEN;GRH300,320..6F..ARL201902-202106

main33825-26020iGRH322..6FC..N;GRH303..RHD..GEN;GRH320..6FC..GEN;GRH301..LHD..6FC201902-202207

33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-26020iGRH300..SG;GRH301,322..6F..N;GRH300..4D..6F..GEN;GRH320..RHD..6F..GEN;GRH320..LHD..SP..6F..GEN201902-202207

main33826-26040iGRH303..LHD..J;GRH301..RHD..6FC;GRH320..6FC..GCC;GRH300,304,322..6FC..(D,H,P,Q)..(GCC,GEN)201902

33827BRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33804-26060iGDH322..RHD..(P,Q)..GEN201902-202005

9017808021

main90178-08021

9046804190

main90468-04190

9046814017

main90468-14017

9167180616

main91671-80616

12 parts on this diagram · 4 diagrams in section
