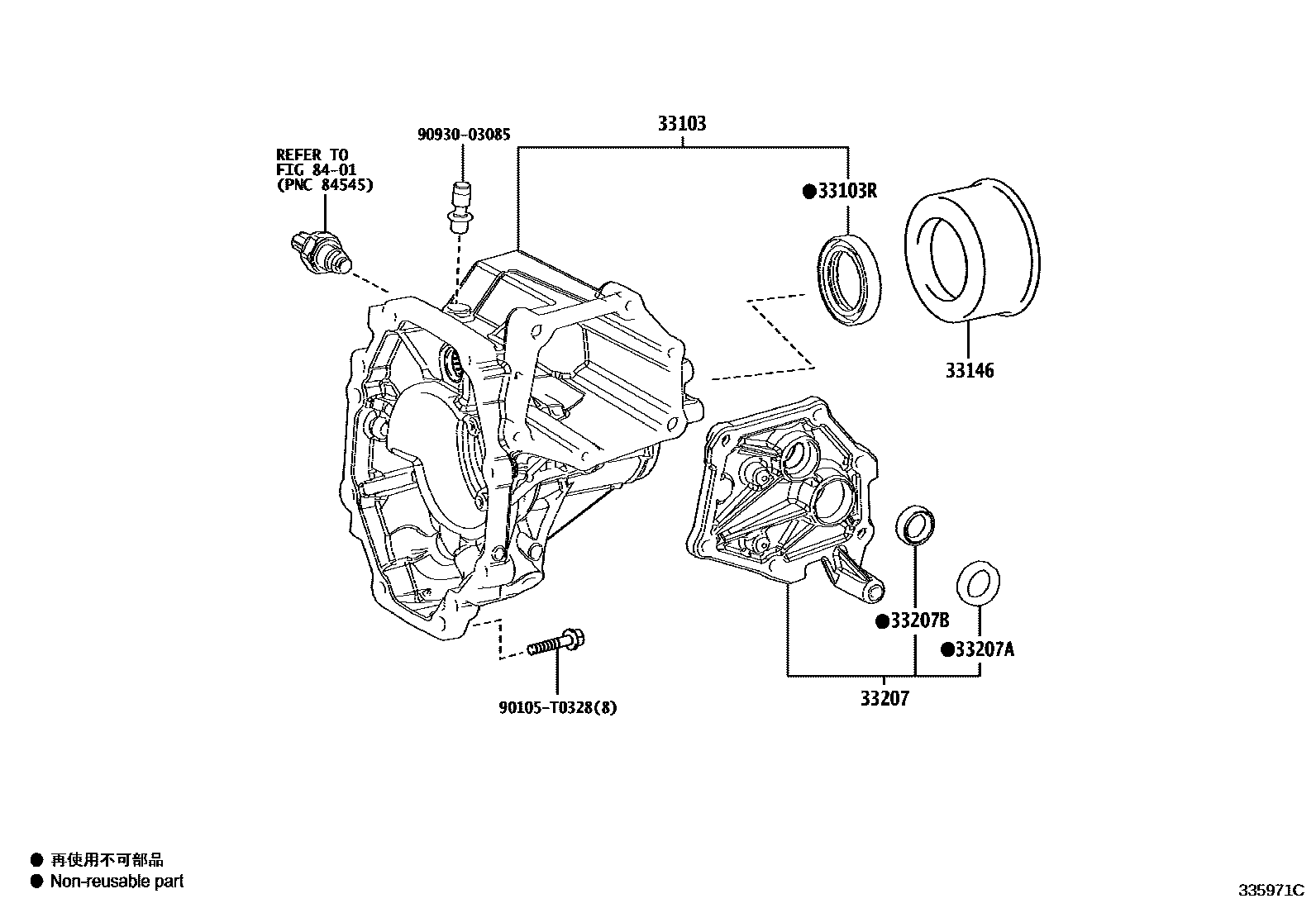

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-26110iGDH322..RHD..(P,Q)..GEN201902-202005

main33103-26120iGDH300,320..6F..ARL201902

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-T0069iGDH322..RHD..(P,Q)..GEN201902-202005

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-0K020iGDH301..RHD..GSOB..6F201906-202404

(L)

main33146-35020iGDH322..6F..TH201902-202506

(J)

33207HOUSING SUB-ASSY, SHIFT LEVER W/SEAL

main33207-26010iGDH322..RHD..(P,Q)..GEN201902-202005

33207ASEAL, OIL(FOR CONTROL SHAFT)

main90311-22009iGDH322..RHD..P..GEN202107

33207BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-18013iGDH322..RHD..(P,Q)..GEN201902-202005

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0328

main90105-T0328

9093003085

main90930-03085

9 parts on this diagram · 1 diagram in section
