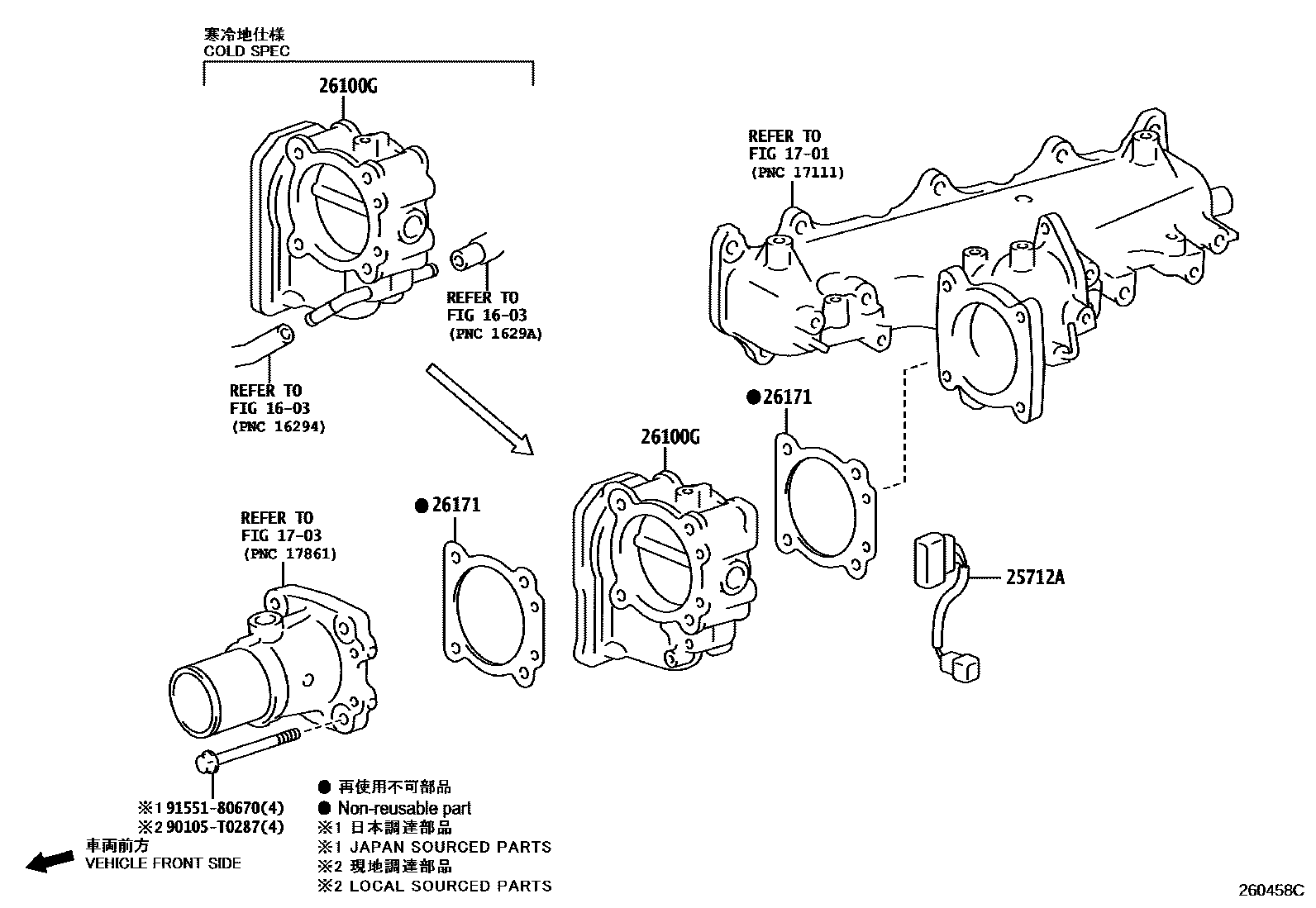

VENTURI

0001 1 0002 1W(INTERCOOLER (WATER COOLED T

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

25712AWIRE, EMISSION CONTROL VALVE

main25712-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main25712-11010i1GDFTV..GDH321..GEN202107-202310

26100GBODY ASSY, DIESEL THROTTLE

main26100-0E050i1GDFTV..GDH320,322,328..AGT,BZ202401

main26100-11030i1GDFTV..GDH300,304..(HPSOB,SG)..GEN;1GDFTV..GDH306,322..LHD..(J,P,Q)..GEN201903

main26100-11040supersedes 26100-11030i1GDFTV..GDH322..GCC,NZ;1GDFTV..GDH300..SHP..6FC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..GSOB..6F..D;1GDFTV..GDH304,306,321..RHD;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..LHD..SP..GEN;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH322..SG..(D,N)..GEN;1GDFTV..GDH300..4D..SP..(ARL,TH);1GDFTV..GDH300,301..4D..(PSOB,SG);1GDFTV..GDH300..RHD..4D..SP..6F..GEN;1GDFTV..GDH300..5D..(GSOB,PSOB,SG,SP);1GDFTV..GDH303,320,328..ARL,GCC,GEN,PH;1GDFTV..GDH300,301..LHD..(GSOB,SHP)..6F..D201902

(J)

26171GASKET, VENTURI

main26171-0E030×2i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main26171-11020×2i1GDFTV..GDH304,306..RHD;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300,301,303,32#..D,G,H,J,N201902-202107

(J)

90105T0287

main90105-T0287

9155180670

main91551-80670

8 parts on this diagram · 2 diagrams in section
