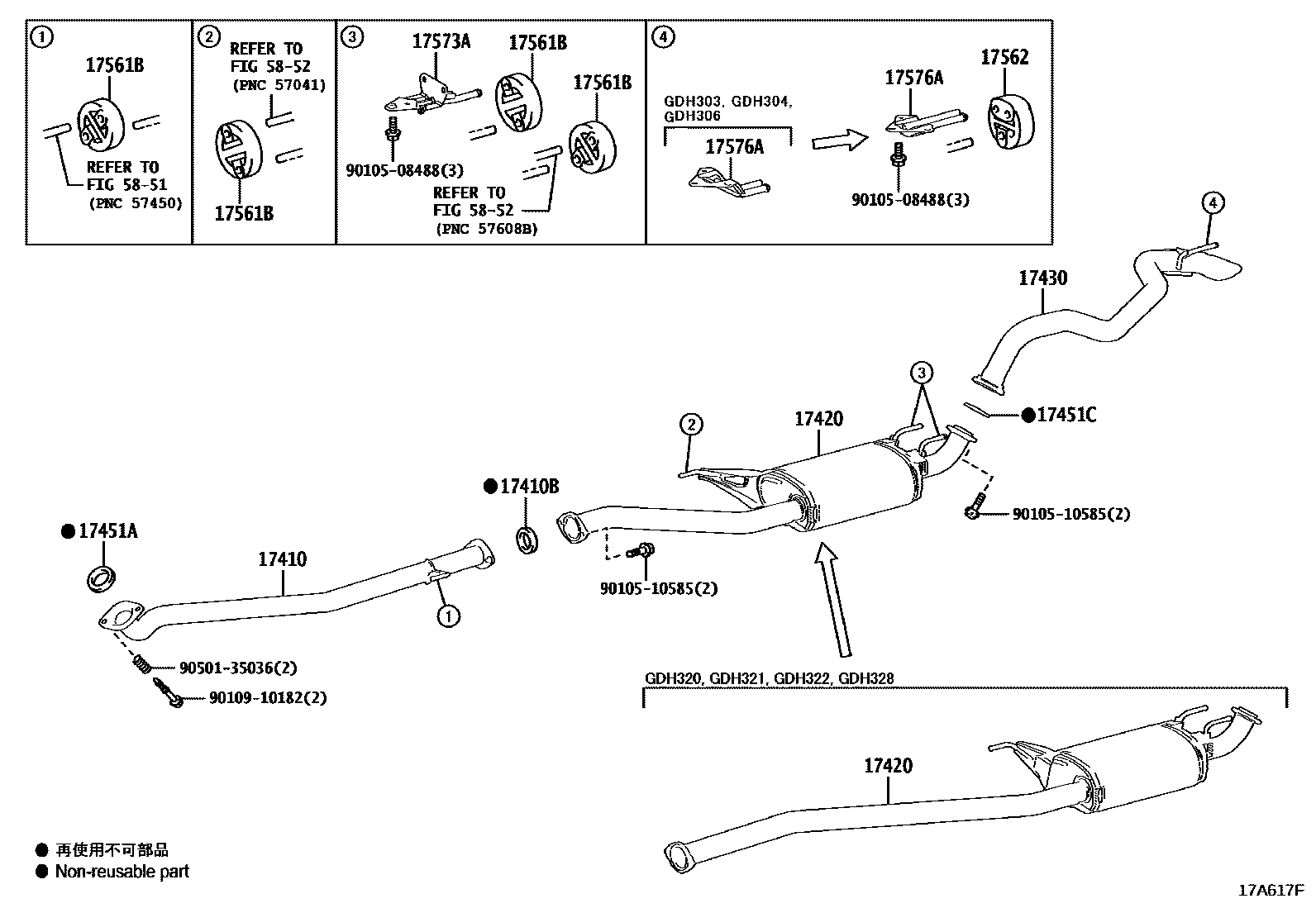

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
CHILE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
BHUTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL, EURO6)
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699&CATALYTIC CONVERTER-WITH(DIESEL,EURO5)
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&CATALYTIC CONVERTER-WITH(DIESEL, EURO5)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699&CATALYTIC CONVERTER-WITH(DIESEL, EURO5)
main17410-11A60i1GDFTV..GDH322..LHD..GSOB..6FC..N;1GDFTV..GDH304,322..6FC..(H,P,Q)..(GEN,NZ);1GDFTV..GDH300,301,303,320,321,322..(D,G,J,N)..(AGT,ARL,NZ)201902
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&CATALYTIC CONVERTER-WITH(DIESEL, EURO5)
main17410-11A60i1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN201902-202208
CHILE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITHOUT(ON BOARD DIAGNOSIS)&CATALYTIC CONVERTER-WITH(DIESEL, EURO5)
UNITED ARAB EMIRATES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&CATALYTIC CONVERTER-WITH(DIESEL, EURO3/4)
PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&CATALYTIC CONVERTER-WITH(DIESEL, EURO3/4)
SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&CATALYTIC CONVERTER-WITH(DIESEL, EURO3/4)
CAMBODIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&CATALYTIC CONVERTER-WITH(DIESEL, EURO3/4)
EXHAUST EMISSION CONTROL-DIESEL EURO0 WITHOUT(ON BOARD DIAGNOSIS)&CATALYTIC CONVERTER-WITHOUT
EXHAUST EMISSION CONTROL-GASOLINE EURO5/6 WITH(AIR INJECTION)*699
17410BGASKET, EXHAUST PIPE
main90917-06054i1GDFTV..GDH300..RHD..4D..SP..6F..GEN;1GDFTV..GDH300,301..RHD..(GSOB,PSOB)..6FC..GEN202405
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699
TAIWAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681
EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITH(ON BOARD DIAGNOSIS)
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681
EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700
EXHAUST EMISSION CONTROL-DIESEL EURO0 WITHOUT(ON BOARD DIAGNOSIS)
TYPE A:REFER ILLUST.
17420PIPE ASSY, EXHAUST, CENTER
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
CHILE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITHOUT(ON BOARD DIAGNOSIS)
PERU SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-DIESEL EURO0 WITHOUT(ON BOARD DIAGNOSIS)
main17420-31620i7GRFKS..GRH303..RHD;7GRFKS..GRH303..GCC;7GRFKS..GRH303..LHD..G;7GRFKS..GRH300,301,304201902-202208
main17420-31630i7GRFKS..GRH320,321;7GRFKS..GRH322..6F;7GRFKS..GRH322..RHD..6FC;7GRFKS..GRH322..6FC..(N,P,Q)201903-202209
17430PIPE ASSY, EXHAUST, TAIL
COSTA RICA SPEC
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681
PERU SPEC
PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
17451AGASKET, EXHAUST PIPE, NO.2
(L)
(J)
17451CGASKET, EXHAUST PIPE, NO.3
17561BSUPPORT, EXHAUST PIPE, NO.1
SOUTH AFRICA SPEC
main17565-28010i1GDFTV..GDH306..LHD..G;1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202405
HONG KONG SPEC
TAIWAN SPEC
PERU SPEC
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681
CHILE SPEC
COSTA RICA SPEC
17562SUPPORT, EXHAUST PIPE, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
main17576-31130i1GDFTV..GDH306..RHD;1GDFTV..GDH306..LHD..J;1GDFTV,7GRFKS..GDH303,304,GRH303,304201907-202405
5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER
5852REAR FLOOR PANEL & REAR FLOOR MEMBER
9010508488
main90105-08488
9010510585
main90105-10585
9010910182
main90109-10182
9050135036
main90501-35036
16 parts on this diagram · 8 diagrams in section
