VENTILATION HOSE

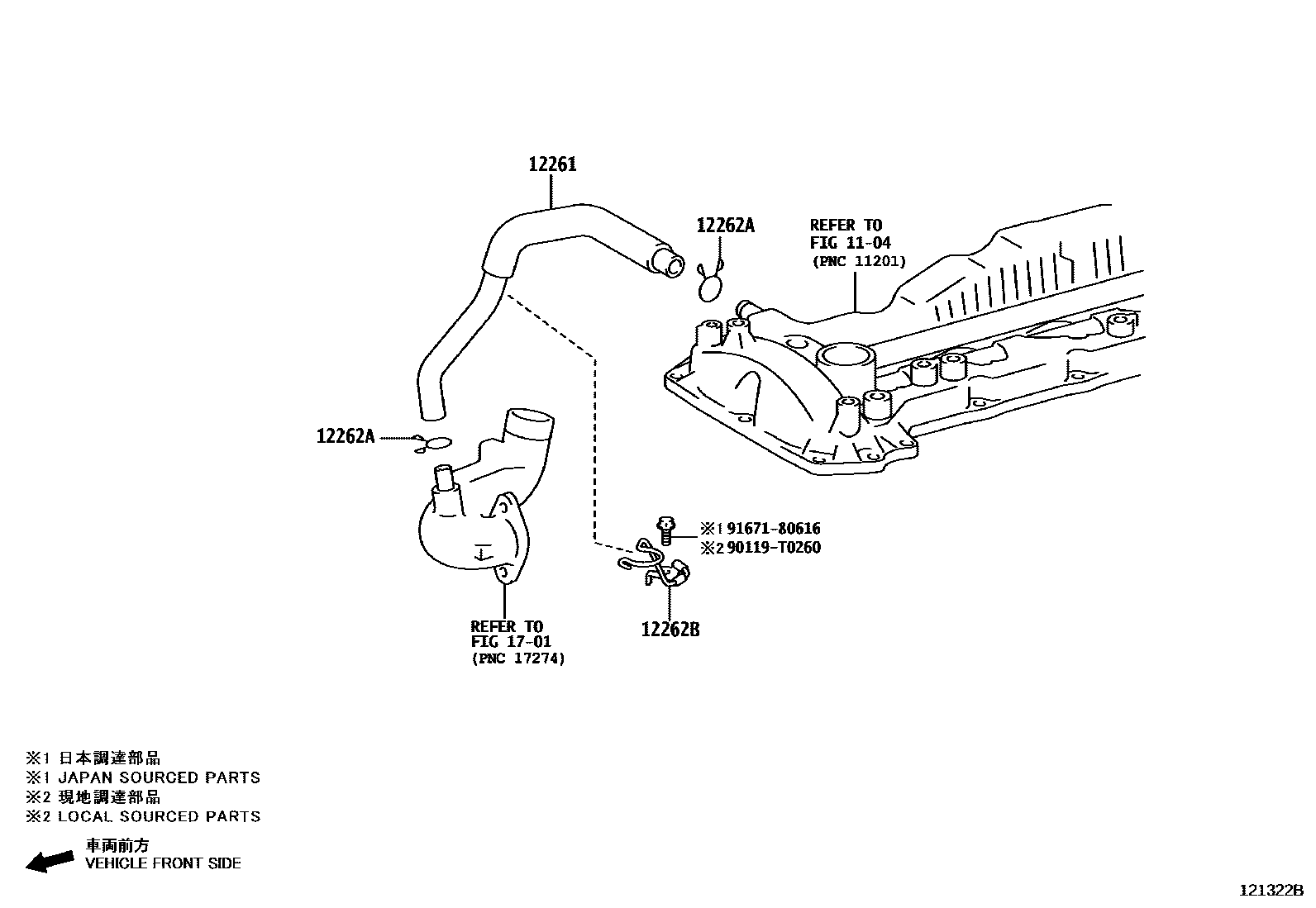

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

12261HOSE, VENTILATION

main12261-0E010i202401

main12261-0E010i201906

(L)

main12261-11240i201902-202505

(J)

main12261-31170i202208

EXHAUST EMISSION CONTROL-GASOLINE EURO5/6 WITH(AIR INJECTION)*699

main12261-31170i201902

main12261-31240i201902

HONG KONG SPEC

main12261-31240i201902-202208

12262HOSE, VENTILATION, NO.2

main12262-0E020i202409

main12262-11110i201903-202505

main12262-11130i202208

main12262-31240i201902

HONG KONG SPEC

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-22005i201902-202505

main90467-21004i201902

HONG KONG SPEC

12262BCLAMP(FOR VENTILATION HOSE)

main16581-11040i201902-202505

1701MANIFOLD

→ Go to FIG 17-01

90119T0260

main90119-T0260

9167180616

main91671-80616

8 parts on this diagram · 4 diagrams in section
