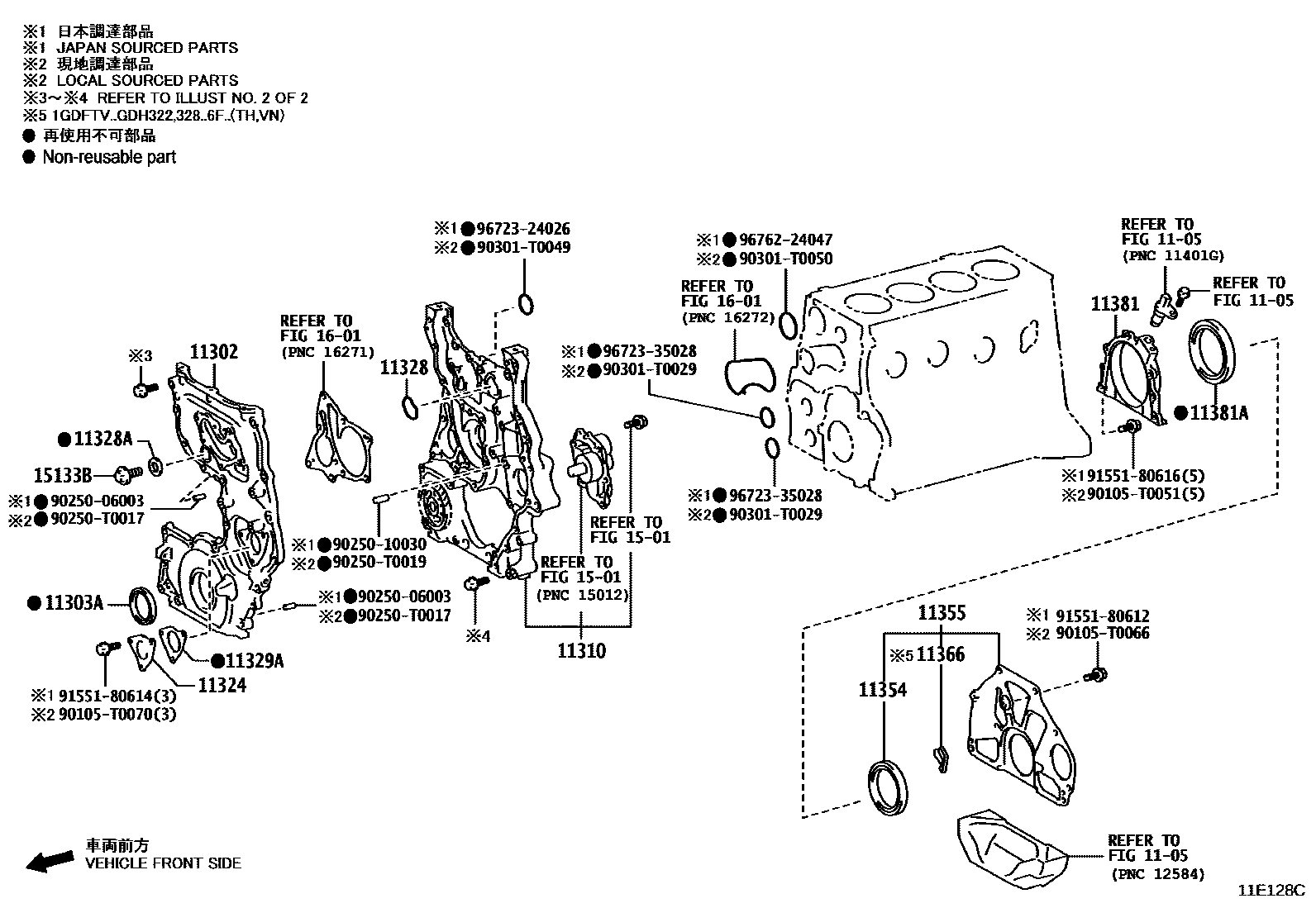

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main11321-11120i1GDFTV..GDH322,328..TH,VN201902-202107

(J)

main11321-35040i1GDFTV..GDH301,322..GSOB..6F..N202307-202505

(J)

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-50051i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

(J)

main90311-T0054i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

11310COVER ASSY, TIMING CHAIN

main11310-11041i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

main11310-31071i7GRFKS..GRH30#,32#201902

main11310-35120i1GDFTV..GDH301,322..GSOB..6F..N202407-202505

11324PLATE, TIMING CHAIN COVER

main11324-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main11324-11010i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201902-202404

(J)

main11324-31020i7GRFKS..GRH30#,32#201902

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main11328-11070i1GDFTV..GDH322,328..TH,VN201902-202107

(J)

main11328-31030i7GRFKS..GRH30#,32#201902

11328AGASKET, TIMING BELT COVER, NO.1

main11328-11080i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201911-202404

main11328-38030i1GDFTV..GDH30#,32#201902-201910

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main11329-11020i1GDFTV..GDH322,328..TH,VN201902-202107

(J)

11354SEAL, FLYWHEEL HOUSING DUST

main11354-0L020i1GDFTV..GDH320,322,328..AGT,BZ202401

main11354-30010i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

(J)

11355PLATE, REAR END

main11355-0E010i1GDFTV..GDH322..6FC..TH201906

(L)

main11355-0E040i1GDFTV..GDH328..VN;1GDFTV..GDH322..6F..TH201906

(L)

main11355-11040i1GDFTV..GDH322..6FC..TH201902-202107

(J)

main11355-11050i1GDFTV..GDH301..SG..6F;1GDFTV..GDH322..LHD..SG..6F..(GCC,GEN);1GDFTV..GDH301,322..LHD..GSOB..6F..(D,P);1GDFTV..GDH321,322..RHD..6F..(D,N)..(GEN,IDN);1GDFTV..GDH300,320,328..6F..(ARL,GCC,GEN,PH,TH)201902

(J)

11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST

main11366-0E010i1GDFTV..GDH322..6F..TH201906

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main11381-0E030i1GDFTV..GDH320,322,328..AGT,BZ202401

ARG SOURCED PARTS

main11381-11010i1GDFTV..GDH321..GEN201902-202310

(J)

main11381-31030i7GRFKS..GRH30#,32#201902

11381ASEAL, ENGINE REAR OIL

main90311-92011i7GRFKS..GRH30#,32#201902-202106

main90311-92012i7GRFKS..GRH30#,32#202107

main90311-95015i1GDFTV..GDH301,322..GSOB..6F..N201902-202505

(J)

main90311-T0046i1GDFTV..GDH320,322,328..AGT,BZ202401

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i1GDFTV..GDH322..RHD..P..GEN202006-202106

1601WATER PUMP

→ Go to FIG 16-01

90105T0051

main90105-T0051

90105T0066

main90105-T0066

90105T0070

main90105-T0070

9025006003

main90250-06003

9025010030

main90250-10030

90250T0017

main90250-T0017

90250T0019

main90250-T0019

90301T0029

main90301-T0029

90301T0049

main90301-T0049

90301T0050

main90301-T0050

9155180612

main91551-80612

9155180614

main91551-80614

9155180616

main91551-80616

9672324026

main96723-24026

9672335028

main96723-35028

9676224047

main96762-24047

32 parts on this diagram · 5 diagrams in section
