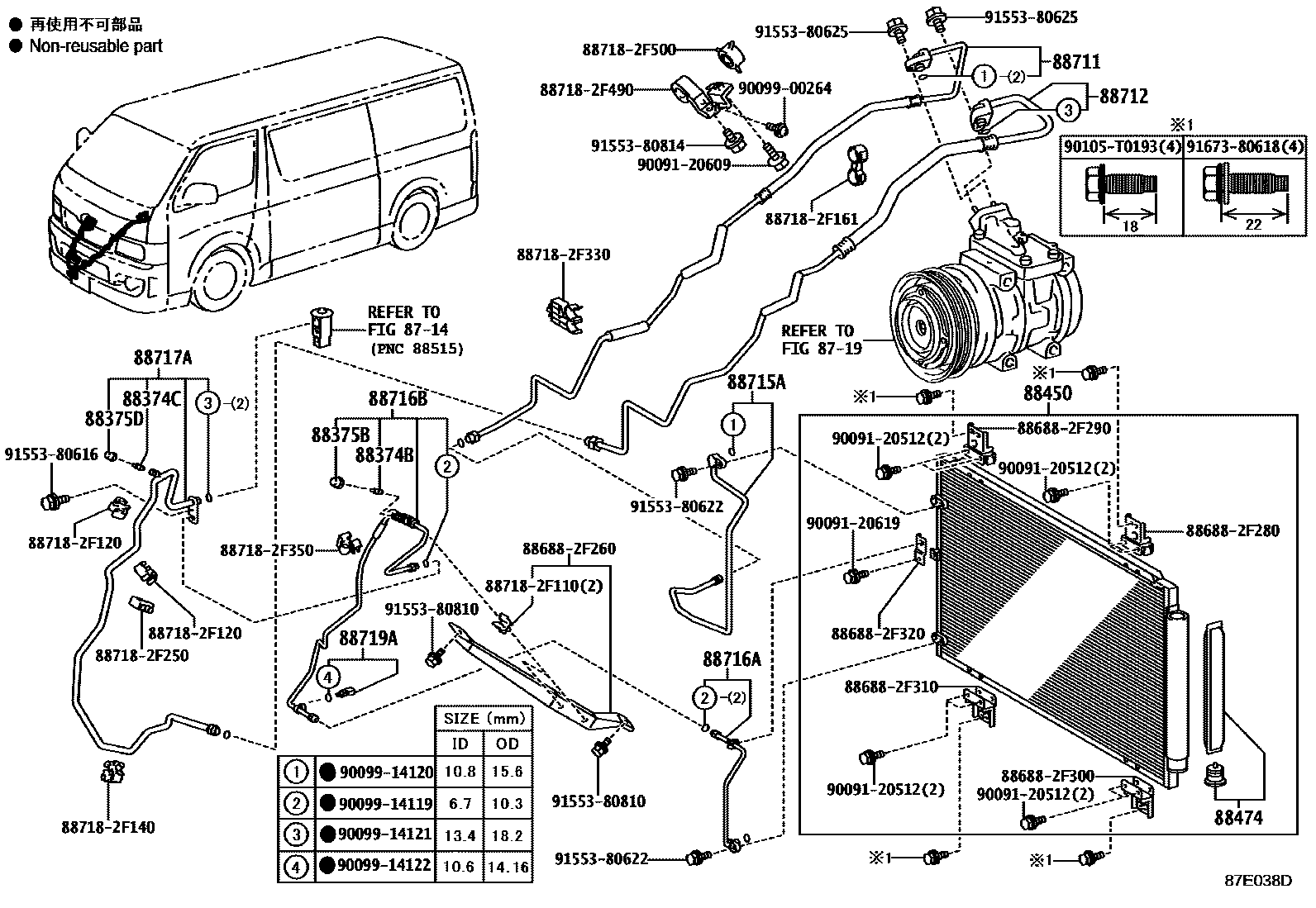

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
main88374-30010iKDH212,TRH213..SA; LH200..5D;KDH200..LHD..4D;KDH200..RHD..(GEN,SA); TRH203..4FC; TRH213..RHD..GEN201312-201901
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
3ROOM REFRIGERATOR VAN,NOT APPLICABLE
88374CVALVE, SERVICE, NO.2
main88374-30010iKDH212,TRH213..SA; LH200..5D;KDH200..LHD..4D;KDH200..RHD..(GEN,SA); TRH203..4FC; TRH213..RHD..GEN201312-201901
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
3ROOM REFRIGERATOR VAN,NOT APPLICABLE
88375BCAP, SERVICE VALVE, NO.1
main88375-30280iKDH212,TRH213..SA; LH200..5D;KDH200..LHD..4D;KDH200..RHD..(GEN,SA); TRH203..4FC; TRH213..RHD..GEN201312-201901
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
3ROOM REFRIGERATOR VAN,NOT APPLICABLE
88375DCAP, SERVICE VALVE, NO.2
main88375-30290iKDH212,TRH213..SA; LH200..5D;KDH200..LHD..4D;KDH200..RHD..(GEN,SA); TRH203..4FC; TRH213..RHD..GEN201312-201901
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
3ROOM REFRIGERATOR VAN,NOT APPLICABLE
88450CONDENSER ASSY, W/RECEIVER
main88450-26120iKDH220,TRH221..03S..SA; KDH220..03S..SA;TRH221..SP..03S..(GEN,SA); KDH222..5F..GL;TRH223..5F..GL..(GEN,SA); TRH221..SG;TRH223..RHD..GEN201312-201902
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-SINGLE AIR CONDITIONER
88474DRYER, COOLER
main88474-17010iKDH212,TRH213..SA; LH200..5D;KDH200..LHD..4D;KDH200..RHD..(GEN,SA); TRH203..4FC; TRH213..RHD..GEN201312-201901
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
AIR CONDITIONER-DUAL AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER
AIR CONDITIONER-WITHOUT
AIR CONDITIONER-WITHOUT
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
AIR CONDITIONER-DUAL AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER
main88712-2F191iKDH21#,222,223..GL..(GEN,RUS);KDH223..(03S,14S,16S)..5F..(ARL,GEN,KEN,VN); KDH223..4FC..TH;KDH222..STD..GEN;KDH212,223..LHD..STD..GEN201312
AIR CONDITIONER-DUAL AIR CONDITIONER
AIR CONDITIONER-WITHOUT
AIR CONDITIONER-WITHOUT
AIR CONDITIONER-DUAL AIR CONDITIONER
main88712-2F360iKDH201..SG;KDH201..TH;KDH201..02S,05S;KDH200,201..LHD..5D..GEN; KDH201..SP..06S;KDH202,203..MA,TH;KDH201..4D..03S..5F..(GEN,MA); KDH202,203..(12S,15S)..GEN201312
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
AIR CONDITIONER-WITHOUT
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER
88715APIPE, COOLER REFRIGERANT DISCHARGE, A
AIR CONDITIONER-DUAL AIR CONDITIONER
88716APIPE, COOLER REFRIGERANT LIQUID, A
main88710-2F641iKDH220..03S..SA;TRH221..SP..03S..(GEN,SA); KDH222..5F..GL;TRH223..5F..GL..(GEN,SA); TRH221..SG;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC201312-201902
AIR CONDITIONER-DUAL AIR CONDITIONER
88716BPIPE, COOLER REFRIGERANT LIQUID, B
main88716-2N120iKDH200..MA;KDH201..SP..06S;GDH201,KDH202,203,TRH200,203..RHD..(06S,10S,12S); KDH201..SG;KDH201..RHD..(02S,03S,05S);KDH200,TRH201..RHD..(ARL,GEN,SA); KDH202,203,TRH203..RHD..GEN201312-201711
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER
3ROOM REFRIGERATOR VAN,NOT APPLICABLE
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
88717APIPE, COOLER REFRIGERANT SUCTION, A
main88717-2F650iKDH201..SG;KDH201..RHD..(02S,03S,05S);KDH200,TRH201..RHD..(ARL,GEN,SA); KDH201..SP..06S;GDH201,KDH202,203,TRH200,203..RHD..(06S,10S,12S); KDH202,203,TRH203..RHD..GEN201312-201711
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
AIR CONDITIONER-DUAL AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER
3ROOM REFRIGERATOR VAN,NOT APPLICABLE
FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
88719ASENSOR, AIR CONDITIONER PRESSURE
main88719-33020iKDH200..LHD..4D;KDH200..RHD..(GEN,SA); KDH212,TRH213..SA; TRH203..4FC; TRH213..RHD..GEN201312-201901
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
3ROOM REFRIGERATOR VAN,NOT APPLICABLE
886882F260BRACKET, COOLER DIAPHRAGM
main88688-2F260
886882F280BRACKET, COOLER DIAPHRAGM
main88688-2F280
886882F290BRACKET, COOLER DIAPHRAGM
main88688-2F290
886882F300BRACKET, COOLER DIAPHRAGM
main88688-2F300
886882F310BRACKET, COOLER DIAPHRAGM
main88688-2F310
886882F320BRACKET, COOLER DIAPHRAGM
main88688-2F320
887182F110PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F110
887182F120PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F120
887182F140PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F140
887182F161PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F161
887182F250PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F250
887182F330PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F330
887182F350PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F350
887182F490PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F490
887182F500PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F500
9009120512
main90091-20512
9009120609
main90091-20609
9009120619
main90091-20619
9009900264
main90099-00264
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9009914122
main90099-14122
90105T0193
main90105-T0193
9155380616
main91553-80616
9155380622
main91553-80622
9155380625
main91553-80625
9155380810
main91553-80810
9155380814
main91553-80814
9167380618
main91673-80618
45 parts on this diagram · 80 diagrams in section
