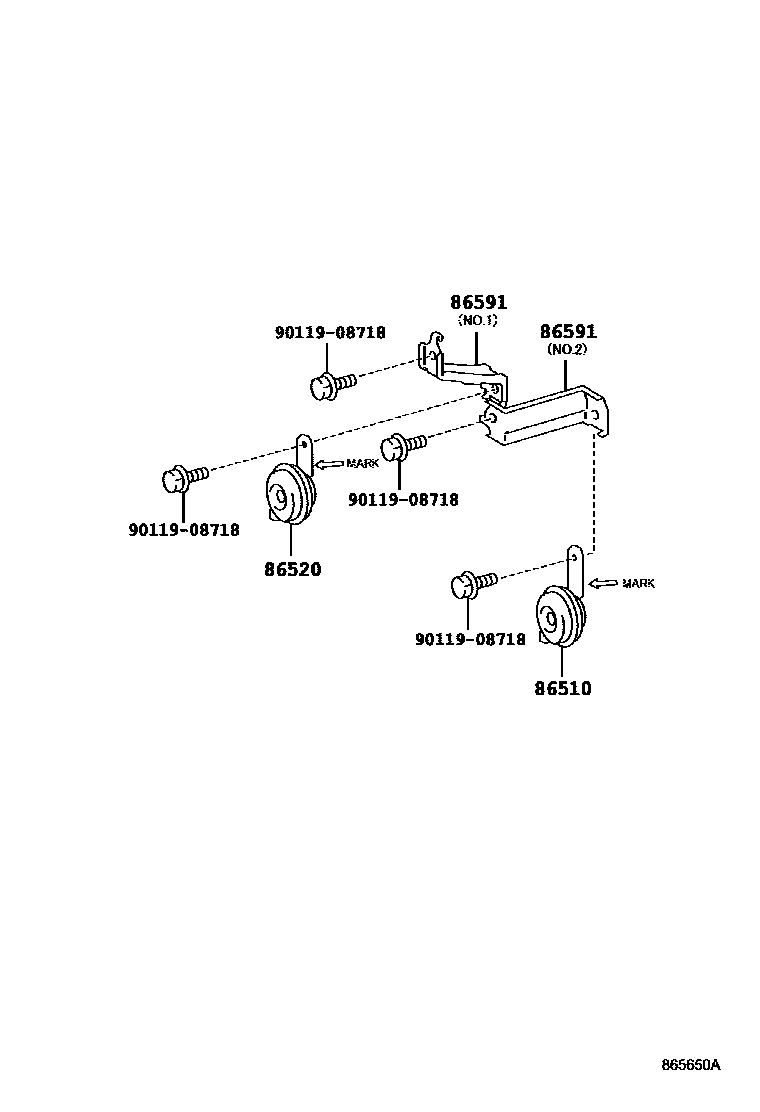

HORN
86510HORN ASSY, HIGH PITCHED
main86510-26120iTRH223..4FC..GL;TRH223..5F..GL..GCC;KDH212,220,222,TRH22#..SA;KDH222,TRH213..(10S,16S)..5F..GL201312-201512
MARK=86510-26120
main86510-26121iKDH220,TRH221..06S;TRH223..5F..GL..GCC;TRH223..(13S,16S)..4FC..GL; KDH222..5F..GL;KDH220,TRH22#..(03S,14S)..SA201601-201902
MARK=86510-26121
86520HORN ASSY, LOW PITCHED
MARK=86520-0L010
main86520-26180iKDH200..LHD..4D;KDH202,220,222..LHD..STD..GEN; KDH202,222..LHD..(15S,16S)..STD..GEN; KDH212..5F..GL..GEN;KDH200..LHD..5D..GEN;KDH202,222..LHD..(12S,16S)..STD..GEN; TRH201,223..LHD..STD..GEN; TRH221..SG;LH20#,212,222;KDH202,TRH203..RHD..GEN;KDH200,202,212,220,222,TRH201,203,213,22#..GCC,SA;KDH201,203,213,223,TRH213,223..LHD..(02S,03S,10S,12S,13S)..GEN; TRH221..SP..GEN;TRH223..5F..GL..GEN; TRH223..5F..GL..GEN;KDH200,220..LHD..5D..GEN;KDH202,212,222..LHD..(13S,15S,16S)..STD..GEN201312-201512
CENTRAL AMERICA(4COUNTRY) SPEC,MARK=86520-26180; COSTA RICA SPEC,MARK=86520-26180; EL SALVADOR SPEC,MARK=86520-26180; MARK=86520-26180; MEXICO SPEC,MARK=86520-26180; PERU SPEC,MARK=86520-26180; VENEZUERA SPEC,MARK=86520-26180
MARK=86520-26181
main86520-26200iKDH222..GL;TRH223..LHD;KDH202,TRH203..RHD;KDH202,222,TRH203..STD..GCC;KDH200,TRH201,221..5D..(GCC,SA);KDH203,LH20#,222,TRH213..03S,12S,15S,16S; TRH223..RHD..GEN;KDH202,TRH203..LHD..GEN;KDH200,222,TRH201,221..GEN202204-202305
HORN-FLAT TYPE1(REINFORCED)
HORN-FLAT TYPE1(REINFORCED)
MARK=86520-26210
MARK=86520-V3010
MARK=86520-V3010
86591BRACKET, HORN
NO.1
NO.2
NO.2
9011908718
main90119-08718
4 parts on this diagram · 1 diagram in section
