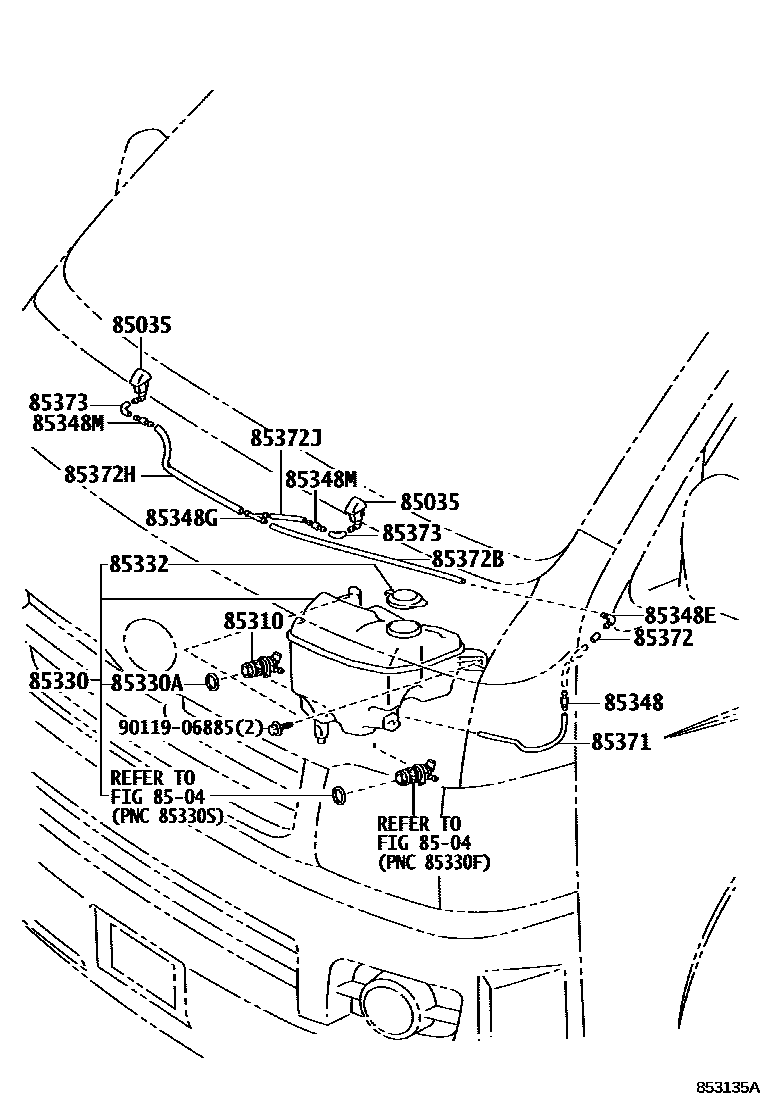

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
DRIVER SIDE
PASSENGER SIDE
main85381-26250iTRH221..GCC;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH21#,220,223,LH212,TRH213..LHD201312
DRIVER SIDE
PASSENGER SIDE
8504REAR WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
main85315-26120iTRH223..STD..(ARL,SA);KDH223..RHD..5F..(ARL,GEN);KDH201,221,TRH201..ARL,MA,SA,TH;KDH202,220,222,LH212,222,TRH203,221..RHD..(02S,06S,15S,16S)201712
85330ABUSH, WINDSHIELD WASHER JAR
main85336-60300iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
85332CAP, WINDSHIELD WASHER JAR
main85316-34050iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85348-14390iKDH212..LHD;TRH223..4FC..GL;TRH213..LHD..GEN;TRH213,221..GCC,TH;KDH223..4FC..(GEN,TH);KDH222..16S..(GEN,SA);TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH223..5F..(ARL,GEN,KEN,RUS,VN);GDH223,KDH213,220,221,LH212..ARL,GEN;KDH220,LH222,TRH221..RHD..(02S,06S,16S)201312
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85349-89122×2iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90446-07001iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA); KDH223..4FC..ARL;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA);KDH220,222..(03S,14S)..SA201312-201902
L=1800(*H,L=320); L=1800(*H,L=320),REAR WINDOW WIPER-WITH(INTERMITTENT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
L=1450(*H,L=60)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90446-07001iKDH212..SA;TRH213..RHD..5F; LH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..(GEN,SA)201312-201901
L=1800(*H,L=540); L=1800(*H,L=620)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90446-07001iKDH212..SA;TRH213..RHD..5F; LH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..(GEN,SA)201312-201901
L=1800(*H,L=430); L=1800(*H,L=540)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main90446-07001iKDH212..SA;TRH213..RHD..5F; LH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..(GEN,SA)201312-201901
L=1800(*H,L=170); L=1800(*H,L=230)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85336-12230×2iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
L=15
9011906885
main90119-06885
17 parts on this diagram · 2 diagrams in section
