ABS & VSC

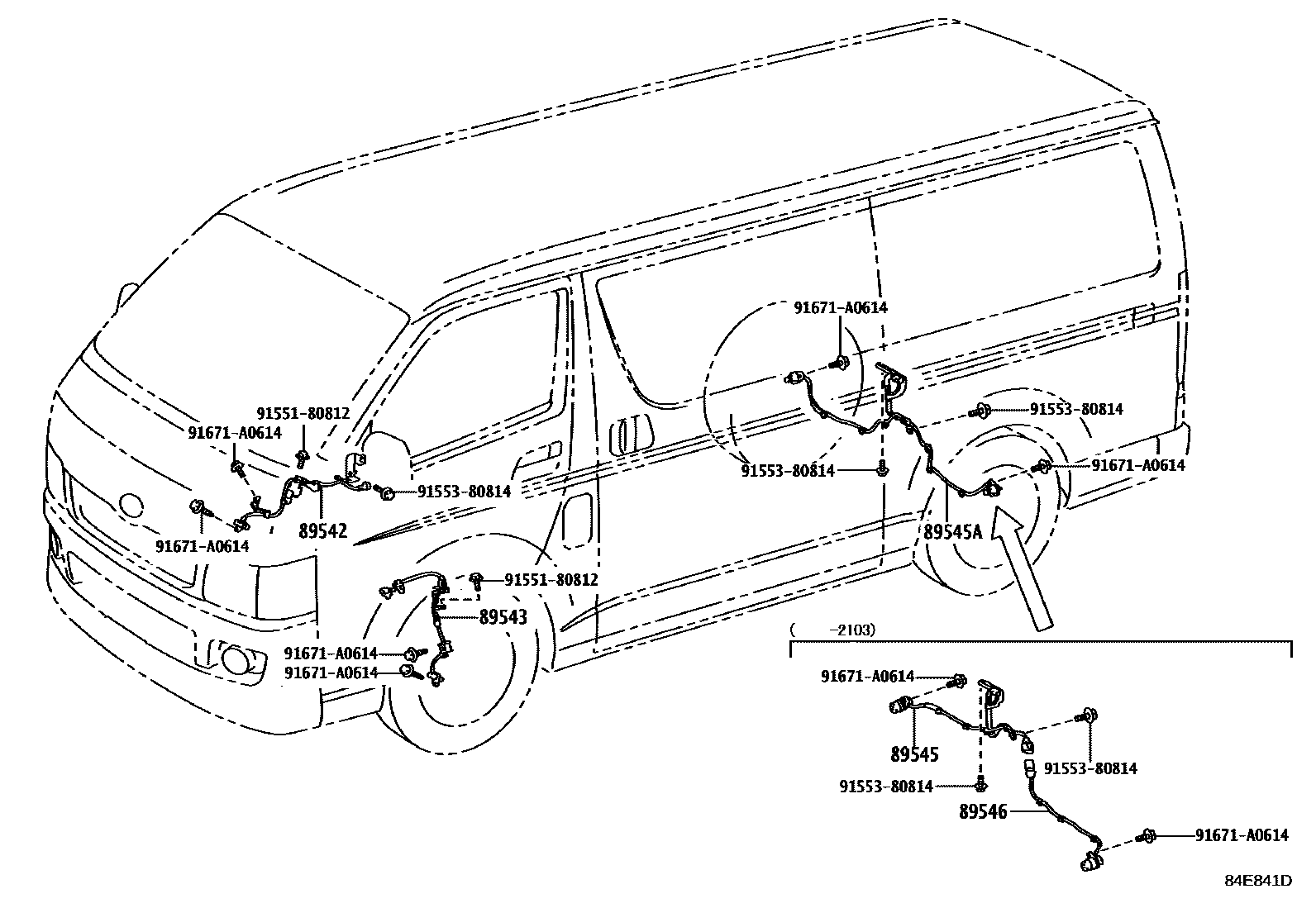

89542SENSOR, SPEED, FRONT RH
main89542-26140iKDH222..GL..GCC; KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH); KDH223,TRH213..(10S,12S)..GEN; LH222..RHD;KDH222..GL..GCC;KDH203..12S..GEN;KDH222..RHD..GL..GEN; TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)201312-201501
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY); ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT; EGYPT SPEC; EGYPT SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); EGYPT SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY); SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main89542-26160iKDH200,212,TRH213..SA; LH200..5D;KDH200,TRH213..RHD..GEN; TRH203..4FC;KDH200..LHD..4D201501-201901
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY); SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
89543SENSOR, SPEED, FRONT LH
main89543-26150iKDH222..GL..GCC; KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH); KDH223,TRH213..(10S,12S)..GEN; LH222..RHD;KDH222..GL..GCC;KDH203..12S..GEN;KDH222..RHD..GL..GEN; TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)201312-201501
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY); ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT; EGYPT SPEC; EGYPT SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); EGYPT SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY); SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main89543-26170iKDH200,212,TRH213..SA; LH200..5D;KDH200,TRH213..RHD..GEN; TRH203..4FC;KDH200..LHD..4D201501-201901
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY); SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
89545SENSOR, SPEED, REAR RH
main89545-26110iKDH200..SA;TRH201..RHD..5F;KDH201,203..02S,06S; KDH203..12S..GEN; TRH201..LHD;KDH200,201,202,LH20#,TRH203..(03S,12S,15S)..(GCC,GEN,TH)201312-201501
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY); SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main89545-26120iKDH222..GL..GCC; KDH223,TRH213..(10S,12S)..GEN; LH212,222..LHD;KDH222..LHD..GL..GEN;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH212,220,TRH213,221..(03S,13S,16S)..(GCC,GEN); LH222..RHD;KDH222..GL..GCC;KDH222..RHD..GL..GEN; TRH223..4FC..GEN;KDH21#,221,222,223,TRH213..02S,03S,10S,11S,12S,14S;KDH220,TRH22#..(02S,03S,06S,12S,14S)..5F..(ARL,RUS,SA)201312-201501
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY); ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT; EGYPT SPEC; EGYPT SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); EGYPT SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY); SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY); SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
89545ASENSOR, SPEED, REAR
EGYPT SPEC&SRS AIR BAG-WITHOUT
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
89546SENSOR, SPEED, REAR LH
main89546-26120iKDH200..SA;TRH201..RHD..5F;KDH201,203..02S,06S; KDH203..12S..GEN; TRH201..LHD;KDH200,201,202,LH20#,TRH203..(03S,12S,15S)..(GCC,GEN,TH)201312-201501
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY); SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main89546-26130iKDH222..GL..GCC; KDH223,TRH213..(10S,12S)..GEN; LH212,222..LHD;KDH222..LHD..GL..GEN;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH212,220,TRH213,221..(03S,13S,16S)..(GCC,GEN); LH222..RHD;KDH222..GL..GCC;KDH222..RHD..GL..GEN; TRH223..4FC..GEN;KDH21#,221,222,223,TRH213..02S,03S,10S,11S,12S,14S;KDH220,TRH22#..(02S,03S,06S,12S,14S)..5F..(ARL,RUS,SA)201312-201501
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY); ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT; EGYPT SPEC; EGYPT SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); EGYPT SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY); SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY); SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
9155180812
main91551-80812
9155380814
main91553-80814
91671A0614
main91671-A0614
8 parts on this diagram · 1 diagram in section
