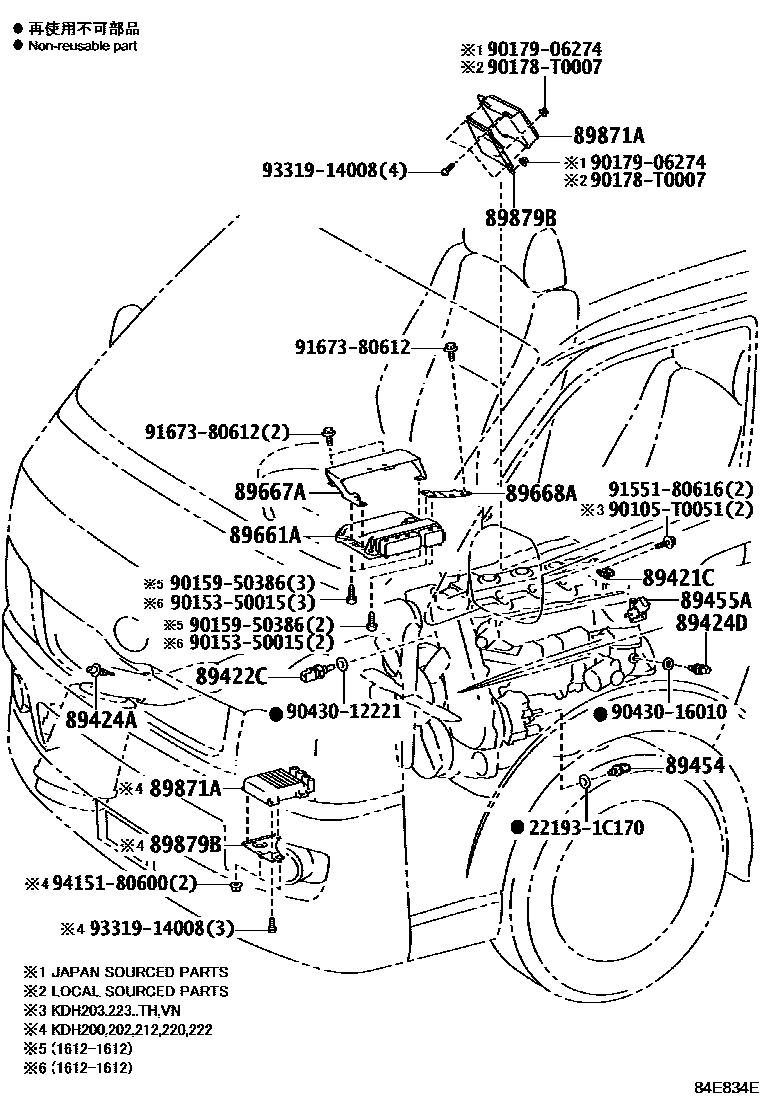

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-12150iLH200..5D;LH222..RHD201312-201901

main89421-71020iKDH222..GL..SA;KDH222..STD..GCC201911

main89421-71030iKDH223..5F..TH201312-201904

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iLH20#..4D;LH222..LHD201312-202506

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010iLH20#..4D;LH222..LHD201312-202506

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iKDH223..5F..TH201312-201904

89454SENSOR, FUEL TEMPERATURE

main89454-20010iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC201312-201902

main89454-60010iLH200..5D201908-202506

89455ASENSOR, EGR VALVE POSITION

main89455-35020iKDH200,212,220..SA201911-202107

89661ACOMPUTER, ENGINE CONTROL

main89661-0L090iKDH203..TH201401-201701

main89661-0L100iKDH200,202..MA201401-201501

main89661-0L101iKDH200,202..MA201501-202005

main89661-0L120iKDH203..TH201701-201712

main89661-0L121iKDH203..TH201801-201904

DENSO

main89661-0L210iKDH200..MA202005-202312

DENSO

main89661-26F60iLH20#,212,222201312-201501

main89661-26K40iLH200..5D201908-202005

main89661-26M10iKDH212,222..SA201312-201612

main89661-26M20iKDH200,202,222..RHD..4D..STD..GEN; KDH222..5F..(GCC,GEN);KDH200,202,212,220..STD..(GCC,GEN)201312-201612

PAKISTAN SPEC

main89661-26M30iKDH212,222..4FC201312-201906

main89661-26M40iKDH223..RUS201312-201501

main89661-26M50iKDH213,223..COM..4FC..(GEN,TH)201312-202004

main89661-26M90iKDH203..12S..GEN201312-201712

main89661-26N00supersedes 89661-26U10iKDH223..4FC..ARL201606-201902

main89661-26N10iKDH201..02S..GEN201407-201901

main89661-26P00iKDH200,220..SA202005-202107

DENSO

main89661-26P10supersedes 89661-26P00iKDH200,222..STD..GCC202401-202506

DENSO

main89661-26P20iKDH201,203,223..4D..(03S,15S,16S)..5F202005-202506

DENSO

main89661-26Q70iKDH212..SA202005-202107

DENSO

main89661-26Q80iKDH201,203..RHD..5F202005-202301

DENSO

main89661-26Q90iKDH201,223..4FC202005-202301

DENSO

main89661-26T80iGDH201201701-201901

main89661-26T90iKDH222..STD..SA201612-202005

main89661-26U00iKDH201,203..RHD..(02S,03S)..5F..GEN201701-202005

main89661-26U10iKDH201..03S..4FC201701-202005

main89661-26V20supersedes 89661-26M10iKDH200,222..GCC201612-201712

main89661-26V30iKDH223..RUS201701-201711

main89661-26V31iKDH223..5F..TH201712-201904

DENSO

main89661-2F010iLH20#,222202005-202506

DENSO

main89661-2F310iKDH222..SA202108-202506

DENSO

main89661-2F340iGDH201,223202302-202410

DENSO

main89661-2F580iGDH201,223202410-202506

DENSO

main89661-26M00iKDH222..LHD..STD..GEN; KDH222..RHD..STD..GEN201312-201902

NEPAL SPEC; PERU SPEC

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-26170iKDH200,212,220..SA201911-202107

main89667-26210iGDH201,223201701

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-26150iLH200..5D;LH222..RHD;KDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

main89668-26190iGDH201,223201701

89871ADRIVER, INJECTOR

main89871-25010supersedes 89871-26030iKDH203..15S;KDH223..4FC..TH;KDH223..GEN,KEN,VN;KDH201..4D..5F..(GEN,MA,TH);KDH203,213..COM..(11S,12S,13S)..GL201312

main89871-26030iKDH223..RUS201501-201701

main89871-71010iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC201312-201902

89879BBRACKET, INJECTOR DRIVER

main89879-26020iKDH200..LHD..4D;KDH200..RHD..GEN201908

main89879-26050supersedes 89879-26060iKDH223..RUS201312-201501

main89879-26060iKDH223..RUS201501-201701

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

90105T0051

main90105-T0051

9015350015

main90153-50015

9015950386

main90159-50386

90178T0007

main90178-T0007

9017906274

main90179-06274

9043012221

main90430-12221

9043016010

main90430-16010

9155180616

main91551-80616

9167380612

main91673-80612

9331914008

main93319-14008

9415180600

main94151-80600

23 parts on this diagram · 3 diagrams in section
