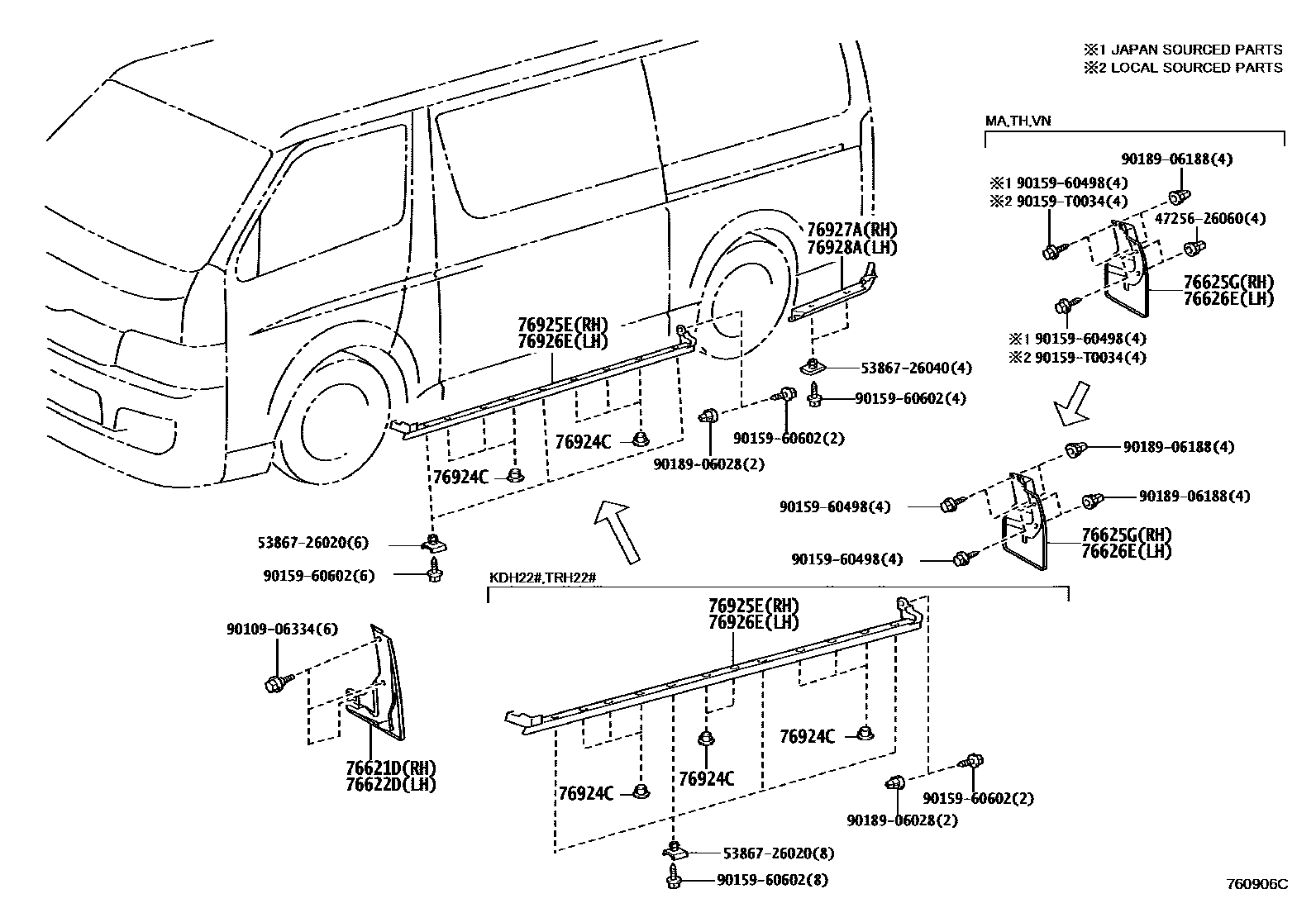

SPOILER & SIDE MUDGUARD
76621DMUDGUARD, FRONT FENDER, RH
MUD GUARD-WITH
76622DMUDGUARD, FRONT FENDER, LH
76625GMUDGUARD, QUARTER PANEL, REAR RH
BLACK,058 ,1E7 ,8P4
main76625-26050-C0iKDH220,223,TRH221..(06S,12S)..STD; KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC; KDH222,TRH223..GL..SA; KDH222..GL..GCC;TRH223..5F..GL..GEN; KDH223..RUS;TRH223..13S; TRH223..13S201312-201902
BLACK,058 ,1E7 ,2JZ ,2QD ,4R4 ,593 ,8P4; MUD GUARD-WITH,BLACK,058 ,070 ,1E7 ,2JZ ,2QD ,4R4 ,593 ,8P4; MUD GUARD-WITH,BLACK,058 ,1E7 ,2JZ ,2QD ,4R4 ,593 ,8P4; MUD GUARD-WITH,BLACK,058 ,1E7 ,599 ,6S3 ,8P4; MUD GUARD-WITH,BLACK,058 ,1E7 ,599 ,8P4; VENEZUERA SPEC&MUD GUARD-WITHOUT,BLACK,058 ,1E7 ,2JZ ,2QD ,4R4 ,593 ,8P4
76626EMUDGUARD, QUARTER PANEL, REAR LH
BLACK,058 ,1E7 ,8P4
BLACK,058 ,1E7 ,209 ,3R9 ,599 ,6S3 ,8P4; BLACK,058 ,1E7 ,2JZ ,593 ,8P4
76924CRETAINER, SIDE MUDGUARD, NO.2
main76924-26050×8iKDH223,TRH223..(10S,12S,13S)..GL; TRH221..SP..GEN; TRH223..13S; TRH223..5F..GEN201312-201902
COLD AREA SPEC; VENEZUERA SPEC
76925EPROTECTOR, SIDE MUDGUARD, FRONT RH
main76925-26060iKDH223,TRH223..(10S,12S,13S)..GL; TRH221..SP..GEN;TRH223..LHD..5F..GEN; TRH223..13S201312-201902
COLD AREA SPEC; VENEZUERA SPEC
BODY COLOR-MONO-TONE SOLID&MEXICO SPEC; BODY COLOR-MONO-TONE(METALLIC), EXCEPT COLOR NO.058&MEXICO SPEC
76926EPROTECTOR, SIDE MUDGUARD, FRONT LH
BODY COLOR-TWO-TONE(METALLIC); COLD AREA SPEC
COLD AREA SPEC
76927APROTECTOR, SIDE MUDGUARD, REAR RH
BODY COLOR-TWO-TONE(METALLIC)
76928APROTECTOR, SIDE MUDGUARD, REAR LH
BODY COLOR-TWO-TONE(METALLIC)
4725626060GROMMET, CAP
main47256-26060
5386726020SEAL, FRONT FENDER TO COWL SIDE, LH
main53867-26020
5386726040SEAL, FRONT FENDER TO COWL SIDE, LH
main53867-26040
9010906334
main90109-06334
9015960498
main90159-60498
9015960602
main90159-60602
90159T0034
main90159-T0034
9018906028
main90189-06028
9018906188
main90189-06188
18 parts on this diagram · 1 diagram in section
