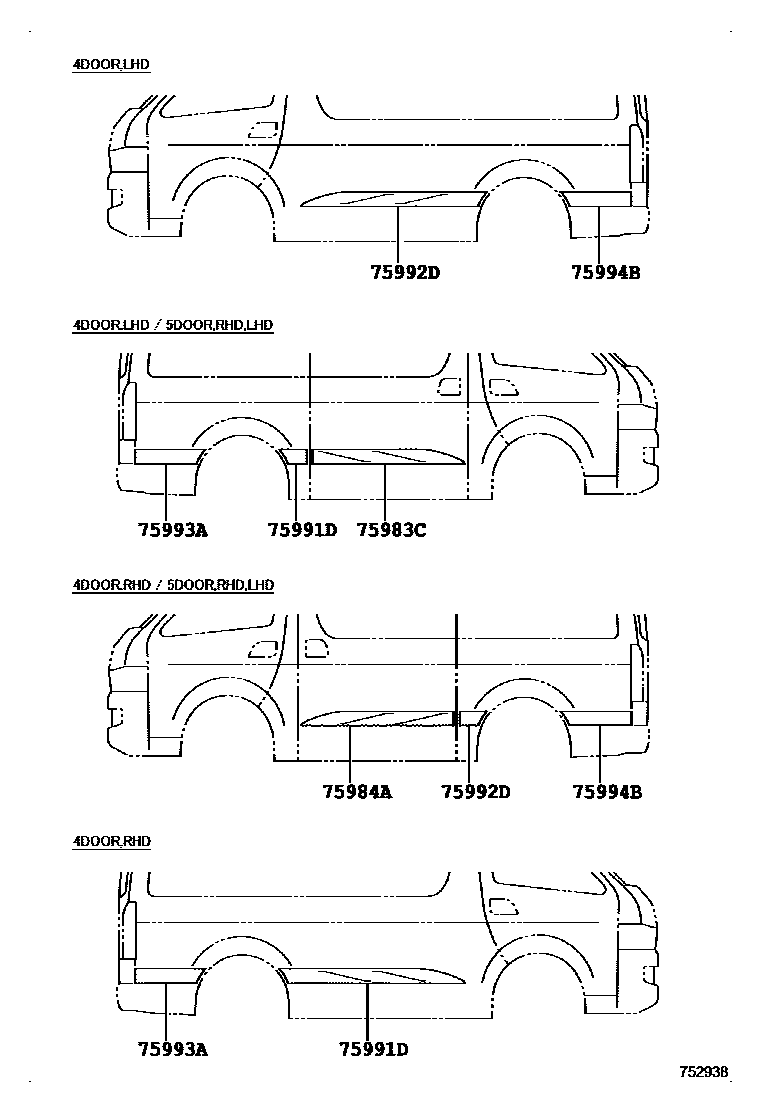

BODY STRIPE

0001 1BODY STRIPE 0002 1BODY STRIPE 0003 1BODY COLOR-TWO-TONE 0004 1BODY COLOR-TWO-TONE

75983CSTRIPE, SLIDE DOOR, RH

main75983-26220-E0iKDH213..GEN201712-201906

BODY COLOR-TWO-TONE(METALLIC),BEIGE ME.,2QD

main75983-26220-F0iKDH21#,TRH213..GL..GEN201312-201712

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ

main75983-26280iKDH222..GCC;KDH220..03S..SA;TRH223..STD..GCC;TRH223..5F..GL..GEN;TRH221..03S..(GEN,SA)201312-201902

BODY STRIPE-WITH

75984ASTRIPE, SLIDE DOOR

main75984-26520-E0×4iKDH213..11S..GEN201712-201906

BODY COLOR-TWO-TONE(METALLIC),BEIGE ME.,2QD

main75984-26520-F0×2iKDH21#,TRH213..4D..GL; KDH21#..11S..GEN201312-201712

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ

main75984-26580iKDH223..5F..TH201312-201904

BODY STRIPE-WITH

75991DSTRIPE, QUARTER, FRONT RH

main75991-26580-E0iKDH213..GEN201712-201906

BODY COLOR-TWO-TONE(METALLIC),BEIGE ME.,2QD

main75991-26580-F0iKDH21#,TRH213..GL..GEN201312-201712

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ

main75991-26620iKDH200..MA201312-202312

BODY STRIPE-WITH

main75991-26630iLH20#..LHD;TRH200..5F;TRH203..5F..GCC201312-202506

BODY STRIPE-WITH

main75991-26640iTRH223..GL..SA201911-202107

BODY STRIPE-WITH

main75991-26650iTRH221..GCC;TRH221..02S,06S;TRH223..4FC..GL;KDH222..LHD..GEN;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH220,223..(06S,12S,14S)..(GEN,RUS,SA)201312

BODY STRIPE-WITH

75992STRIPE, QUARTER, LH NO.1

main75992-26400-E0iKDH212,TRH213..SA201712-201901

BODY COLOR-TWO-TONE(METALLIC),BEIGE ME.,2QD

main75992-26400-F0iKDH212..11S201312-201511

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ

75992DSTRIPE, QUARTER, FRONT LH

main75992-26390-E0iKDH212,TRH213..SA201911-202005

BODY COLOR-TWO-TONE(METALLIC),BEIGE ME.,2QD

main75992-26390-F0iTRH213..SA;KDH212..10S,11S;KDH213..11S..GEN201312-201712

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ

main75992-26430iKDH200..RHD..GEN201908

BODY STRIPE-WITH

main75992-26440iTRH203..4FC;KDH200..LHD..4D201908

BODY STRIPE-WITH

main75992-26450iKDH220,TRH223..03S,14S201911-202107

BODY STRIPE-WITH

main75992-26460iTRH221..SG;KDH222,TRH223..GCC201911

BODY STRIPE-WITH

75993ASTRIPE, QUARTER, REAR RH

main75993-26300-E0iKDH213..GEN201712-202005

BODY COLOR-TWO-TONE(METALLIC),BEIGE ME.,2QD

main75993-26300-F0iKDH21#,TRH213..GL..(GEN,SA)201312-201712

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ

main75993-26320iTRH221..SA201904-202312

BODY STRIPE-WITH

75994BSTRIP, QUARTER, REAR LH

main75994-26420-E0iKDH212,TRH213..SA201911-202005

BODY COLOR-TWO-TONE(METALLIC),BEIGE ME.,2QD

main75994-26420-F0iKDH21#,TRH213..GL..(GEN,SA)201312-201712

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ

main75994-26440iTRH213..RHD..GEN201908-202312

BODY STRIPE-WITH

7 parts on this diagram · 4 diagrams in section
