FRONT SEAT & SEAT TRACK

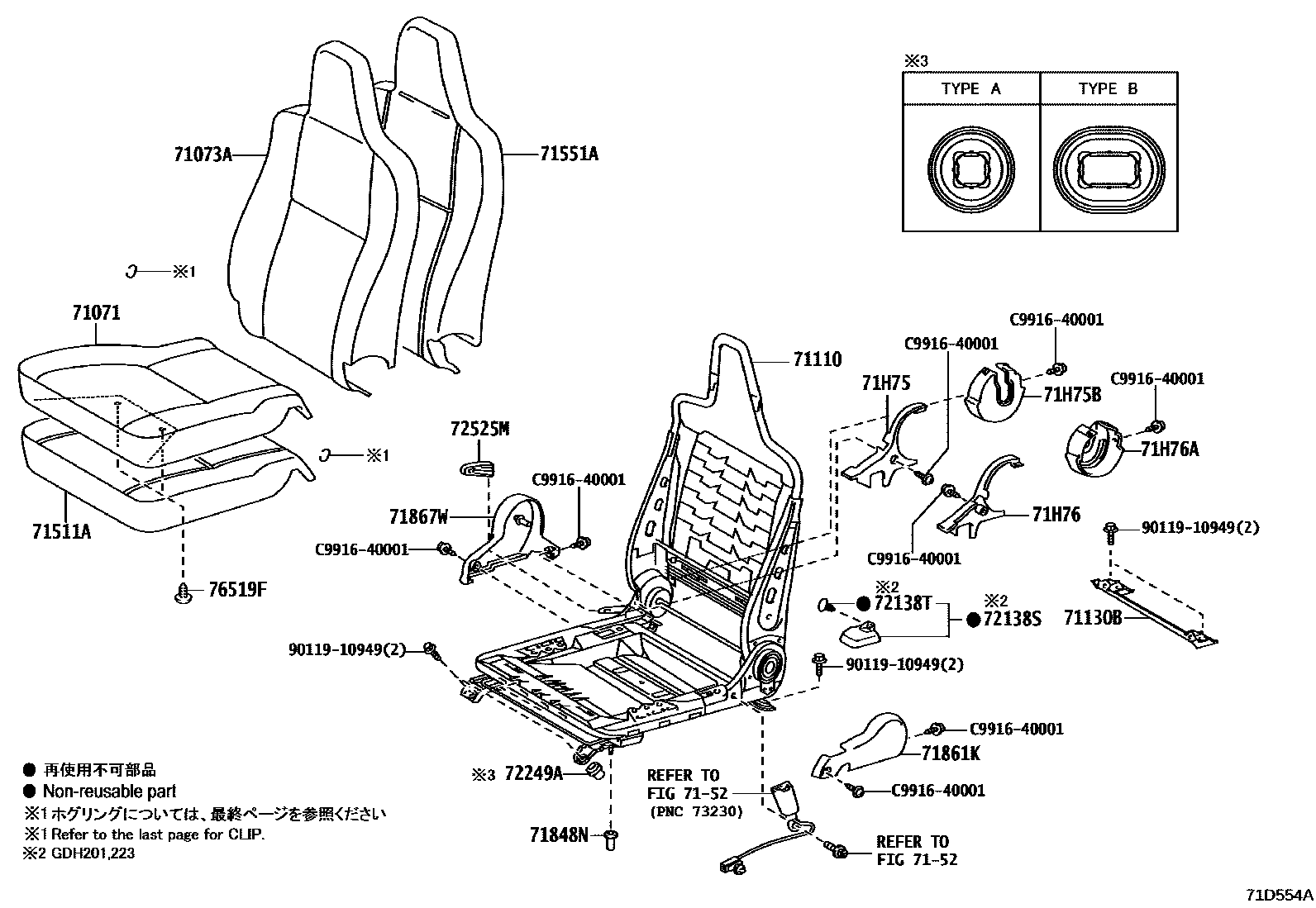

Parts diagram
71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH
main71071-0L051-B2i201401
BLUISH GRAY,TRIM1#
main71071-0L060-B0i201401-201904
BLUISH GRAY,TRIM1#
main71071-26A10-B3supersedes 71071-26A51-B4i201312-202507
DARK GRAY,TRIM1#; SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM,DARK GRAY,TRIM1#; SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1#
main71071-26A31-B3i201312-202506
BLUISH GRAY,TRIM1#
main71071-26A51-B4supersedes 71071-26A31-B3i201312-201901
BLUISH GRAY,TRIM1#
main71071-26C30-B0i201312-201612
DK.GRAY,TRIM1#
main71071-26C50-B0i201312-201901
LT..GRAY,TRIM1#
main71071-26C90-C0i201911-202004
BLACK,TRIM1#
main71071-26D10-B0i201312-201902
LT.GRAY,TRIM1#
main71071-0L070-B0×2supersedes 71071-26A10-B3i201402-201503
CKD PACKAGE(TSAM SOUTH AFRICA),DARK GRAY,TRIM1#
main71071-26A40-B3i201312-201901
SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,DARK GRAY,TRIM1#; SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1#
main71071-26C30-B2i201606-201701
IRAN SPEC&LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-FOR SPACE UP SEAT ONLY,LT. GRAY,TRIM1#; IRAQ SPEC&LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-FOR SPACE UP SEAT ONLY,LT. GRAY,TRIM1#; IRAQ SPEC&LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-FOR SPACE UP SEAT ONLY,LT. GRAY,TRIM1#
main71071-26C50-B1i201605-201701
FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),DARK GRAY,TRIM13; FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),DARK GRAY,TRIM13; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),DARK GRAY,TRIM13; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRP),DARK GRAY,TRIM13; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),DARK GRAY,TRIM13; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS),DARK GRAY,TRIM13
main71071-26C50-B3i201605-201701
FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),LT. GRAY,TRIM14; FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),LT. GRAY,TRIM14; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),LT. GRAY,TRIM14; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRP),LT. GRAY,TRIM14; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),LT. GRAY,TRIM14; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS),LT. GRAY,TRIM14
main71071-26D00-B0supersedes 71071-26C50-B0i201501-201701
EGYPT SPEC&LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-TRICOT&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-FOR SPACE UP SEAT ONLY,DARK GRAY,TRIM1#; EGYPT SPEC&LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-TRICOT&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-FOR SPACE UP SEAT ONLY,DARK GRAY,TRIM1#; SAUDI ARABIA SPEC&LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-TRICOT&FRONT SEATBELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-FOR SPACE UP SEAT ONLY,DARK GRAY,TRIM1#; SAUDI ARABIA SPEC&LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-TRICOT&FRONT SEATBELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-FOR SPACE UP SEAT ONLY,DARKGRAY,TRIM1#
71073ACOVER SUB-ASSY, FRONT SEATBACK, RH
main71027-26041-B4supersedes 71073-26B40-B0i201312-201901
BLUISH GRAY,TRIM1#
main71073-0L041-B2i201401-202312
BLUISH GRAY,TRIM1#
main71073-0L050-B0i201401-201904
BLUISH GRAY,TRIM1#
main71073-26A00-B2supersedes 71027-26041-B4i201312-202301
DARK GRAY,TRIM1#; SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1#; SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1#; SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1#
main71073-26A21-B3i201312-201901
BLUISH GRAY,TRIM1#
main71073-26A53i201512-201906
main71073-26A80-C0i201312-201906
BLACK,TRIM1#
main71073-26B40-B0i201312-202107
BLUISH GRAY,TRIM1#
main71073-26B60-B0i201312-201612
DK.GRAY,TRIM1#
main71073-26B80-B0i201312-201901
LT.GRAY,TRIM1#
main71073-26C00-B0i201312-201902
LT.GRAY,TRIM1#
main71073-0L060-B0supersedes 71073-26A00-B2i201402-201503
CKD PACKAGE(TSAM SOUTH AFRICA),DARK GRAY,TRIM1#
main71073-26A30-B2i201312-202506
SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,DARK GRAY,TRIM1#; SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1#
main71073-26A53-B2supersedes 71073-26B80-B0i201501-201701
EGYPT SPEC&LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-TRICOT&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-FOR SPACE UP SEAT ONLY,DARK GRAY,TRIM1#; EGYPT SPEC&LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-TRICOT&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-FOR SPACE UP SEAT ONLY,DARK GRAY,TRIM1#; SAUDI ARABIA SPEC&LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-TRICOT&FRONT SEATBELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-FOR SPACE UP SEAT ONLY,DARK GRAY,TRIM1#; SAUDI ARABIA SPEC&LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-TRICOT&FRONT SEATBELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-FOR SPACE UP SEAT ONLY,DARKGRAY,TRIM1#
main71073-26B60-B2i201410-201906
LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT BELT-PRETENSIONER:W(*DRP),LT. GRAY,TRIM1#; LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS),LT. GRAY,TRIM1#; LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),LT. GRAY,TRIM1#; LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),LT. GRAY,TRIM1#; LUXURIOUS WGN BASE PACKAGE&SEAT COVER MATERIAL-LEATHER,LT. GRAY,TRIM1#
main71073-26B80-B1i201606-201701
IRAN SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRP),DARK GRAY,TRIM13; IRAQ SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-3 POINT TYPE(FOR 13PERSONS),DARK GRAY,TRIM13; IRAQ SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRP),DARK GRAY,TRIM13; IRAQ SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-3 POINTTYPE(FOR 13 PERSONS),DARK GRAY,TRIM13; IRAQ SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS),DARK GRAY,TRIM13
main71073-26B80-B3i201605-201701
FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),LT. GRAY,TRIM14; FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),LT. GRAY,TRIM14; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),LT. GRAY,TRIM14; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRP),LT. GRAY,TRIM14; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS)&REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS),LT. GRAY,TRIM14; SAUDI ARABIA SPEC&FRONT SEAT BELT-PRETENSIONER:W(*DRS) & W/O(*PAS),LT. GRAY,TRIM14
71110FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
main71110-0L040i201401-201904
main71110-0L060i201801-201904
main71110-26011supersedes 71110-26052i201312-202507
FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM; SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM
main71110-26021supersedes 71110-26091i201312-201901
main71110-26032i201312
TUNISIA SPEC&AMBURANCE BASE
main71110-26040i201701-201901
main71110-26052i201312
main71110-26091i201312-201906
main71110-26120i201407-202507
main71110-26130i202302
main71110-0L050supersedes 71110-26011i201402-201503
CKD PACKAGE(TSAM SOUTH AFRICA)
main71110-26061i201312-202506
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM; SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM
71130BLEG ASSY, FRONT SEAT, RH
main71130-26110i201312-201902
71511APAD, FRONT SEAT CUSHION, RH
main71511-0L020i201401-202312
main71511-0L030i201401-201904
main71511-26170supersedes 71511-26180i201908-202312
main71511-26180i201312-202506
main71511-0L040supersedes 71511-26170i201402-201503
CKD PACKAGE(TSAM SOUTH AFRICA)
7152SEAT BELT
→ Go to FIG 71-52
71551APAD, FRONT SEATBACK, RH
main71551-0L030×2i201401-201904
main71551-0L040i201401
main71551-26270supersedes 71551-26290i201312-202506
main71551-26280i201312-201906
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main71551-26290i201312
main71551-0L060×2supersedes 71551-26270i201402-201503
CKD PACKAGE(TSAM SOUTH AFRICA)
71848NCAP, FRONT SEAT ADJUSTER COVER, RH NO.1
main71848-26010i201312-201901
71861KSHIELD, FRONT SEAT CUSHION, INNER RH
main71861-26010i202408-202507
main71861-26010-B1i201312-201901
DK.GRAY,TRIM1#
71867WSHIELD, FRONT SEAT CUSHION, FRONT RH
main71867-26010i202408-202507
main71867-26010-B1i201312-201906
DK.GRAY,TRIM1#
71H75COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)
main71875-26020i202408-202507
main71875-26020-B1i201312-201901
DK.GRAY,TRIM1#
71H75BCOVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEATBACK FRAME)
main71875-26010i202408-202507
main71875-26010-B1i201312-201901
DK.GRAY,TRIM1#
71H76COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)
main71876-26030i202408-202507
main71876-26030-B1i201312-201901
DK.GRAY,TRIM1#
71H76ACOVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEATBACK FRAME)
main71876-26010i202408-202507
main71876-26010-B1i201911
DK.GRAY,TRIM1#
72138SCOVER, SEAT TRACK, LH
main72138-26010i201701
72138TCLIP, SEAT TRACK COVER
main90467-05162-C0i201701
BLACK
72249AGUIDE, SEAT TRACK LOCKING
main72249-26020supersedes 72249-26030i201312-201904
TYPE A:REFER ILLUST.
main72249-26030i201312-201901
TYPE B:REFER ILLUST.
72525MHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-26080i202408-202507
main72525-26080-B1i201911
DK.GRAY,TRIM1#
76519FCLIP, FRONT SEAT CUSHION COVER
main90467-08186×4i201610-201612
3ROOM REFRIGERATOR VAN
main90467-08186-C0×2i201312-201610
3ROOM REFRIGERATOR VAN,BLACK; BLACK; FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),BLACK; FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK; FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,BLACK
main90467-08186-C3×2i201610-201901
BLACK; FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),BLACK; FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK; FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,BLACK
9011910949
main90119-10949
C991640001
mainC9916-40001

21 parts on this diagram · 9 diagrams in section
